Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Tank & Filter) HYDROSTATIC SYSTEM

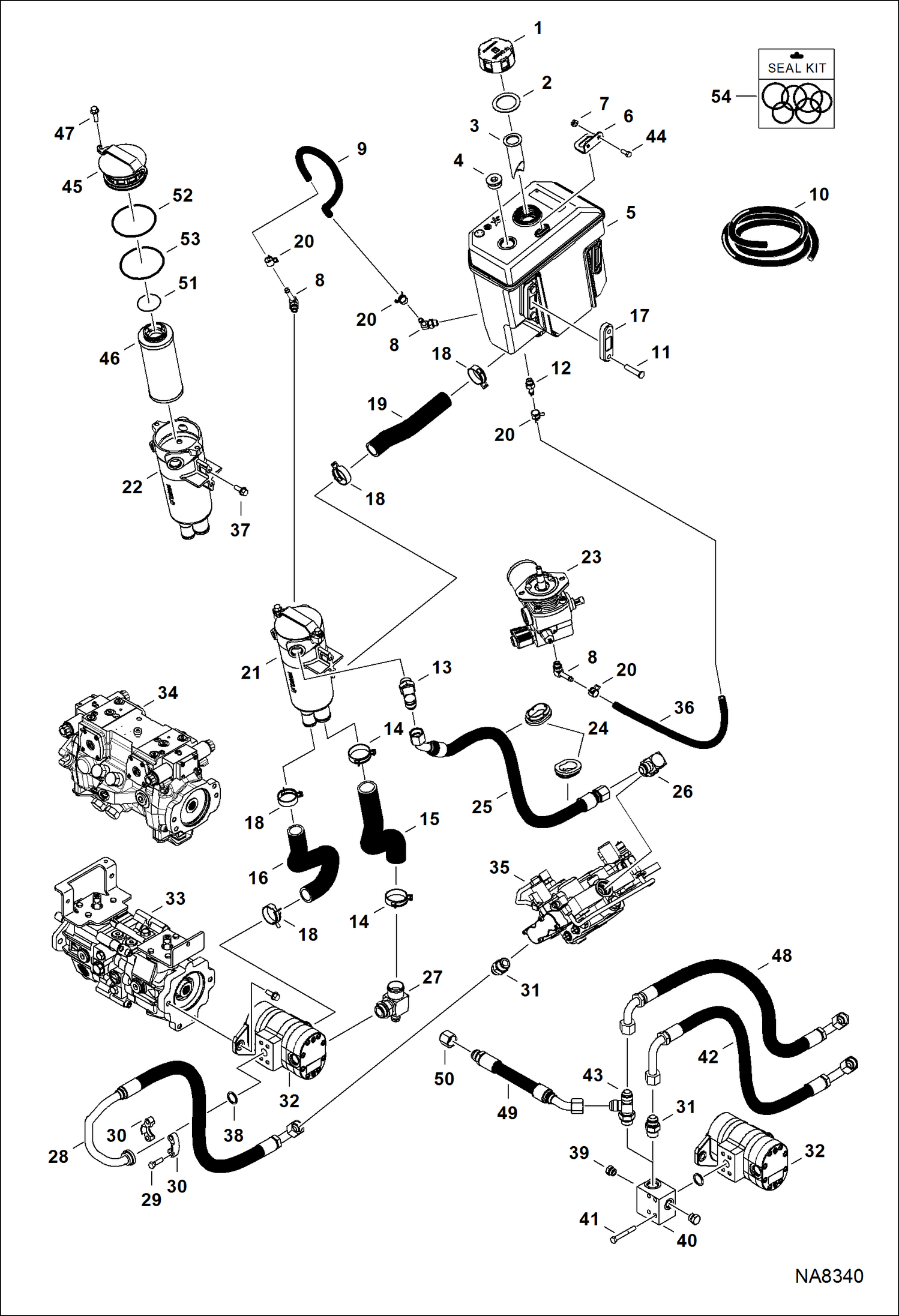

Схема запчастей Bobcat S-Series - HYDROSTATIC CIRCUITRY (Tank & Filter) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6727475

CAP, OIL HYD

2

6700631

GASKET

3

7003487

SCREEN

4

47K10

PLUG

4

79K16

O RING 10

5

7183702

TANK, HYD

6

7199376

BRACKET

7

57D5

NUT

8

6727313

ELBOW

8

79K6

O RING 10

9

HOSE NLA - 508mm (20'') - Order Ref. 10

10

6586251

HOSE bulk - sold per foot

11

BOLT NSS - Order Ref. 17

12

7158632

CONNECTOR

13

17KB1212

FITTING, HYD ELBOW

13

79K12

O RING 10

14

5HM47

CLAMP

15

7183696

HOSE, HYD FORMED

16

7183695

HOSE, HYD FORMED

17

7001421

GUAGE, SIGHT

18

5HM42

HOSECLAMP

19

7189371

HOSE, HYD FORMED

20

5HM16

CLAMP

21

7024035

FILTER, OIL HYD ASSY Ref. 45-47 & 51-53

22

7024036

FILTER, OIL HYD CANISTER

23

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ NA6655

24

7002740

GROMMET

25

7218898

HOSE, HYD

26

7101371

ELBOW

26

79K16

O RING 10

27

7158921

FITTING See Illustration HYDROSTATIC CIRCUITRY/ NA6646

27

79K12

O RING 10

28

7241991

HOSE, HYD

29

17C620

BOLT

30

19J12

CLAMP

31

15KB1212

FITTING, HYD CONNECTOR

31

79K12

O RING 10

32

PUMP, GEAR See Illustration GEAR PUMP/ MS1454 standard flow hydraulics

33

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 manual controls, AHC & ACS

34

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 SJC

35

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6580 manual controls

35

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6582 ACS, AHC & SJC

36

HOSE NLA - 533,4mm (21'') - Order Ref. 10

37

35C616

BOLT 5

38

55K214

O-RING

39

24K6

FITTING

40

7226207

MANIFOLD, OUTLET PUMP

40

VALVE, POWER BOB-TACH See Illustration POWER BOB-TACH/ NA2823

41

17C644

BOLT

42

7219834

HOSE, HYD

43

21KB1212

FITTING, HYD TEE

43

79K12

O RING 10

44

35C512

BOLT

45

7024038

FILTER, OIL HYD CANISTER COVER W/Ref. 52 & 53

46

7024037

FILTER, OIL HYD ELEMENT W/Ref. 51

47

7024429

BOLT

48

7219833

HOSE, HYD

49

7216334

HOSE, HYD

50

36K8

CAP

51

O-RING NSS - Order Ref. 46

52

7025123

O-RING W/Ref. 45 - top

53

7025124

O-RING W/Ref. 45 - bottom

Выбрано товаров: 62
