Запчасти Bobcat S-Series MANUAL LIFT RELEASE SYSTEM HYDRAULIC SYSTEM

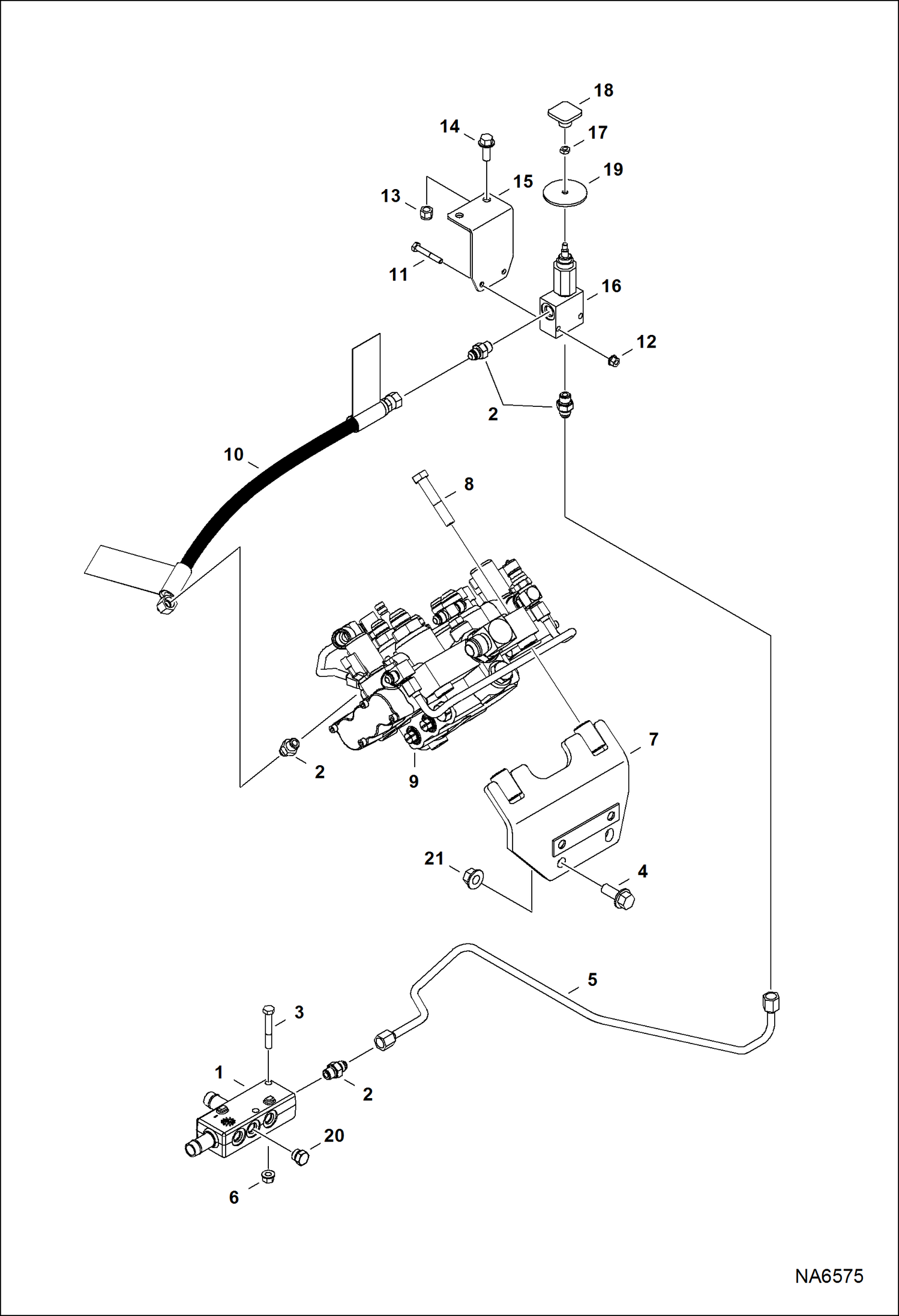

Схема запчастей Bobcat S-Series - MANUAL LIFT RELEASE SYSTEM HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7201981

MANIFOLD, DRAIN CASE

2

15KB0606

FITTING, HYD CONNECTOR

2

79K6

O RING 10

3

17C536

BOLT

4

31C820

BOLT

5

7180719

HOSE, HYD

6

83D5

NUT 5

7

7212098

MOUNT, VALVE

8

17C844

BOLT

9

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6580 - manual controls

9

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6582 - ACS & SJC

10

7180721

HOSE, HYD available only as an assembly W/two danger decals installed

10

7170355

DECAL, DANGER

11

17C428

BOLT

12

83D4

NUT 10

13

59D6

NUT

14

35C616

BOLT 5

15

7149166

MOUNT, BOOM DOWN

16

VALVE ASSY See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 - manual lift release

17

7D4

NUT

18

6737524

KNOB

19

6707101

SEAL neoprene

20

24K5

PLUG

20

FITTING, HYD CONNECTOR See Illustration POWER BOB-TACH/ NA6619

21

83D8

NUT 5

Выбрано товаров: 25
