Запчасти Bobcat S-Series PANELS (Floor Pan) (Manual Controls, AHC & ACS) MAIN FRAME

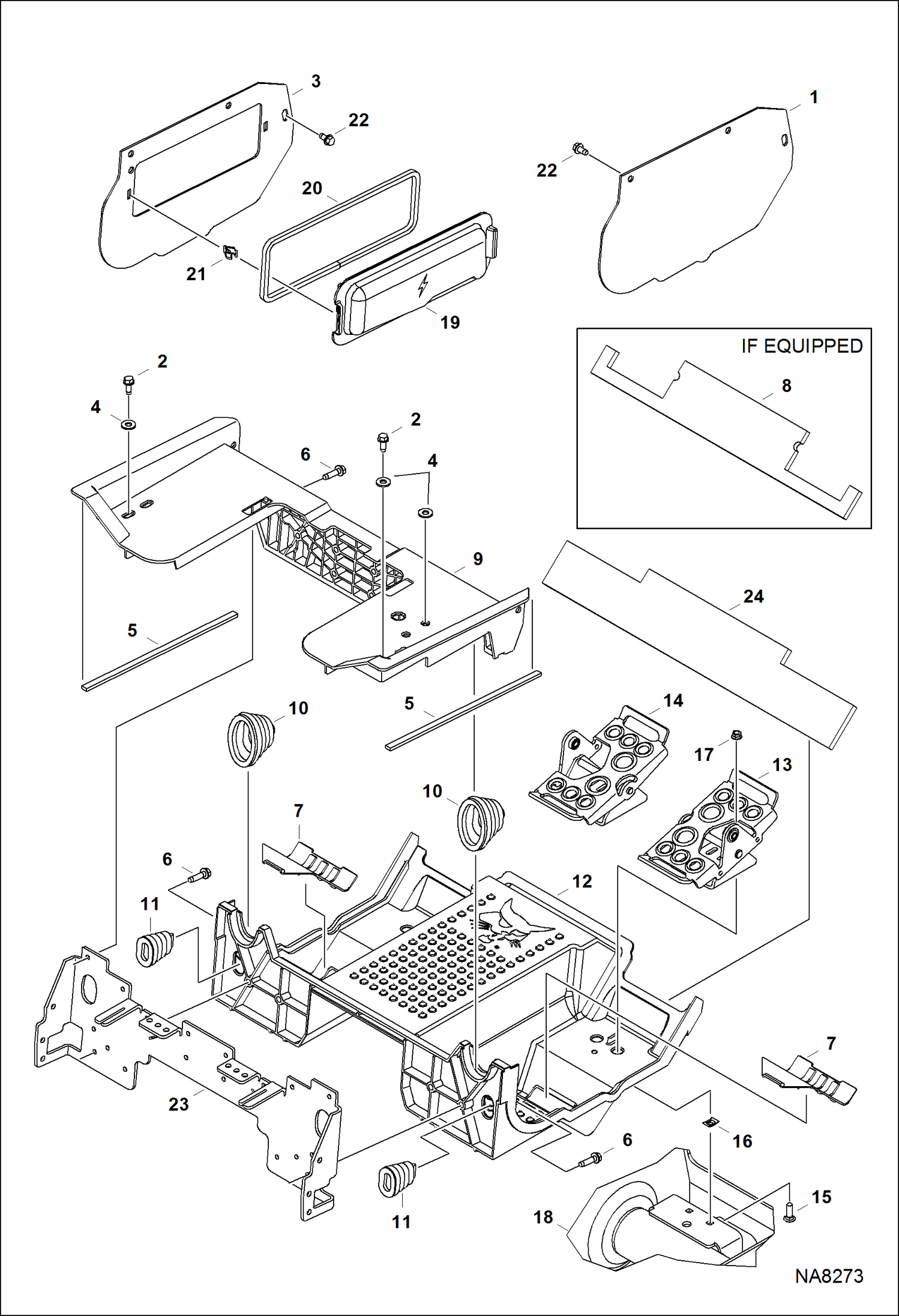

Схема запчастей Bobcat S-Series - PANELS (Floor Pan) (Manual Controls, AHC & ACS) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7210677

PANEL, RH

2

84G3716

SCREW 5

3

7210676

PANEL, LH

4

25E18

WASHER

5

7166196

FOAM, PANEL

6

84G3724

BOLT

7

7164345

COVER, PAN FLOOR

8

7163132

FOAM, FRONT

9

7185169

PANEL, STEERING

10

7147815

BOOT

11

7153503

BOOT

12

7160950

PAN, FLOOR

13

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA6579 - RH

14

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA6579 - LH

15

37C620

BOLT

16

6684033

NUT

17

57D6

NUT 5

18

CHAINCASE See Illustration DRIVE TRAIN/ NA6545

19

7197082

COVER W/Ref. 21 & 22

20

7205329

SEAL, COVER

21

7165333

CLIP

22

84G3712

BOLT 5

23

7189892

MOUNT, BELLCRANK

Выбрано товаров: 23
