Запчасти Bobcat S-Series PANELS (Floor Pan) (Manual Controls, AHC & ACS) MAIN FRAME

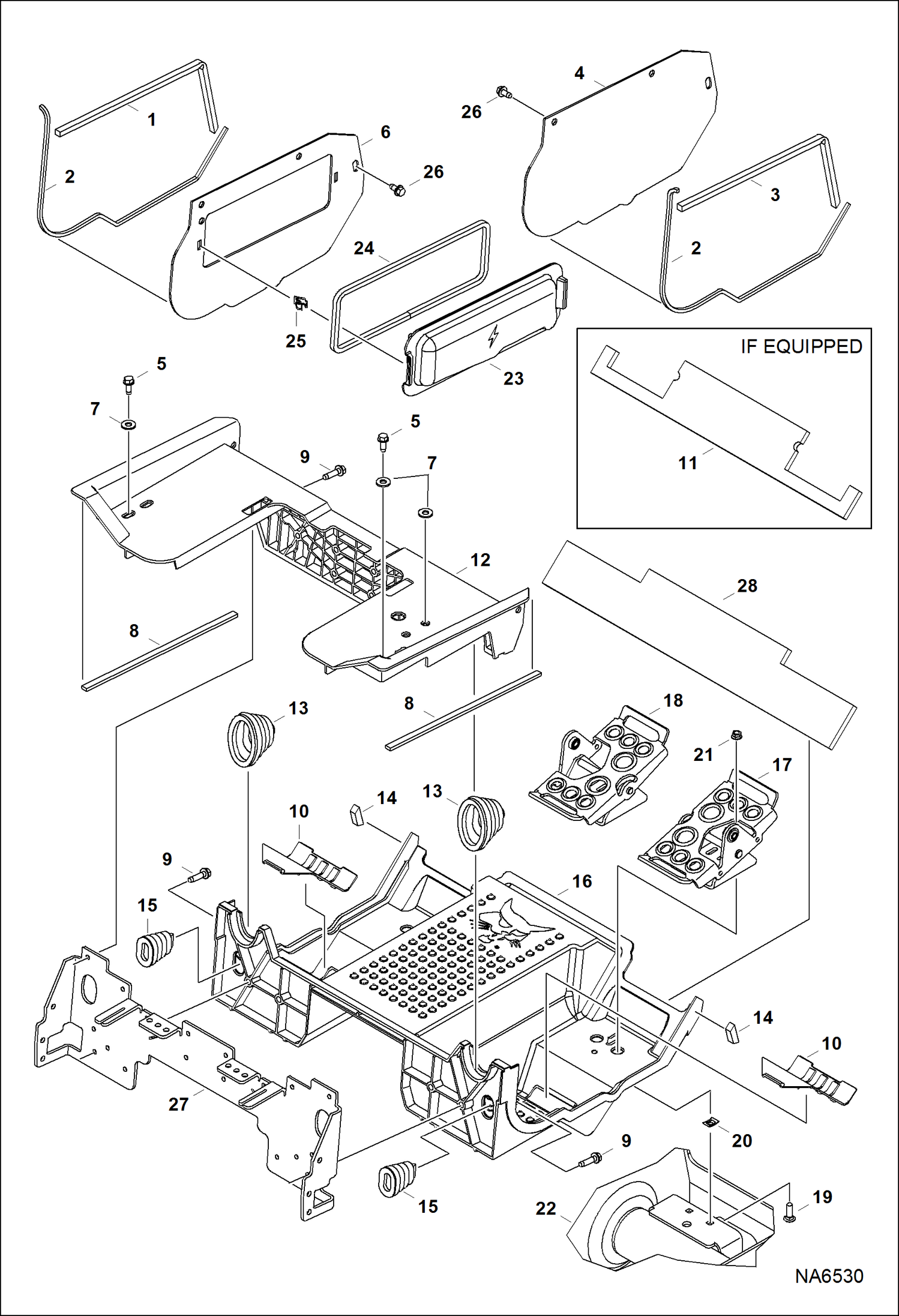

Схема запчастей Bobcat S-Series - PANELS (Floor Pan) (Manual Controls, AHC & ACS) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7166197

FOAM, PANEL LH

2

7166199

FOAM, EDGE

3

7166198

FOAM, PANEL RH

4

7210677

PANEL, RH

5

84G3716

SCREW 5

6

7210676

PANEL, LH

7

25E18

WASHER

8

7166196

FOAM, PANEL

9

84G3724

BOLT

10

7164345

COVER, PAN FLOOR

11

7163132

FOAM, FRONT

12

7185169

PANEL, STEERING

13

7147815

BOOT

14

7166200

FOAM, PAN FLOOR

15

7153503

BOOT

16

7160950

PAN, FLOOR

17

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA6579 - RH

18

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA6579 - LH

19

37C620

BOLT

20

6684033

NUT

21

57D6

NUT 5

22

CHAINCASE See Illustration DRIVE TRAIN/ NA6545

23

7197082

COVER W/Ref. 34 & 35

24

7205329

SEAL, COVER

25

7165333

CLIP

26

84G3712

BOLT 5

27

7189892

MOUNT, BELLCRANK

Выбрано товаров: 27
