Запчасти Bobcat S-Series SEAT & SEAT BELT MAIN FRAME

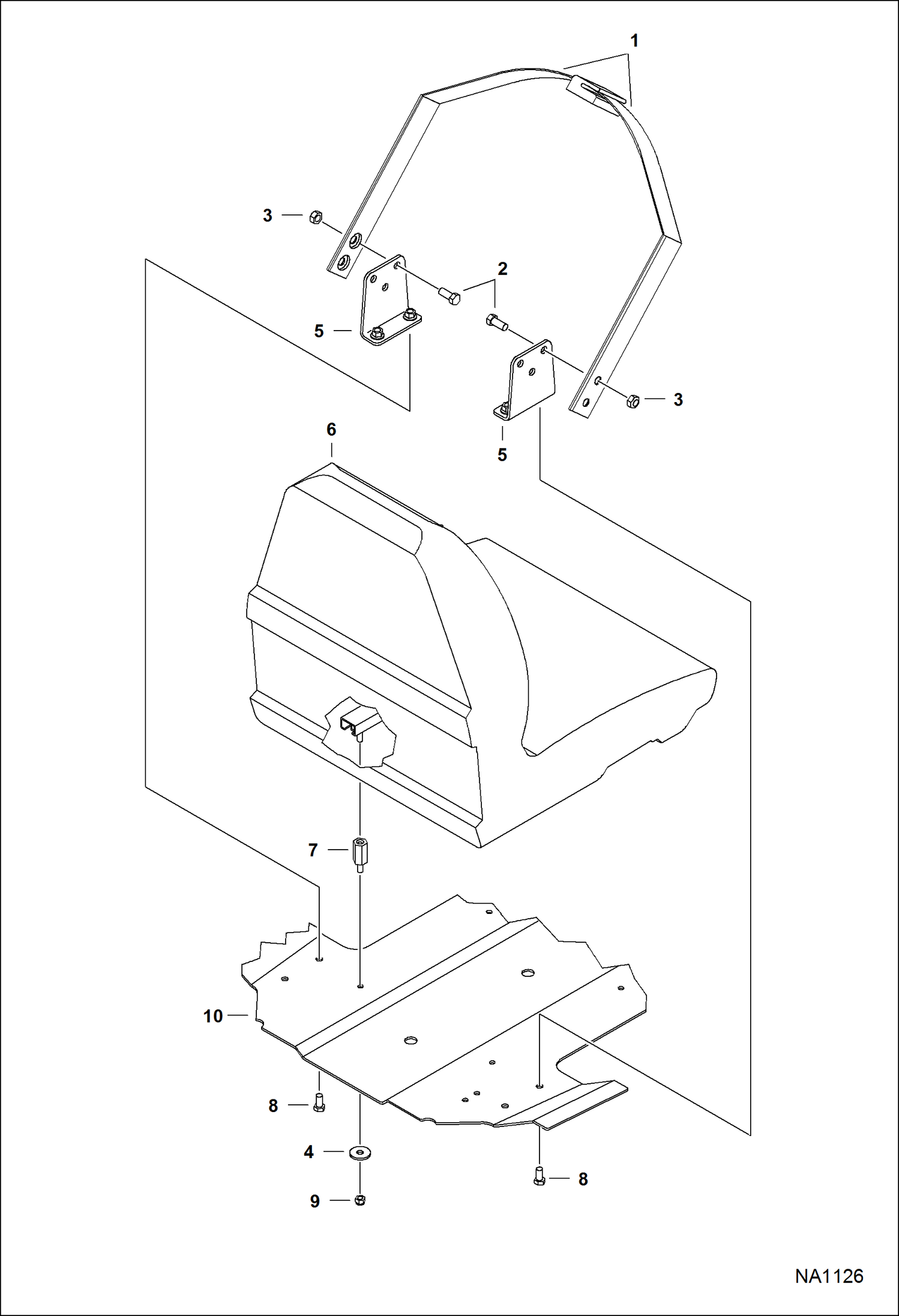

Схема запчастей Bobcat S-Series - SEAT & SEAT BELT MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT BELT See Illustration SEAT BELT - 3''/ NA2043 See Illustration SEAT BELT - 2''/ NA2044 See Illustration SEAT BELT - 3''/ NA2046 lap

2

1C716

SCREW HEX CAP

3

95D7

NUT

4

619021

WASHER, 5

5

7173159

BRACKET, BELT SEAT

6

6669135

SEAT, OPERATOR VINYL

7

7170337

STAND, SEAT

8

43C612

BOLT

9

59D5

NUT 5

10

CAB ASSY See Illustration OPERATOR CAB/ NA6526

Выбрано товаров: 10
