Запчасти Bobcat S-Series ROAD KIT (SJC) ACCESSORIES & OPTIONS

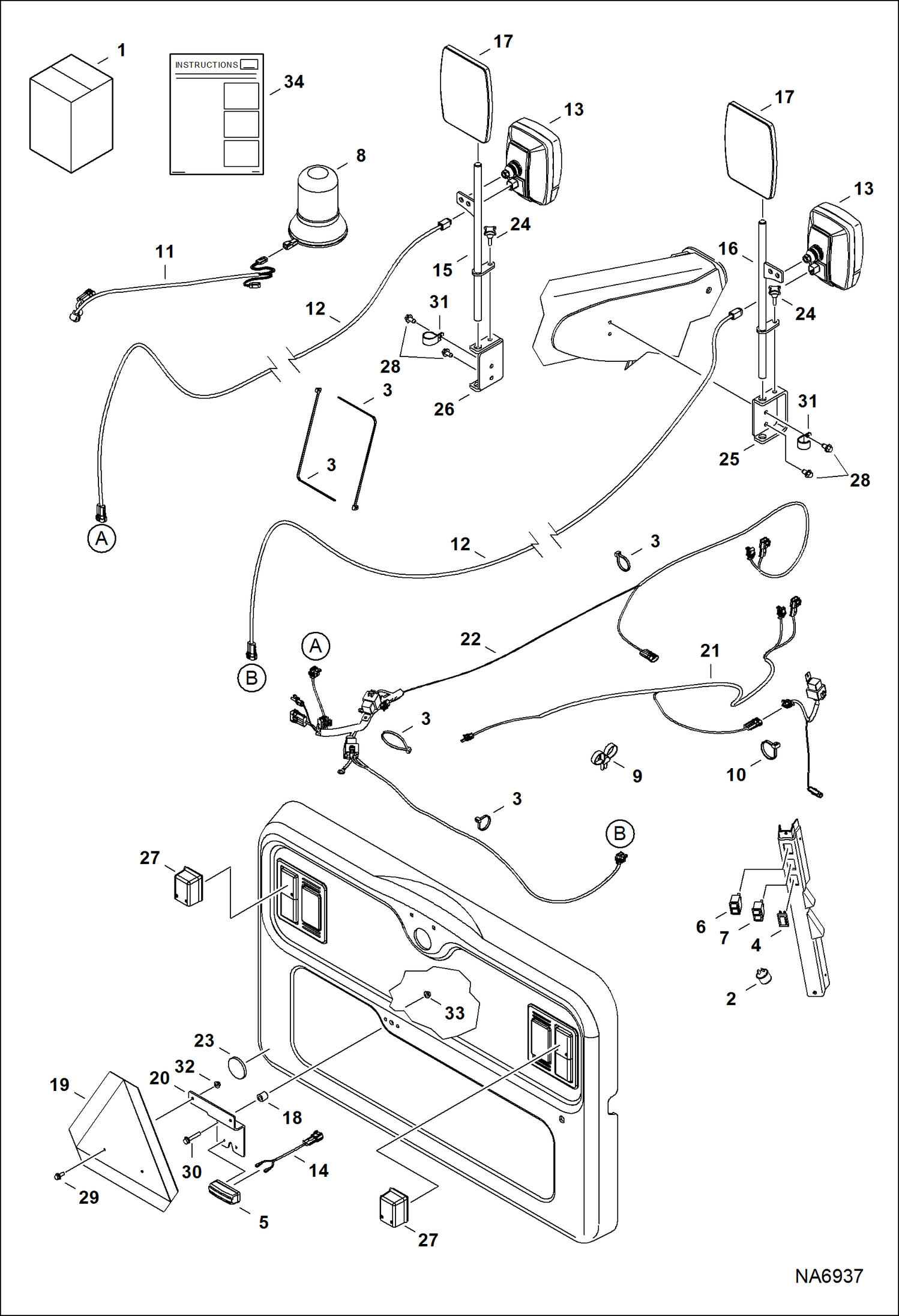

Схема запчастей Bobcat S-Series - ROAD KIT (SJC) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7211422

KIT, ROAD VERT SJC

1

7211424

KIT, ROAD RAD SJC

2

6557904

FLASHER

3

6624289

STRAP, TIE

4

6665314

PLUG

5

6665729

LIGHT

6

6668815

SWITCH

7

6668816

SWITCH

8

6675523

BEACON

9

6678668

STRAP, DUAL TIE

10

6690690

STRAP, TIE

11

6718872

HARNESS

12

7151706

HARNESS, LIFT ARM radial

12

7152108

HARNESS, LIFT ARM vertical

13

7153089

LIGHT, FRONT ASSY

14

7153090

HARNESS, LIGHT LICENSE

15

7153519

SHAFT, SPINDLE

16

7153521

SHAFT, SPINDLE

17

7153522

MIRROR, SIDE HEAD

18

7157740

SPACER

19

7157745

SLOW MOVING PLATE - 12

20

7174476

BRACKET, TRIANGLE

21

7175581

HARNESS BRAKE SJC

22

7175670

HARNESS ROAD KIT

23

7191035

LENS, REFLECTIVE

24

7191193

HANDLE, KNOB

25

7194092

BRACKET, RH

26

7194093

BRACKET, LH

27

7241140

LIGHT, STROBE 4200 Series Light - Was 7219903 - A

28

26GM10020

BOLT

29

29CM616

BOLT

30

29CM845

BOLT

31

30H73

CLAMP

32

43DM6

NUT

33

43DM8

NUT

34

6989727

INSTRUCTIONS

Выбрано товаров: 36
