Запчасти Bobcat S-Series CONTROLS ELECTRICAL (AHC) ELECTRICAL SYSTEM

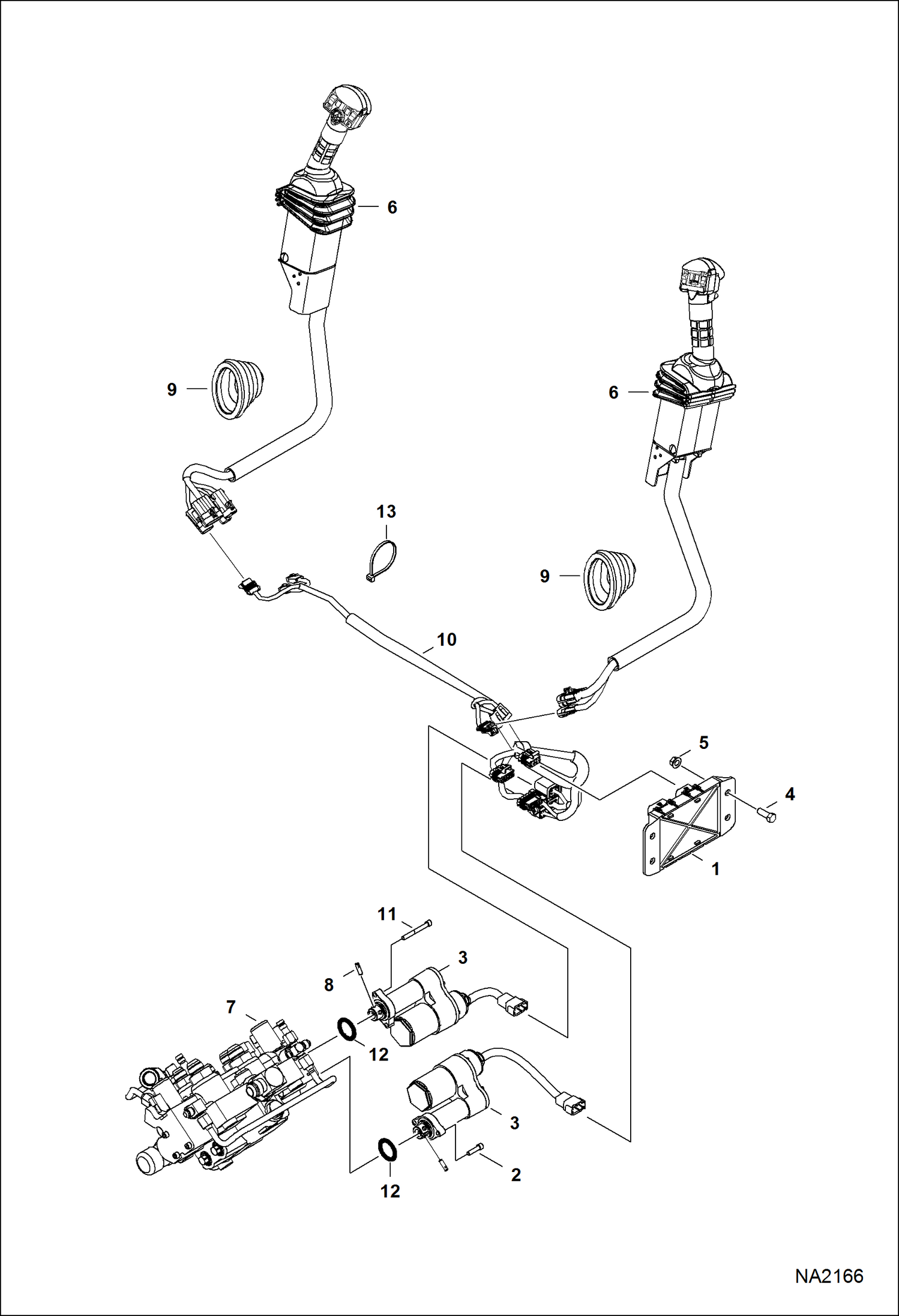

Схема запчастей Bobcat S-Series - CONTROLS ELECTRICAL (AHC) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6680410

CONTROLLER plastic - W/ 3-connector plug

2

29G416

BOLT

3

7101672

ACTUATOR W/Ref. 12

4

17C616

BOLT 5

5

95D6

NUT

6

LEVER, AHC See Illustration CONTROLS ELECTRICAL/ NA2798 RH

6

LEVER, AHC See Illustration CONTROLS ELECTRICAL/ NA2798 LH

7

VALVE - ACS, AHC & SJC

8

7108236

PIN

9

7147815

BOOT

10

7190593

HARNESS, ACS

11

69G436

BOLT

12

58K120

O-RING

Выбрано товаров: 13
