Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY (Rear Lights & Back-up Alarm) ELECTRICAL SYSTEM

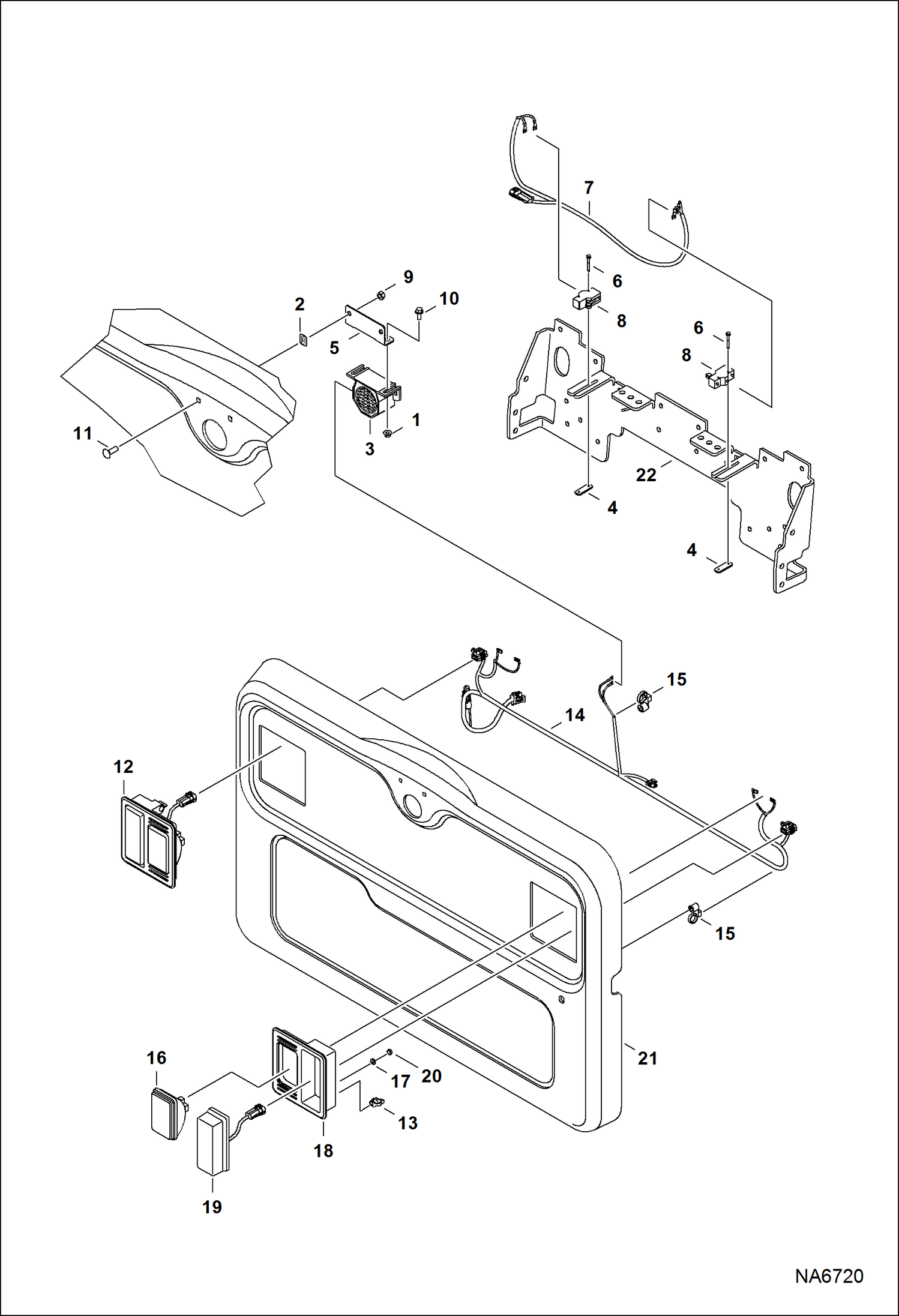

Схема запчастей Bobcat S-Series - ENGINE ELECTRICAL CIRCUITRY (Rear Lights & Back-up Alarm) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

97D4

NUT

2

774220

NUT

3

6651512

ALARM, BACK-UP

3

6737189

DECAL, WARNING backup alarm

4

6702593

SPACER

5

7167871

MOUNT, ALARM

6

84G1320

BOLT

7

7175017

HARNESS, ALARM BACK-UP

8

6646781

SWITCH

9

61D5

NUT

10

35C410

BOLT 5

11

37C516

BOLT

12

7104671

LIGHT LH

12

7104670

LIGHT RH

13

6688637

MOUNT

14

7217483

HARNESS, REAR DOOR

15

7002988

TIE, STUD MOUNT

16

6661353

LIGHT ASSY W/bulb - white

16

898731

1156 BULB

17

7025141

WASHER

18

6672279

MOUNT, LIGHT RUBBER

19

7101384

LIGHT

20

7025140

NUT

21

REAR DOOR See Illustration REAR DOOR/ NA6413

22

MOUNT See Illustration PANELS/ NA6530

Выбрано товаров: 25
