Запчасти Bobcat S-Series POWER BOB-TACH (Kit) ACCESSORIES & OPTIONS

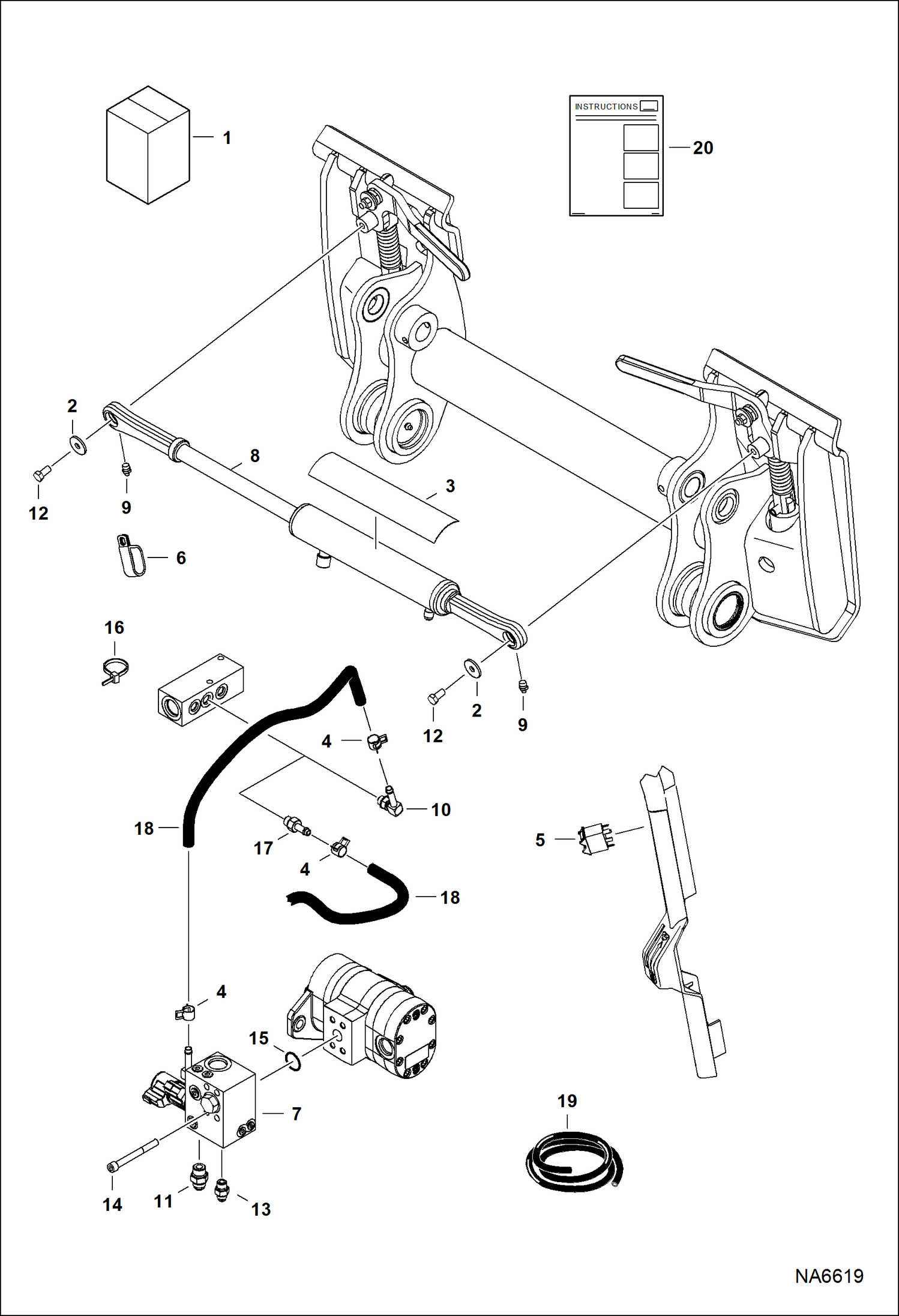

Схема запчастей Bobcat S-Series - POWER BOB-TACH (Kit) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7218434

KIT, POWER BOB-TACH See Illustration POWER BOB-TACH/ NA2820 Ref. 2, 3, 5, 7-14 & 17 - Also Order 7192264 plumbing kit

2

619021

WASHER, 5

3

6555341

SAFETY TREAD

4

5HM15

CLAMP not in kit

5

7001712

SWITCH

6

31H42

CLIP not in kit

7

VALVE, POWER BOBTACH See Illustration POWER BOB-TACH/ NA2823

8

CYLINDER, POWER BOB-TACH See Illustration POWER BOB-TACH/ NA2603

9

10H35

FITTING, GREASE 10

10

6727313

ELBOW

11

15KB0808

FITTING, HYD CONNECTOR

12

17C612

BOLT 5

13

15KB0606

FITTING, HYD CONNECTOR

14

17C652

BOLT

15

55K214

O-RING not in kit

16

6624289

STRAP, TIE not in kit

17

7158632

CONNECTOR

18

HOSE NLA - 29.5'' (749mm) long - Order Ref. 19

19

6586251

HOSE bulk - sold per foot

20

6989741

INSTRUCTIONS

Выбрано товаров: 20
