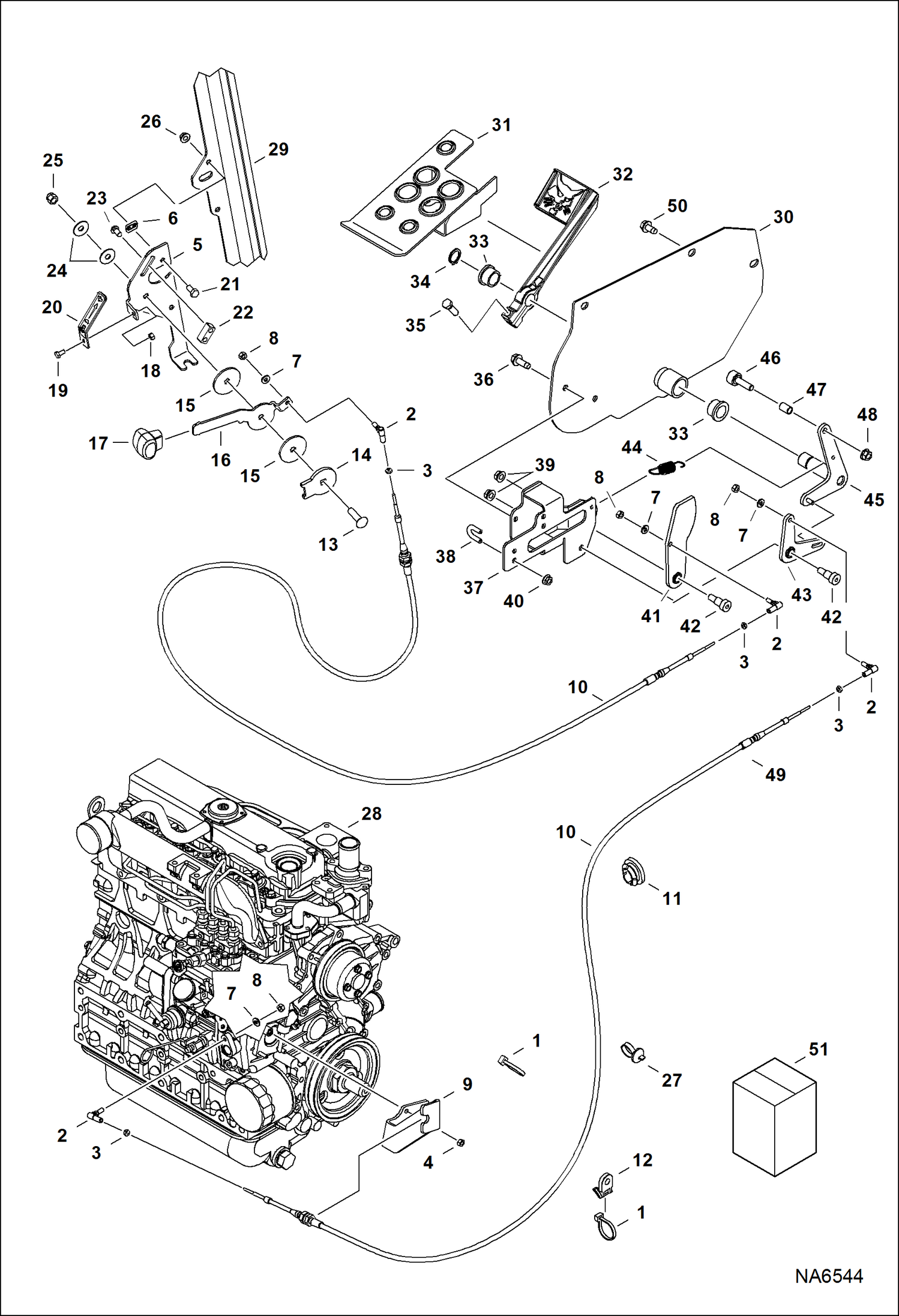

Запчасти Bobcat S-Series ENGINE SPEED CONTROL (SJC) (3412 mm) (134.4) Hand Cable - (2292 mm) (90.3) Foot Cable POWER UNIT

1

6624289

STRAP, TIE

2

6644965

BALL JOINT

3

14D10

NUT

4

4DM6

NUT

5

7166171

BRACKET

6

774220

NUT

7

25E11

WASHER

8

62D4

NUT

9

7204536

BRACKET, THROTTLE

10

CABLE, THROTTLE See BTI426 - NLA - hand cable - 3778 mm (148.7'') - Was 7214546 - A

11

7221861

GROMMET

12

6679034

MOUNT

13

37C624

BOLT

14

7166269

WASHER

15

7159386

WASHER

16

7166172

HANDLE

17

7166173

HANDLE

18

61D4

NUT 5

19

17C408

BOLT

20

7169911

PLATE, DECAL

21

17C510

BOLT

22

7166174

BLOCK

23

25G510

BOLT

24

6630038

WASHER

25

59D6

NUT

26

55D5

NUT

27

6675734

STRAP, TIE

28

ENGINE

29

CAB, ASSY

30

7211662

PANEL, RH

31

7181865

PEDAL ASSY

32

7164294

PEDAL, FOOT THROTTLE

33

7159624

BUSHING

34

6534668

SNAP RING

35

17C620

BOLT

36

84G3716

SCREW 5

37

MOUNT See BTI426 - NLA - Was 7176037 - A

38

6592766

U-BOLT

39

57D6

NUT 5

40

57D5

NUT

41

CAM, LEVER See BTI426 - NLA - Was 7176043 - A

42

38C810

BOLT

43

LEVER See BTI426 - NLA - Was 7191528 - A

44

7188749

SPRING

45

LEVER See BTI426 - NLA - Was 7176039 - A

46

6737692

BEARING

47

6737693

SPACER

48

98D6

NUT

49

CABLE, THROTTLE See BTI426 - NLA - foot cable - 2292 mm (90.3'') - Was 7196284 - A

50

84G3712

BOLT 5

51

KIT, THROTTLE FOOT See BTI426 - NLA - Was 7213423 - B
