Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

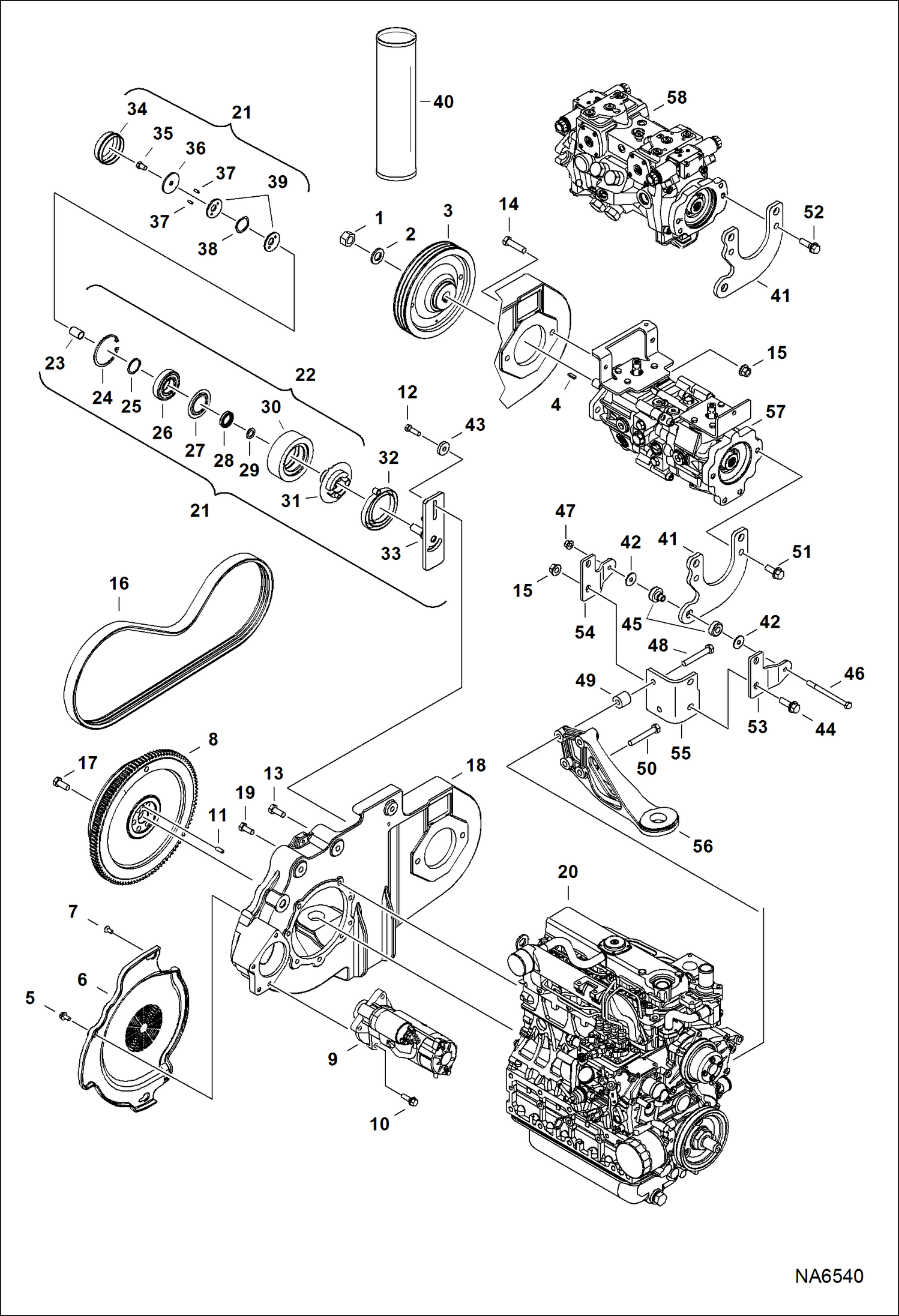

Схема запчастей Bobcat S-Series - ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

Артикул

Название

Примечание

Количество

1

96D12

NUT

2

6576033

WASHER

3

7144809

PULLEY

4

6J807

KEY, WOODRUFF SJC

4

6682261

KEY manual controls

5

59CM816

BOLT

6

7183697

SHIELD, BELT

7

7155238

BOLT

8

7179831

FLYWHEEL, ENG ASSY W/ring gear

8

6510470

RING GEAR

9

STARTER See Illustration STARTER/ B16488R

10

45C620

BOLT

11

7008888

PIN, STRAIGHT

12

47C620

BOLT

13

6719828

BOLT

14

17C832

BOLT hyd pump mount

15

83D8

NUT 5

16

7146391

BELT, DRIVE

17

6598275

BOLT flywheel

18

MOUNT, PUMP See Illustration ENGINE & ATTACHING PARTS/ NA6541

19

6719825

BOLT

20

ENGINE See Illustration ENGINE & GASKET KITS/ NA6703

21

6735884

IDLER ASSY. Ref. 22-39

22

6714212

PULLEY ASSY. Ref. 23-31

23

6682442

SLEEVE bronze sleeve

24

6658847

RING

25

6658536

RING

26

6668114

BEARING ball

27

6664209

SEAL

28

6703168

BEARING thrust

29

6685735

SEAL

30

6704391

PULLEY idler

31

6711699

HUB ASSY.

32

6705491

SPRING torsion

33

6735883

BRACKET

34

6708770

CAP dust

35

43C610

BOLT pre-applied thread locker

36

6705232

WASHER

37

6713370

PIN

38

6710585

WASHER wave spring

39

6705231

WASHER

40

6903122

GREASE, MULTI PURPOSE #2 - 10 Use W/Ref. 21

41

7193687

BRACKET, MOUNTING

42

6737388

WASHER

43

6704484

WASHER

44

31C824

BOLT 10 Was 35C824 - B

45

7223184

MOUNT, LOAD ISOLATOR

46

35C640

BOLT 10

47

85D6

NUT, 5 Was 83D6 - B

48

7223239

BOLT pre-applied thread locker

49

7222093

SPACER, BRACKET

50

7134822

BOLT

51

45C828

BOLT

52

7131273

SCREW

53

7222080

BRACKET, MOUNTING

54

7222081

BRACKET, MOUNTING

55

7222092

BRACKET, MOUNTING

56

MOUNT, ENG See Illustration ENGINE & ATTACHING PARTS/ NA6541

57

PUMP ASSY See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 Manual Control

58

PUMP ASSY See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 SJC

Выбрано товаров: 60
