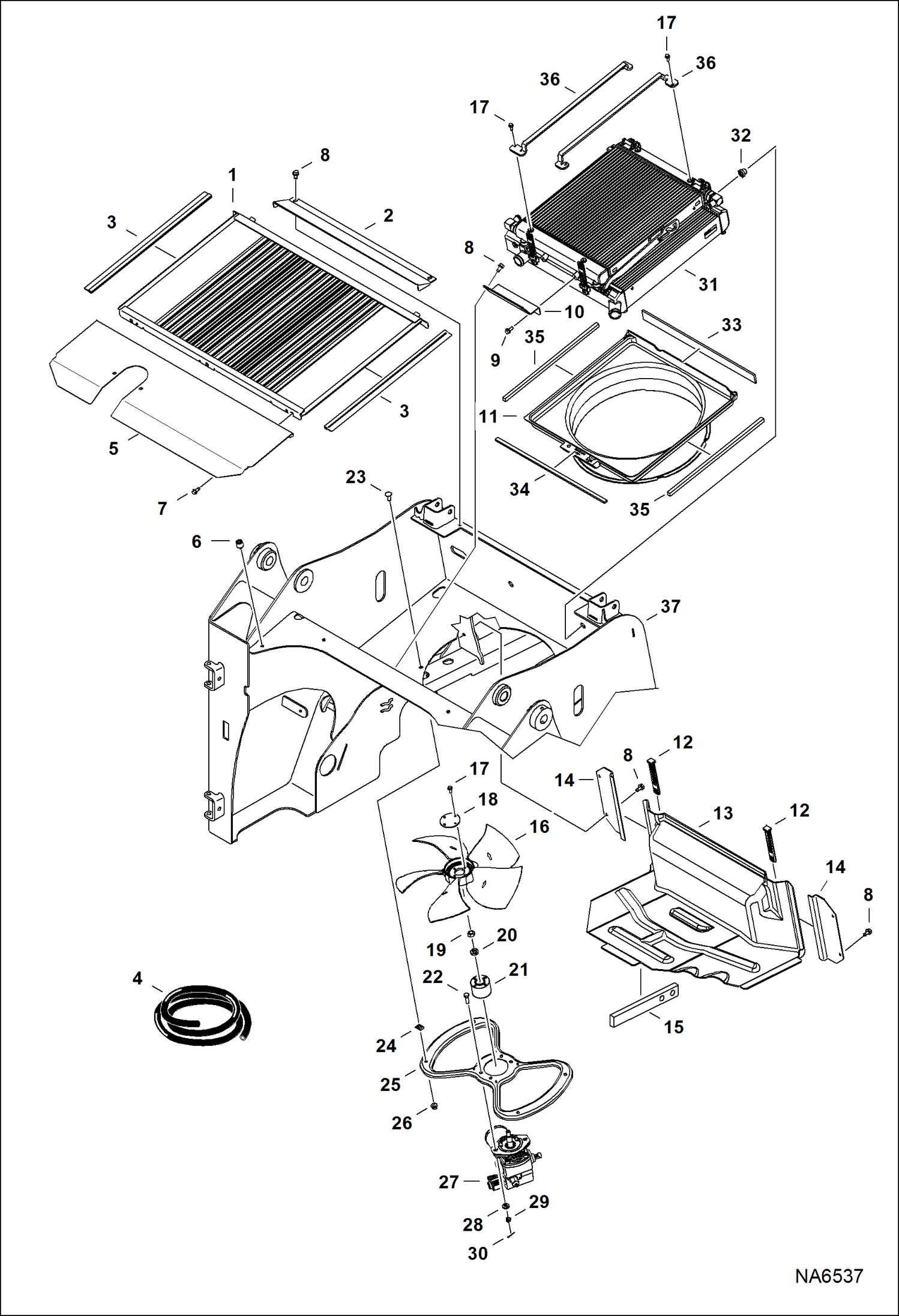

Артикул
Название
Примечание
Количество
1
7210805
SCREEN, EXCHANGER ASSY
2
7215114
SHIELD, HOOD
3
SEAL NLA - 25.62'' (650,7 mm) - Order Ref. 4
4
6646705
SEAL bulk - sold per foot
5
7210917
BRACKET, HOLDING
6
7213012
BUMPER, PLASTIC
7
84G3112
BOLT 5
9
45C512
BOLT
10
7206590
MOUNT, EXCHANGER OIL
11
7202926
SHROUD, FAN
12
7141906
STRAP, RUBBER
13
7196437
DUCT, AIR
14
7204292
COVER
15
7204293
FOAM
16
7231756
FAN, COOLING Was 7170673 - B
17
49C412
BOLT
18
7125948
PLATE
19
96D8
NUT
20
6701097
WASHER
21
7130834
HUB, FAN
22
7147826
BOLT, CROSS DRILLED
23
10C616
BOLT 10
24
6684033
NUT retaining
25
7196147
MOUNT, FAN
26
89D6
NUT
27
MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ NA6655
28
6557831
WASHER
29
3D6
NUT
30
1F316
PIN
31
EXCHANGER, WATER RADIATOR See Illustration RADIATOR/COOLER ASSEMBLY/ NA6564
32
7208181
BUSHING
33
7197974
SEAL, FOAM
34
7196179
SEAL, FOAM
35
7196181
SEAL, FOAM
36
7167537
GUARD, CONDENSER
37
MAIN FRAME See Illustration MAIN FRAME/ NA6525
Выбрано товаров: 37
