Запчасти Bobcat S-Series CONTROLS ELECTRICAL (SJC) (Armrest Assembly) ELECTRICAL SYSTEM

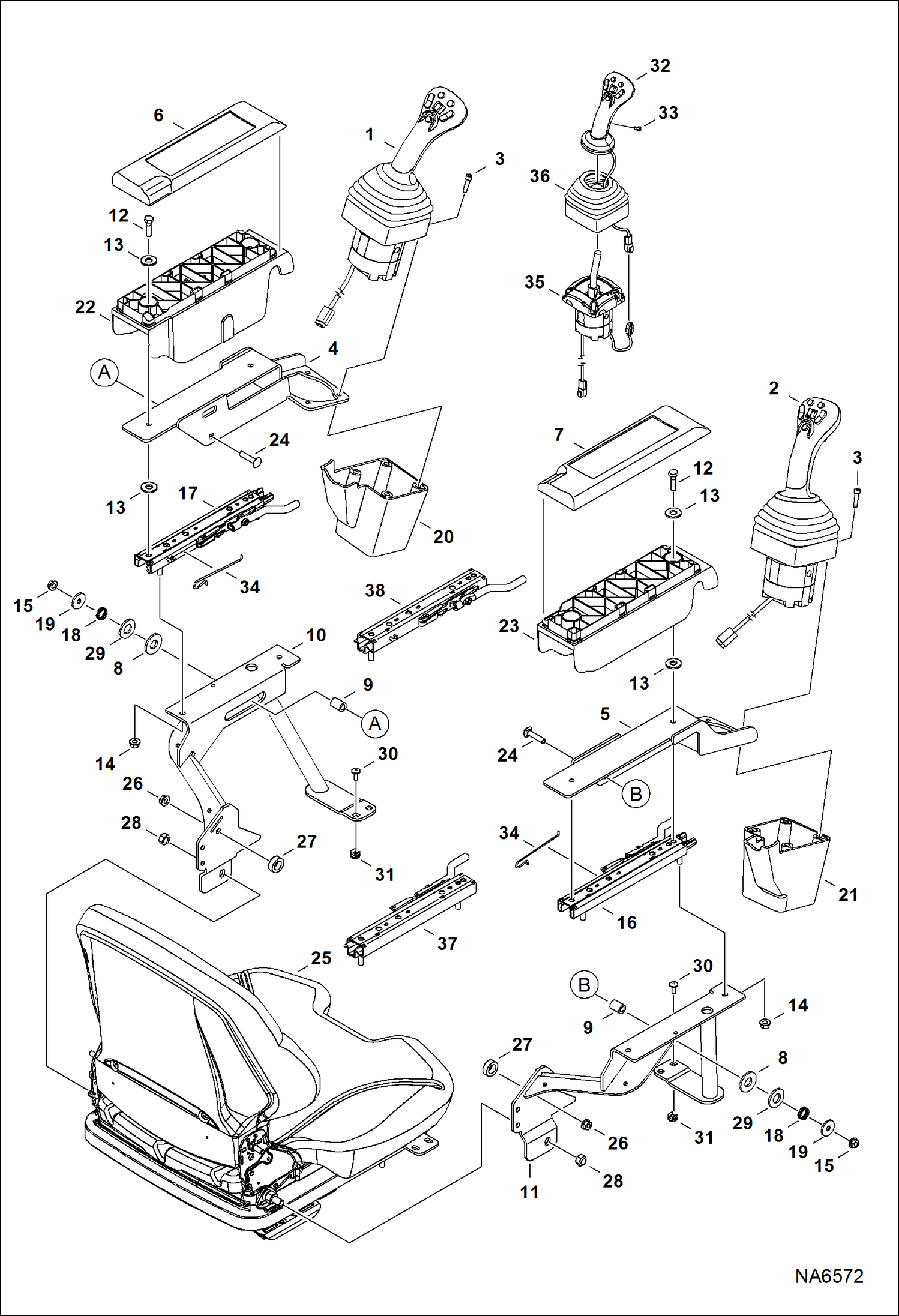

Схема запчастей Bobcat S-Series - CONTROLS ELECTRICAL (SJC) (Armrest Assembly) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

7023150

JOYSTICK, LH ASSY Ref. 34, 35, 37 & 38

2

7023149

JOYSTICK, RH ASSY Ref. 34, 35, 37 & 38

3

6814021

BOLT

4

7197922

MOUNT, CONTROLS LH

5

7197921

MOUNT, CONTROLS RH

6

7157704

COVER ARMREST LH

7

7157671

COVER ARMREST, RH

8

7165634

WASHER, PLASTIC

9

7197916

SPACER

10

7229392

ARM REST, LH Was 7220856 - A

11

7229391

ARM REST, RH Was 7220855 - A

12

1CM830

BOLT

13

25E18

WASHER

14

51DM8

NUT

15

97D5

NUT

16

7200887

SLIDE W/O torsion spring - Also Order Ref. 39

17

7200888

SLIDE W/O torsion spring - Also Order Ref. 39

18

7197915

SPRING, COMPRESSION

19

6701174

WASHER

20

7146265

COVER, LH SJC

21

7146264

COVER, RH SJC

22

7177197

SHELL, ARMREST LH

23

7177196

SHELL, ARMREST RH

24

10C524

BOLT

25

SEAT See Illustration SEAT & SEAT BELT/ NA1126 - std.

25

SEAT See Illustration SEAT - 80 mm/ NA2430 - suspension

25

SEAT See Illustration SEAT/ NA2429 - air suspension

26

51DM8

NUT

27

7162176

SPACER

28

86D7

NUT

29

25E25

WASHER 10

30

6803202

SCREW

31

7170765

NUT

32

6689922

HANDLE LH

32

6689923

HANDLE RH

33

6689927

BOLT

34

7199853

SPRING, TORSION

35

7023152

BASE, JOYSTICK LH LH

35

7023151

BASE, JOYSTICK RH RH

36

7023154

BOOT, RUBBER LH LH - 4 pleat boot

36

7023153

BOOT, RUBBER RH RH - 4 pleat boot

Выбрано товаров: 41
