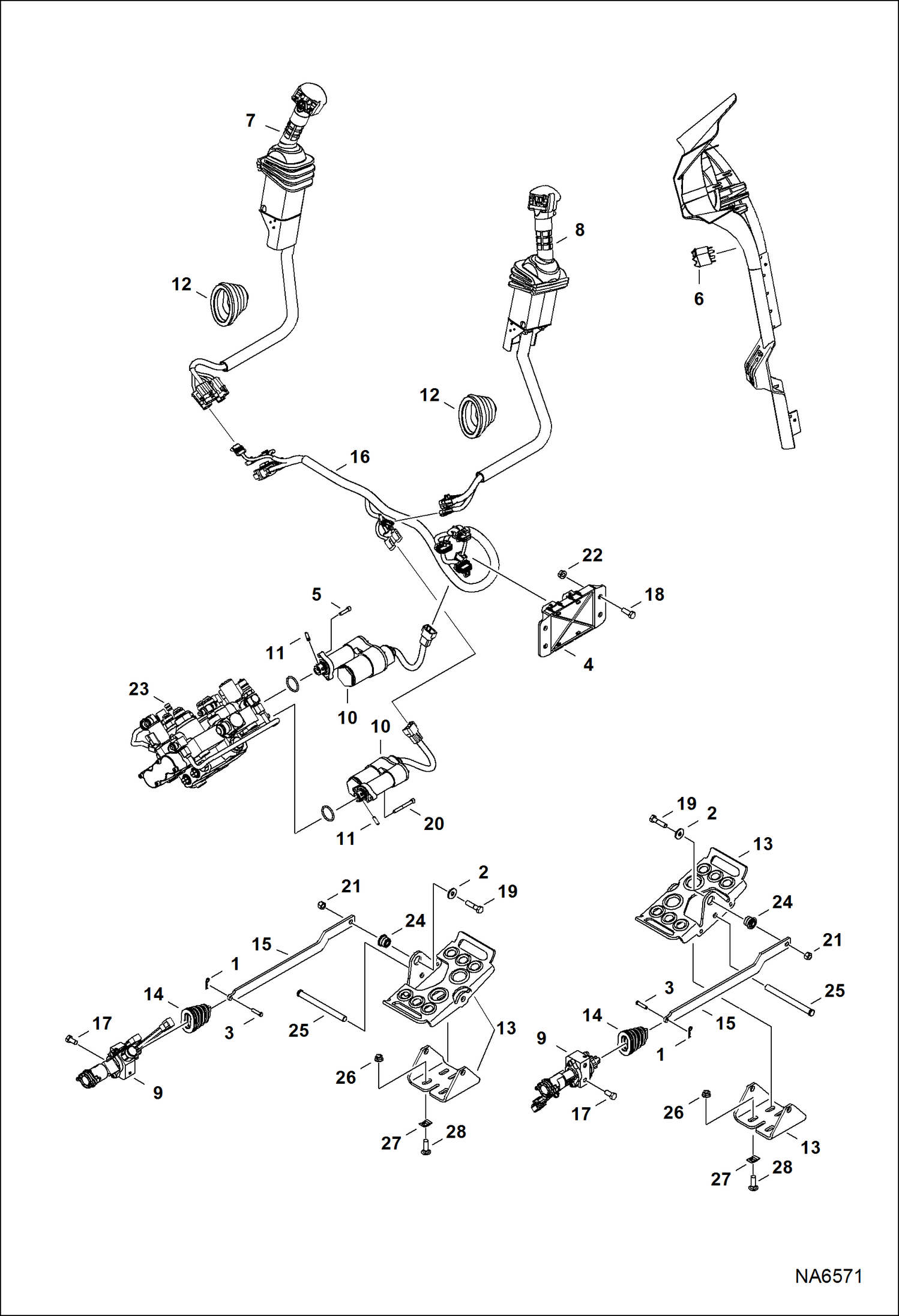

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (ACS) ELECTRICAL SYSTEM

1

6513495

COTTER PIN

2

6563914

WASHER

3

6564654

PIN

4

6680410

CONTROLLER plastic - W/ 3-connector plug

5

6814021

BOLT

6

7001713

SWITCH

7

LEVER, RH See Illustration CONTROLS ELECTRICAL/ NA2799

8

LEVER, LH See Illustration CONTROLS ELECTRICAL/ NA2799

9

7003496

SENSOR

10

7101672

ACTUATOR

11

7108236

PIN

12

7147815

BOOT

13

7163421

PEDAL ASSY - LH

14

7153503

BOOT

15

7181914

LINK

16

7190593

HARNESS, ACS

17

17C612

BOLT 5

18

31C616

SCREW

19

17C624

BOLT 5

20

69G436

BOLT

21

95D6

NUT

22

97D6

NUT 10

23

7215960

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6582

24

6665701

BUSHING, PRESS FIT

25

7124815

PIN, PIVOT

26

57D6

NUT 5

27

6684032

SEAL KIT

28

37C620

BOLT
