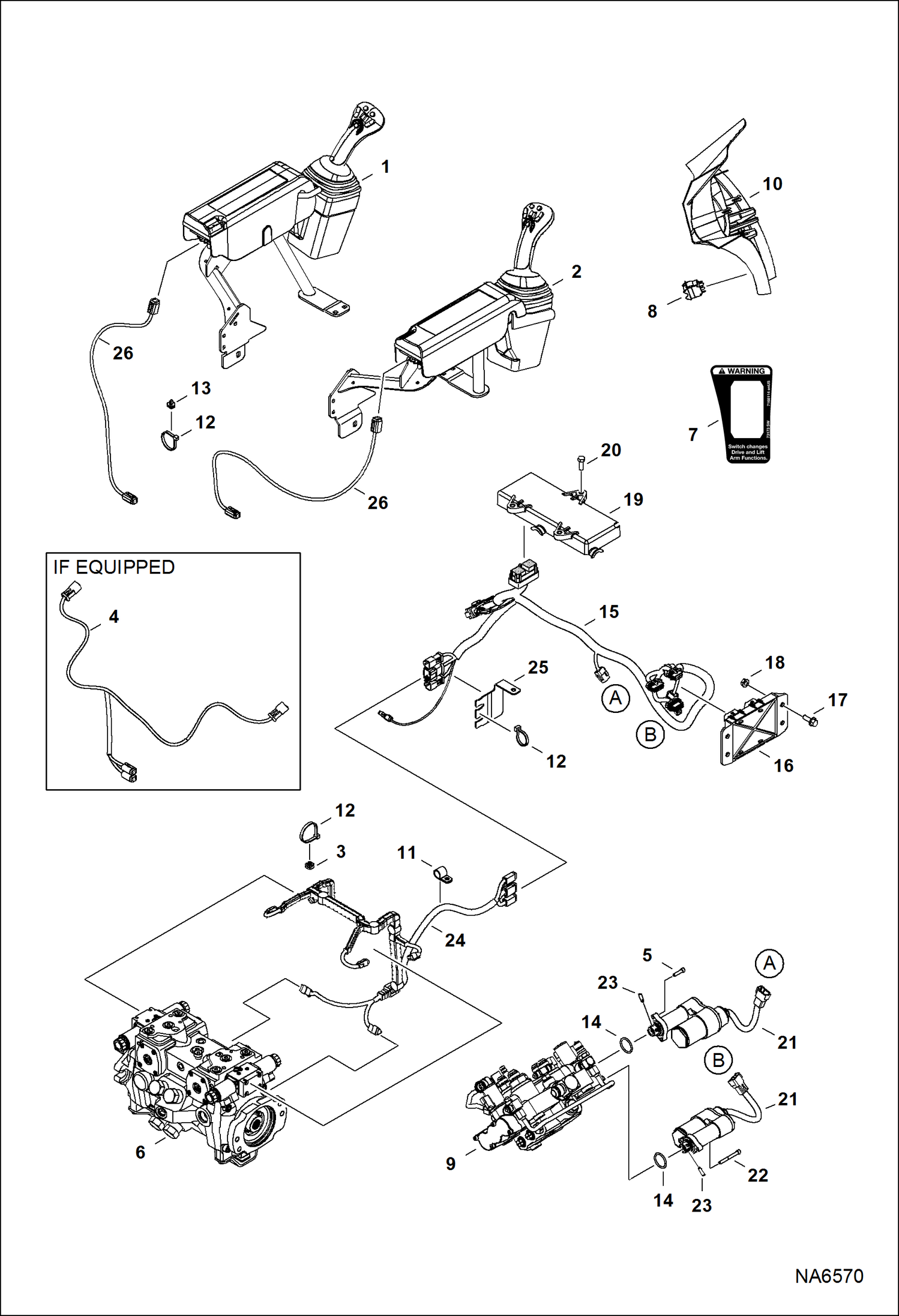

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) ELECTRICAL SYSTEM

1

JOYSTICK, SJC LH See Illustration CONTROLS ELECTRICAL/ NA6572

2

JOYSTICK, SJC RH See Illustration CONTROLS ELECTRICAL/ NA6572

3

6690688

TREE MOUNT

4

7163706

HARNESS, JOYSTICK

5

6814021

BOLT

6

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652

7

7168114

DECAL, SWITCH

8

7001710

SWITCH, ISO

9

7215960

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6582

10

PANEL, RH See Illustration OPERATOR CAB/ NA6528

11

30H42

CLAMP

12

6690690

STRAP, TIE

13

6690689

MOUNT, FIR TREE

14

58K120

O-RING

15

7210505

HARNESS, SJC

16

6680410

CONTROLLER plastic - W/ 3-connector plug

17

31C616

SCREW

18

97D6

NUT 10

19

6679485

CONTROLLER SJC

20

43C616

BOLT

21

7101672

ACTUATOR W/Ref. 14

22

69G436

BOLT

23

7108236

PIN

24

7198705

HARNESS, PUMP

25

7213230

BRACKET
