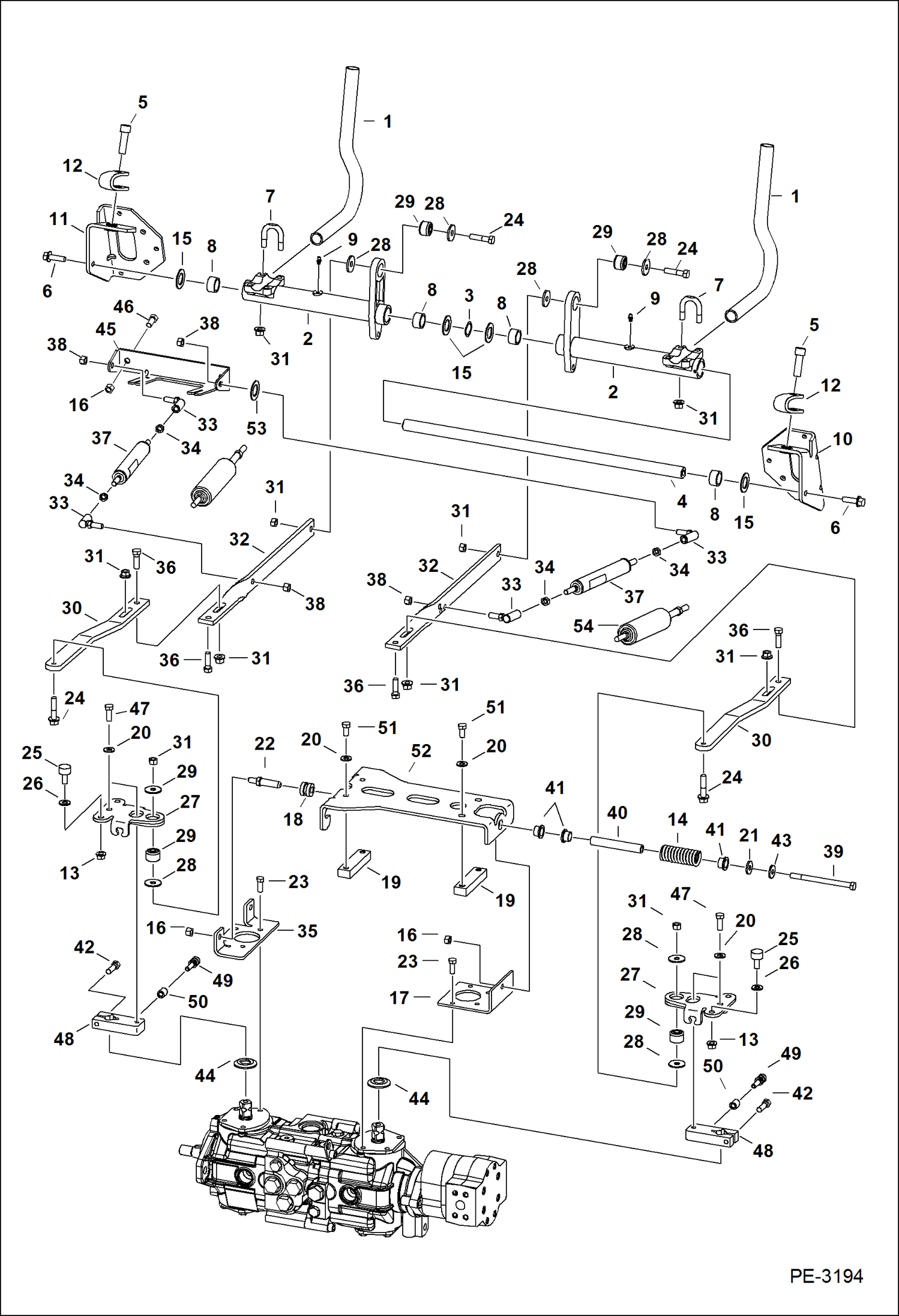

Запчасти Bobcat S-Series HAND CONTROLS HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - Use W/Ref. 8 (6673710 bearing) - Order 7110571 bellcrank & (2) of Ref. 8 (6703879 bushing) - Was 7110572 - A

2

7110571

BELLCRANK, STEERING W/notch for Ref. 8 (6703879 bushing)

3

6599741

WASHER wave - Use W/Ref. 15

3

7154546

WASHER, WAVE

4

6716545

ROD

5

73G828

BOLT

6

45C620

BOLT

7

6732997

U-BOLT

8

6673710

BEARING, NEEDLE Use W/Ref. 2 (NLA/ 7110572 bellcrank)

8

6703879

BUSHING, PLASTIC W/tab - Use W/Ref. 2 (7110571 bellcrank)

9

10H35

FITTING, GREASE 10 threaded

10

7128600

BRACKET RH

11

7128601

BRACKET LH

12

7121779

PAD

13

98D6

NUT

14

6701535

SPRING

15

6716916

WASHER

16

95D6

NUT

17

7109904

BRACKET

18

6706098

GUIDE

19

6702716

BLOCK

20

7103217

WASHER

21

6563914

WASHER

22

6577058

PIN

23

1CM820

BOLT

24

49C628

BOLT

25

6673789

BEARING

26

7100699

WASHER

27

7110365

ARM, PINTLE

28

6737388

WASHER

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD

30

6737746

LINK 16.35'' (415,3 mm) long

30

7125363

LINK 19'' (482,6 mm) long

31

83D6

NUT 5

32

7100266

LINK 25.72'' (653,3 mm) long

32

7139420

LINK 586 mm (23.07'') long

33

6599744

BALL JOINT

34

62D6

NUT 5

35

7109905

BRACKET

36

17C620

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 54 - Was 6649551 - A

38

96D6

NUT

39

17C680

BOLT

40

6715164

SLEEVE, SPRING

41

6715163

BUSHING, PRESS FIT

42

73G624

BOLT

43

25E24

WASHER AHC & ACS - Was 25E22 - B

44

6687913

SEAL

45

7147580

MOUNT damper - W/mount for back-up alarm switch - Was 7100795 - A

46

17C612

BOLT 5

47

47C620

BOLT - Was 7105193 - A

48

7103708

BRACKET pintle arm

49

7103711

BOLT

50

7105223

SPACER

51

17C616

BOLT 5 - Was 7105192 - B

52

6734298

MOUNT

53

SPACER NLA - Order 8D6 jam nut - Was 7110945 - A

54

7188108

GAS SPRING
