Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Motors) (SJC) HYDROSTATIC SYSTEM

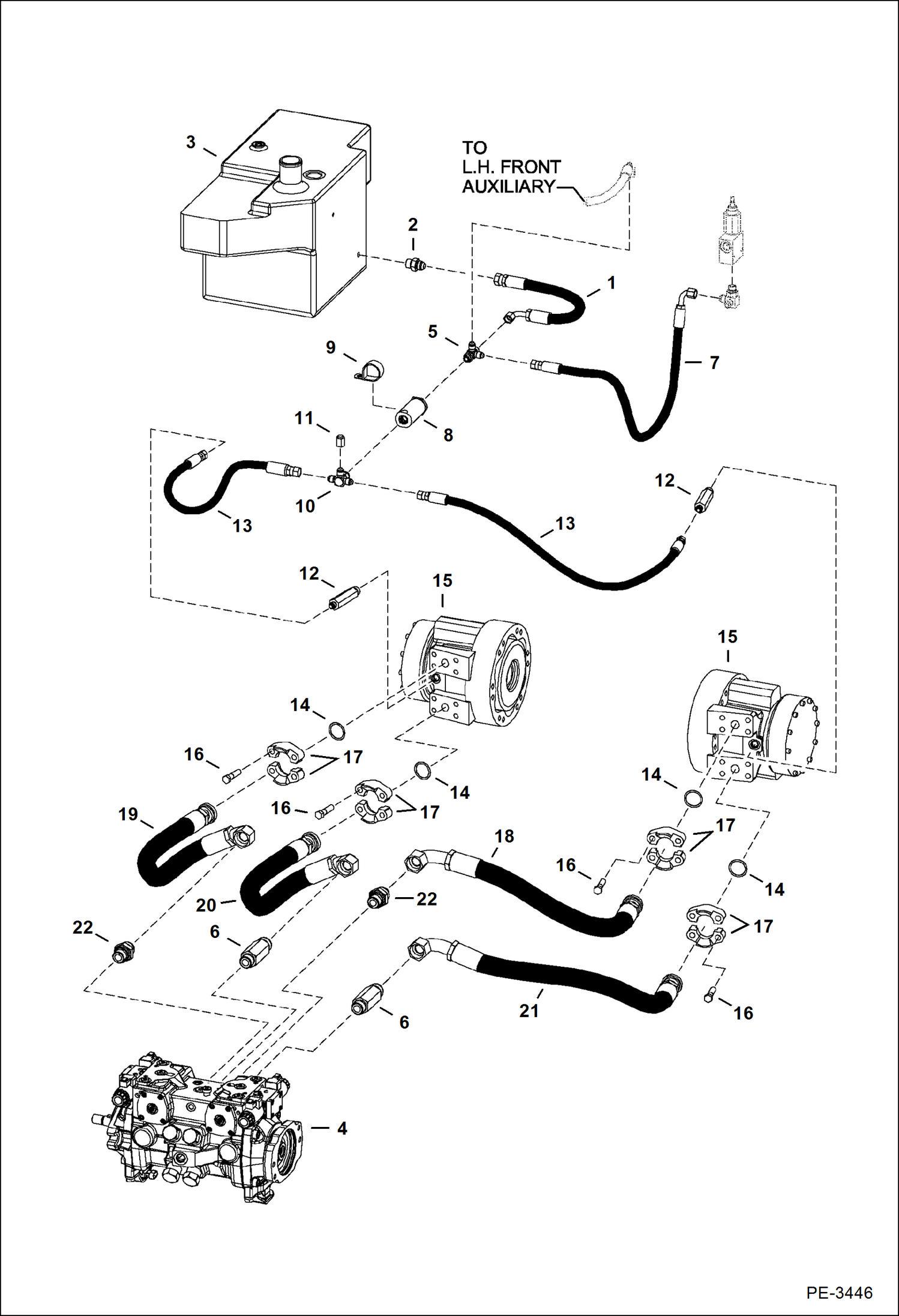

Схема запчастей Bobcat S-Series - HYDROSTATIC CIRCUITRY (W/Motors) (SJC) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6733219

HOSE

2

15KB0808

FITTING, HYD CONNECTOR

2

79K8

O RING 10

3

6731209

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE2961 See Illustration HYDROSTATIC CIRCUITRY/ PE2970 hydraulic

4

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2824 hydrostatic

5

6718031

TEE

5

79K6

O RING 10

6

6716243

ADAPTER

6

79K12

O RING 10

7

6732483

HOSE

8

6661022

FILTER, OIL HYD IN-LINE

9

30H79

CLAMP

10

6725497

CROSS

10

79K6

O RING 10

11

36K5

CAP

12

6717306

ADAPTER

12

79K8

O RING 10

13

7126010

HOSE 2 straight ends

14

55K219

O'RING

15

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS1467 drive

16

17C728

BOLT

17

20J16

FLANGE

18

7107560

HOSE

19

7107557

HOSE

20

7107558

HOSE

21

7107559

HOSE

22

15KB1612

FITTING, HYD CONNECTOR

22

79K12

O RING 10

Выбрано товаров: 28
