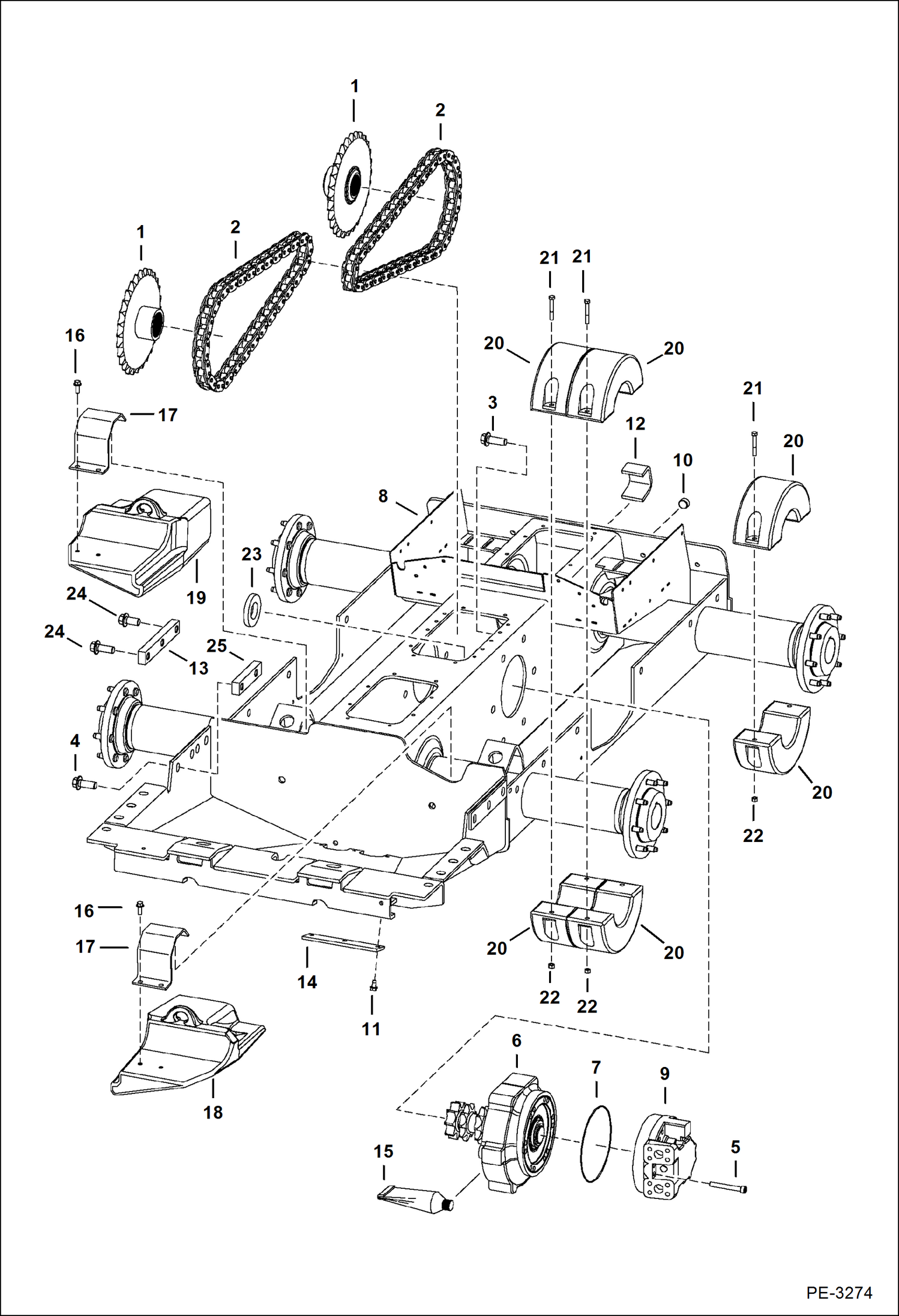

Запчасти Bobcat S-Series DRIVE TRAIN DRIVE TRAIN

1

7134153

SPROCKET See Illustration AXLE/ PE1544 Was 7106737 - A

2

7106862

CHAIN, DRIVE endless - 48 pitches

2

6690988

CHAIN, DRIVE service

2

6691078

LINK connecting

3

6678971

BOLT

4

31C1228

BOLT

5

6717806

BOLT

6

MOTOR CARRIER See Illustration MOTOR CARRIER/ PE1543 See Illustration MOTOR CARRIER/ PE1395 - Drive Motor

7

25K30816

O-RING Was 25K30812 - B,D

8

CHAINCASE See Illustration ENGINE & ATTACHING PARTS/ PE3755 NLA - frame only - Order 7112333 chaincase, (4) each of 7116850 spacer, 43C860 bolt & (8) each of 7116851 cup, 7161717 mount - Was 7112333 -

8

7112333

CHAINCASE frame only

9

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS1467

10

6731121

PLUG chaincase fill

11

84G3712

BOLT 5

12

6706485

HOOK tie down - weld-on

13

6706857

BLOCK 3 hole threaded

14

6700182

COVER, DRAIN

15

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

16

45C616

BOLT

17

6733774

BRACKET

18

6733775

COUNTERWEIGHT RH

19

6733780

COUNTERWEIGHT LH

20

6714362

COUNTERWEIGHT, AXLE REAR rear

21

1C640

BOLT

22

61D6

NUT 5

23

6680055

MAGNET selectable joystick controls

24

31C1224

BOLT

25

7124840

BAR 2 hole threaded
