Запчасти Bobcat S-Series PANELS (Selectable Joystick Controls) MAIN FRAME

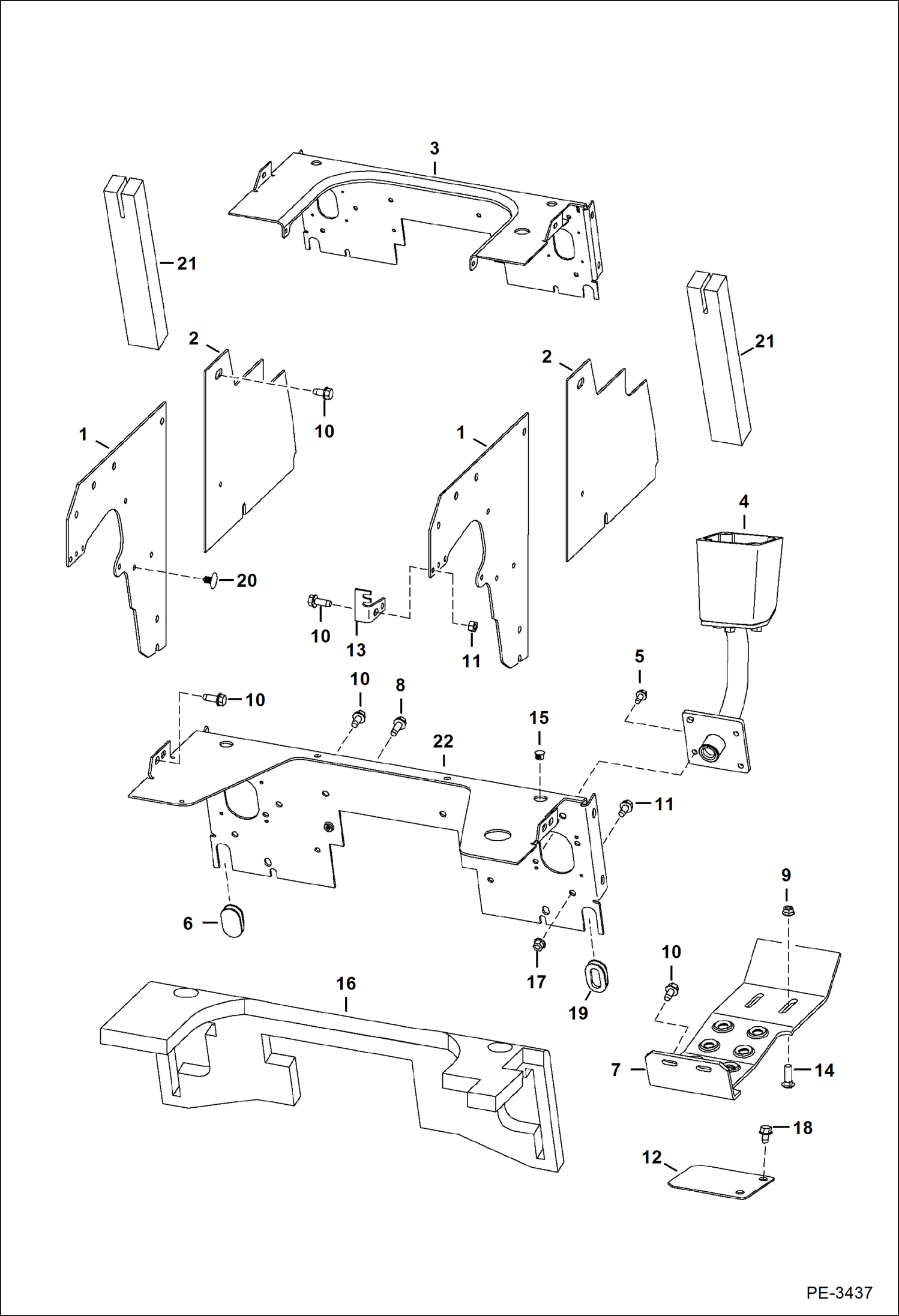

Схема запчастей Bobcat S-Series - PANELS (Selectable Joystick Controls) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6734521

PANEL

2

7117124

PANEL

3

7106707

SHIELD

4

HANDLE See Illustration CONTROLS ELECTRICAL/ PE3112

5

35C512

BOLT

6

6714726

GROMMET

7

6729237

STEP

8

84G3716

SCREW 5

9

57D6

NUT 5

10

84G3712

BOLT 5

11

95D6

NUT

12

6729774

COVER cylinder access

13

6732450

BRACKET cable

14

37C620

BOLT

15

6648348

PLUG 0.81'' dia hole

16

6716800

INSULATION Use W/Ref. 3

16

7139184

INSULATION Use W/Ref. 22

17

89D5

NUT

18

84G3710

SCREW

19

6577961

GROMMET

20

6674895

RETAINER

21

6732618

SEAL

22

7139183

SHIELD

Выбрано товаров: 23
