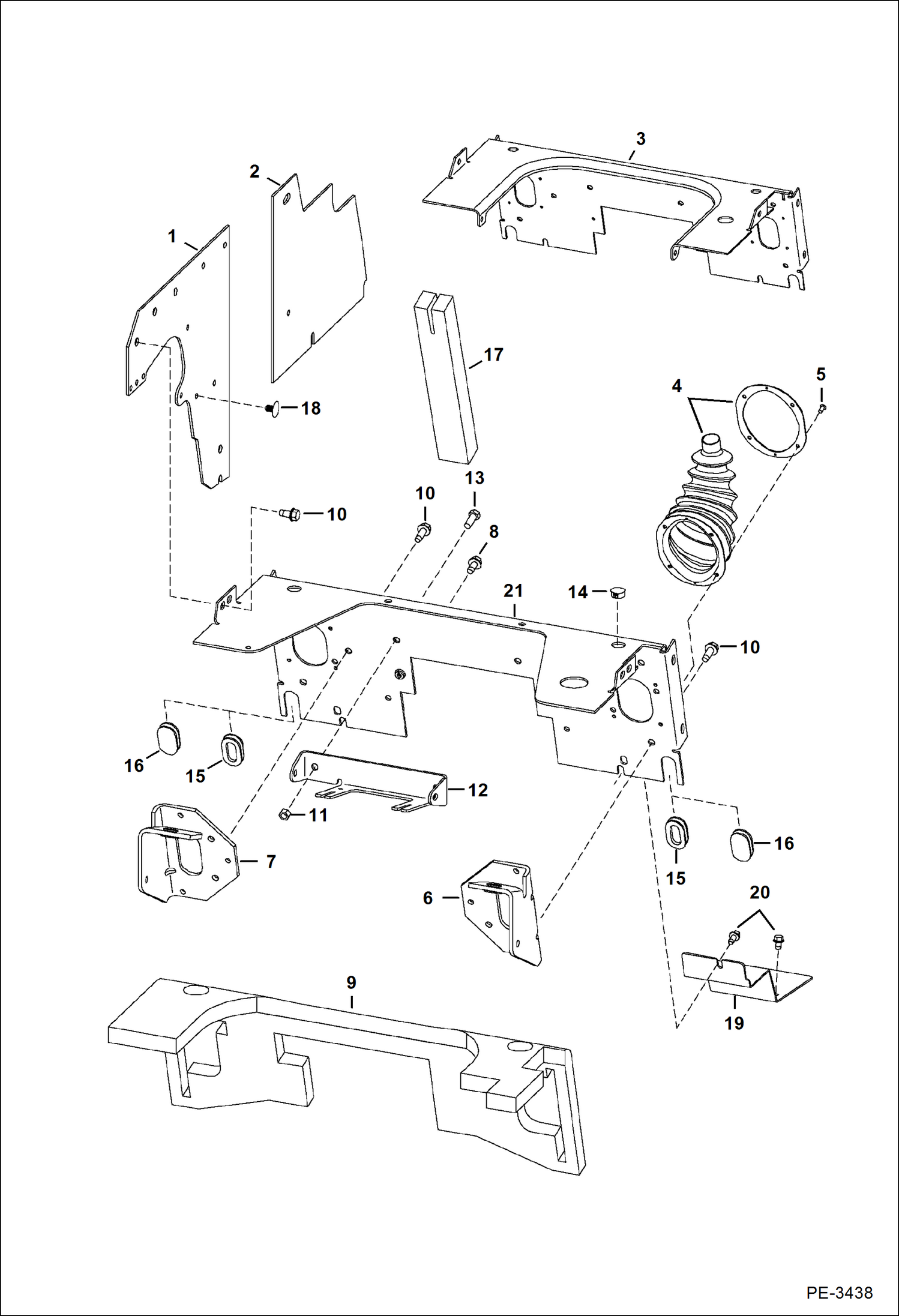

Запчасти Bobcat S-Series PANELS (Manual Controls, AHC & ACS) MAIN FRAME

1

6734521

PANEL

2

7117124

PANEL

3

7106707

SHIELD

4

6532127

BOOT W/mounting ring

4

RING NSS - mounting ring

5

6630207

RIVET 5

6

7128600

BRACKET See Illustration HAND CONTROLS/ PE3194 - steering - RH

7

7128601

BRACKET See Illustration HAND CONTROLS/ PE3194 - LH

8

84G3716

SCREW 5

9

6716800

INSULATION Use W/Ref. 3

9

7139184

INSULATION Use W/Ref. 21

10

84G3712

BOLT 5

11

95D6

NUT

12

7147580

MOUNT damper - W/mount for back-up alarm switch - Was 7100795 - A

13

17C612

BOLT 5

14

6648348

PLUG 0.81'' dia hole

15

6577961

GROMMET for manual controls

16

6714726

GROMMET plug - for AHC, ACS, SJC

17

6732618

SEAL

18

6674895

RETAINER

19

6737095

STEP RH - rest

19

6737120

STEP LH - rest

20

84G3710

SCREW

21

7139183

SHIELD
