Запчасти Bobcat S-Series HYDROSTATIC PUMP/GEAR PUMP (Identification) HYDROSTATIC SYSTEM

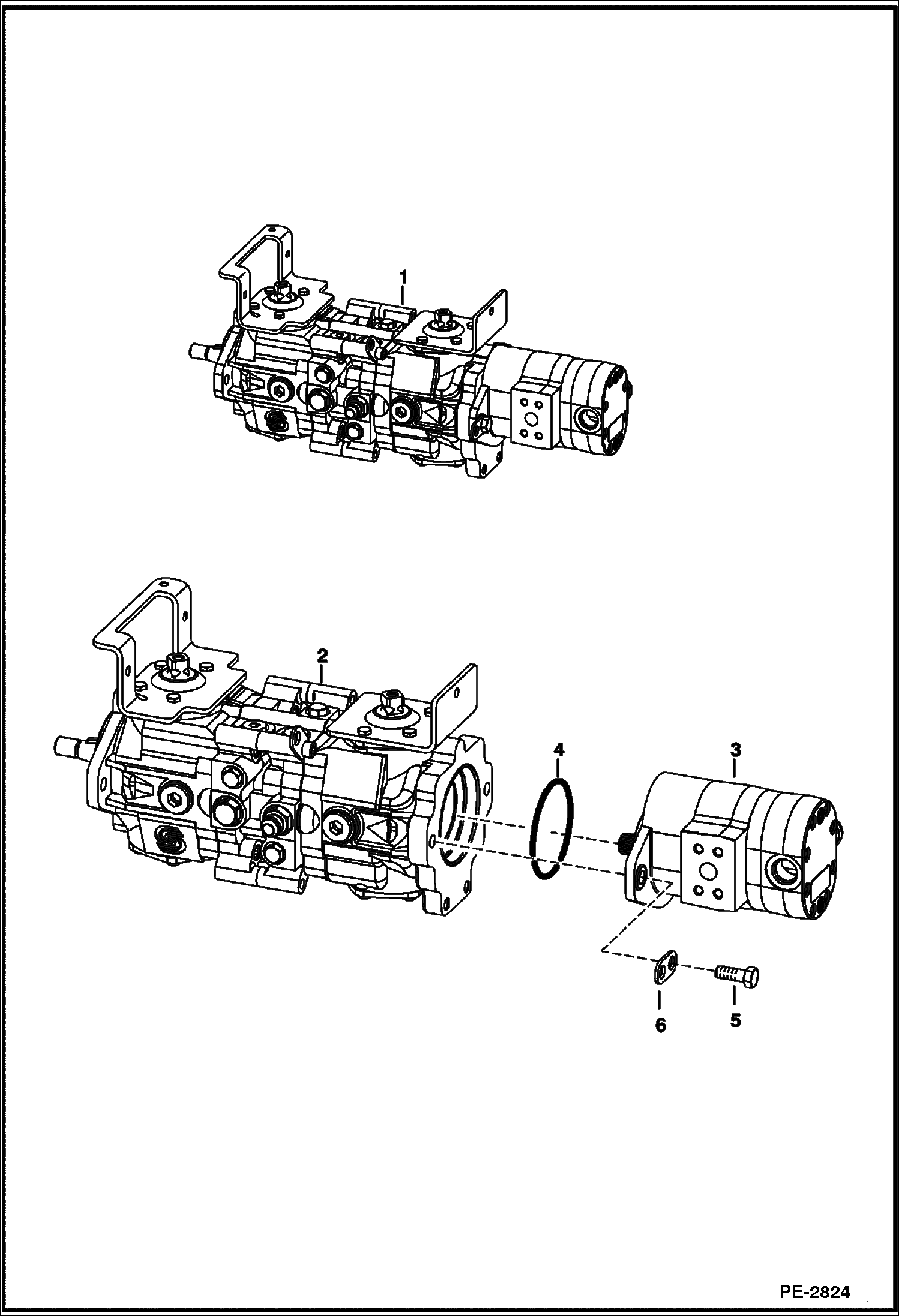

Схема запчастей Bobcat S-Series - HYDROSTATIC PUMP/GEAR PUMP (Identification) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

PUMP ASSY NLA - Order Ref. 2-6

2

HYDROSTATIC PUMP See Illustration HYDROSTATIC PUMP/ MS2184 See Illustration HYDROSTATIC PUMP/ MS2183 - manual controls, AHC, ACS

2

HYDROSTATIC PUMP See Illustration HYDROSTATIC PUMP/ B25010 - SJC

3

GEAR PUMP See Illustration GEAR PUMP/ MS1454

3

GEAR PUMP - high flow

4

6671520

O-RING manual controls, AHC, ACS

4

6682949

O-RING SJC

5

45C824

BOLT manual controls, AHC, ACS

5

7131273

SCREW SJC - Was 59CM1240 - B

6

6662126

BRACKET
