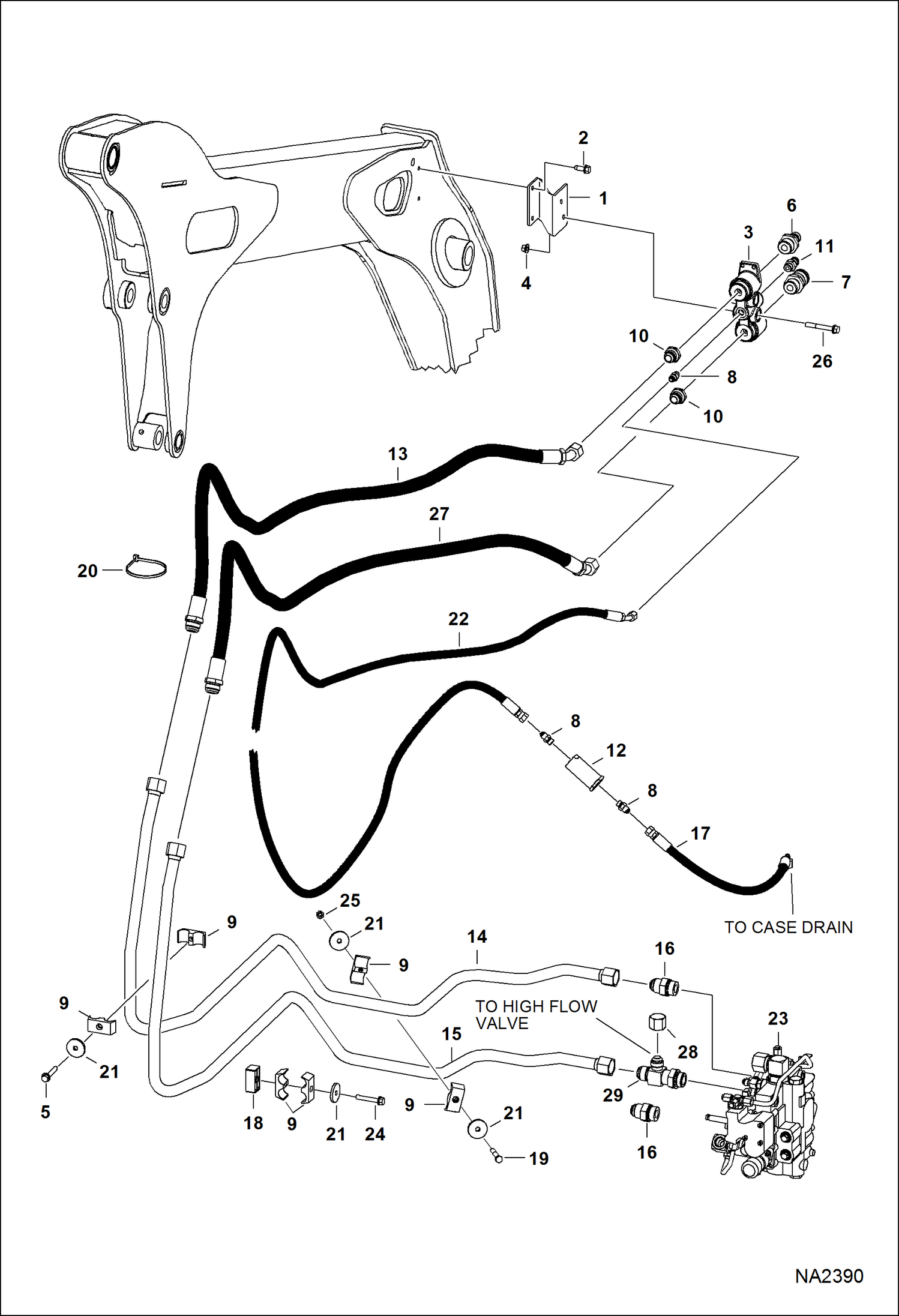

Запчасти Bobcat S-Series AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

7132830

BRACKET

2

84G3716

SCREW 5

3

6678076

BLOCK Ref. 6,7 & 11

4

83D6

NUT 5

5

84G3740

BOLT

6

6679837

COUPLER male

6

6679841

SEAL blue - front

7

KIT coupler - female - FF - Order 6680018 coupler kit

7

6680020

SEAL KIT (3) O-rings & (3) back-up washers

8

15KB0606

FITTING, HYD CONNECTOR

8

79K6

O RING 10

9

6729320

CLAMP

10

6679836

ADAPTER W/spring

11

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

12

6661022

FILTER, OIL HYD IN-LINE

13

7134133

HOSE ASSY

14

7114817

TUBELINE

15

7114816

TUBELINE Use W/Ref. 16 (15KB1210 adapter)

15

7141731

TUBELINE, HYD Use W/Ref. 29 ( 7141697 tee)

16

15KB1210

FITTING, HYD CONNECTOR

16

79K10

O RING 10

17

7106215

HOSE

18

7113465

SPACER

19

17C640

BOLT 5

20

6624289

STRAP, TIE

21

872229

WASHER

22

7134055

HOSE

23

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2379A See Illustration HYDRAULIC CONTROL VALVE/ PE2378 See Illustration HYDRAULIC CONTROL VALVE/ NA2508 See Illustration HYDRAULIC CONTROL VALVE/ PE39

24

84G3748

BOLT

25

31C644

BOLT

26

31C644

BOLT

27

7135505

HOSE ASSY

28

7141697

TEE

29

36K8

CAP standard flow only
