Запчасти Bobcat S-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6986650

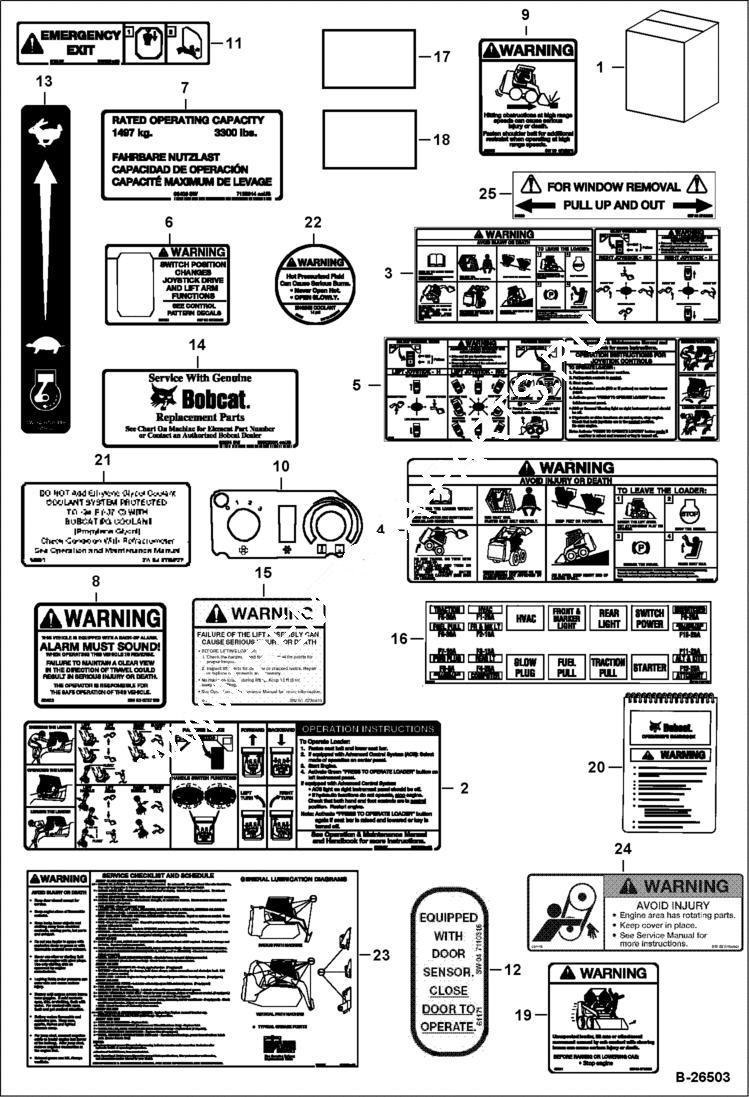

DECAL KIT Except where noted, includes decals from this ILL. (B26503) & ILL. (B26302)

1

7127386AR

KIT, TRANSLATION S330 SPANISH Argentina

1

7127386BR

KIT, TRANSLATION S330 PORTUGUESE Brazil

1

7152185AR

KIT, TRANSLATION Argentina

1

7152185BR

KIT, TRANSLATION Brazil

1

7127384AR

KIT, DECAL Argentina

1

7127384BR

KIT, DECAL Brazil

1

7127384JP

KIT, DECAL Japan

1

7163705AR

KIT, DECAL Argentina

1

7163705BR

KIT, DECAL Brazil

1

7163705JP

KIT, DECAL Japan

2

6727926

DECAL, OPERATION hand & foot controls - not in kit

3

6734646

DECAL, WARNING selectable joystick controls - not in kit

4

6728539

DECAL

5

6734647

DECAL, OPERATION selectable joystick controls - not in kit

6

6737248

DECAL, WARNING selectable joystick control

7

7177810

DECAL, CAPACITY LOAD load cap. - Was 7125914 - A

8

6737189

DECAL, WARNING backup alarm

9

6725370

DECAL 3-pt seat belt - Not In Kit

10

6718579

DECAL heater control - Not In Kit

11

6707852

DECAL, EXIT emergency

12

DECAL, SAFETY NLA - door sensor - Was 7110316 - A

13

6735140

DECAL, THROTTLE

14

6565200

DECAL, FILTER

15

6726423

DECAL, WARNING check before lifting

16

7117407

DECAL, FUSE inside fuse cover - 51 x 178 mm (2 x 7'')

16

7159779

DECAL fuse relay - 51 x 178 mm (2 x 7'')

17

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

18

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

19

6718706

DECAL, WARNING raising cab

20

6902600

HANDBOOK, OPERATOR'S W/wire rope - not in kit

20

6558309

WIRE ROPE bulk - sold per foot

20

6558310

SLEEVE wire rope

21

6708929

DECAL, COOLANT propylene glycol

22

6733996

DECAL, WARNING engine coolant - 14 psi

23

6734534

DECAL, SERVICE service checklist & schedule - Was 7124877

24

6708941

DECAL, WARNING rotating parts

25

6726303

DECAL, OPERATION removeable rear window
