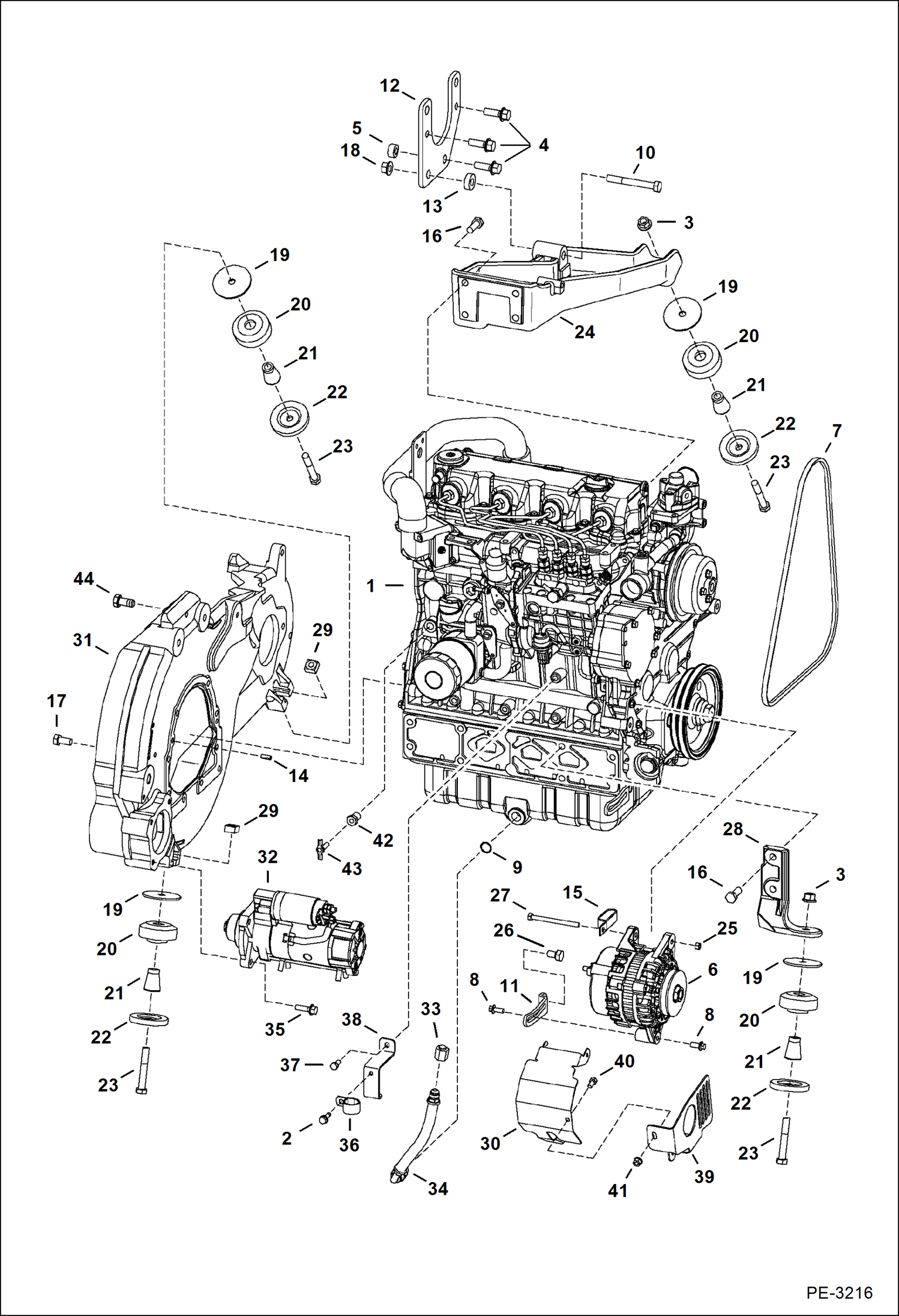

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Engine Mounts) (S/N A02040247 & Below) POWER UNIT

1

ENGINE See Illustration ENGINE & UPPER GASKET KIT/ B26841

2

84G3108

BOLT

3

83D8

NUT 5

4

31C824

BOLT 10 Manual Controls, AHC, ACS

4

7131273

SCREW selectable joystick controls

5

7105753

SPACER

6

ALTERNATOR See Illustration ALTERNATOR/ C3529

7

6686655

BELT alt/water pump

8

29CM820

SCREW

9

79K8

O RING 10

10

BOLT 5 See Illustration ENGINE MOUNTS/ NA2353

11

6732193

BRACKET

12

SUPPORT See Illustration ENGINE MOUNTS/ NA2353

13

7106750

SPACER Manual Controls, AHC, ACS

13

7106750

SPACER SJC - Was 7107572 - A

14

14J3112

PIN align Ref. 31 to the engine

15

31H34

CLIP

16

6719829

BOLT

17

6719828

BOLT

18

83D10

NUT 5

19

6705106

WASHER 3'' (76,2 mm) OD

20

6668104

MOUNT, ENG

21

7110276

SPACER, TAPERED

22

6661787

WASHER

23

43C852

BOLT

24

MOUNT See Illustration ENGINE MOUNTS/ NA2353

25

53DM8

NUT

26

6CM1220

BOLT

27

1CM8110

HEX CAP S

28

6735346

MOUNT cast

29

6652918

NUT square

30

6733873

SHIELD alternator

31

7141329

MOUNT ENGINE

32

STARTER See Illustration STARTER/ B16488R

33

36K6

CAP

34

6734573

HOSE, ENG OIL DRAIN 12.5'' (318mm) long

35

45C620

BOLT

36

30H73

CLAMP

37

5CM1020

SCREW

38

7112683

BRACKET

39

6734436

SHIELD alt belt

40

17C510

BOLT

41

83D5

NUT 5

42

7101136

BUSHING

43

72F1

FITTING

44

31C820

BOLT
