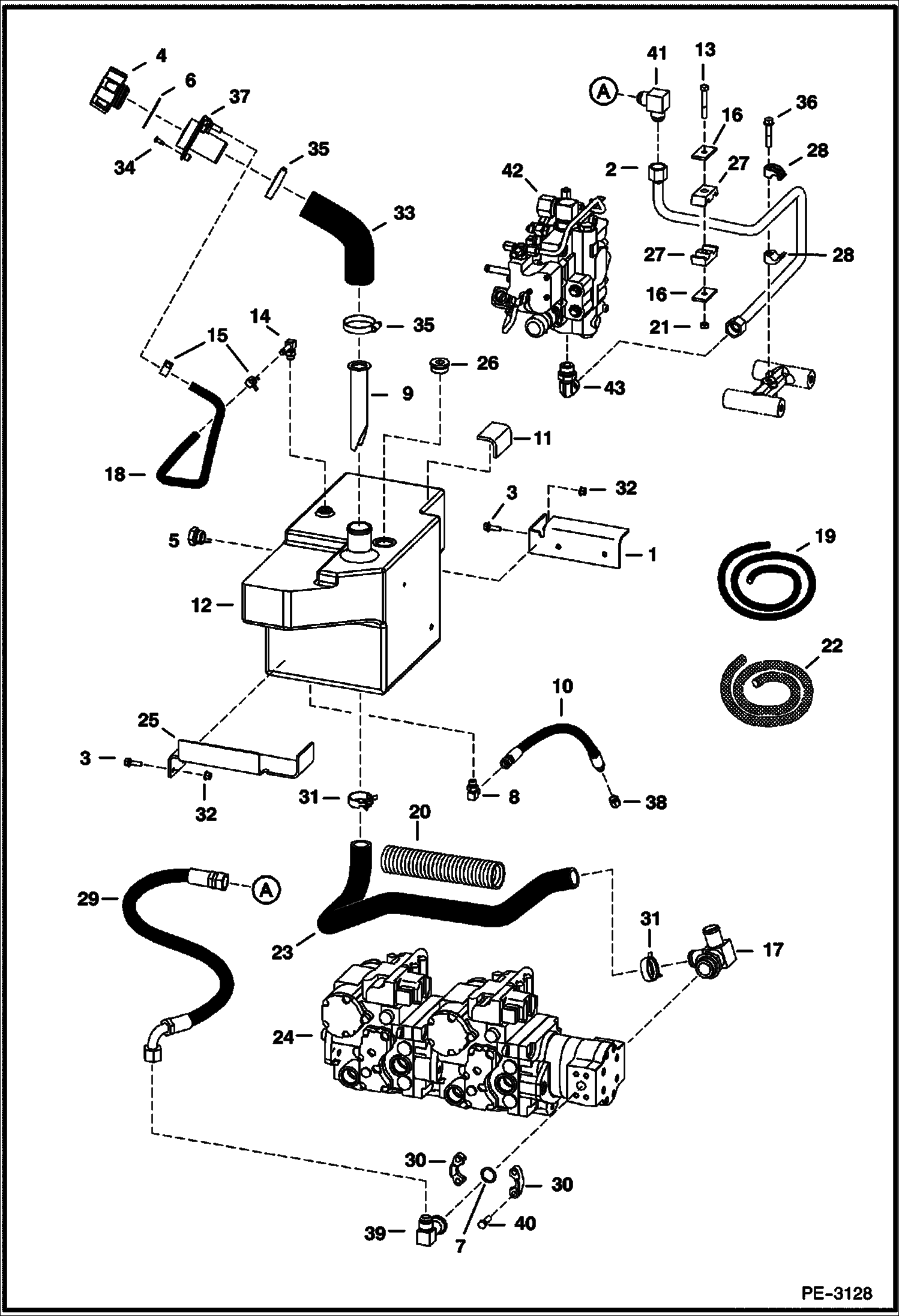

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Tank) (W/SJC) (S/N 525815000, 525912000, 526016000, 526112000 & Above) HYDROSTATIC SYSTEM

1

6718851

BRACKET

2

6736656

TUBELINE

3

35C516

BOLT 10

4

6727475

CAP, OIL HYD breather & fill - Also Order Ref. 6

5

6665915

GAUGE sight

5

79K6

O RING 10

5

6734563

WASHER KIT

5

6734561

WASHER

5

25K30118

O RING 10

6

6700631

GASKET

7

55K214

O-RING

8

17KB0606

FITTING

8

79K6

O RING 10

9

7120881

SCREEN, FILLER Was 6569219 - A

10

7106212

HOSE

11

6578278

PAD

12

6731209

TANK hydraulic

13

17C640

BOLT 5 Use W/Ref. 16 (872229B washer)

13

17C644

BOLT Use W/Ref. 16 (6592507 rect. plate)

14

6727313

ELBOW

15

5HM15

CLAMP

16

872229

WASHER

16

6592507

PLATE Rect.

17

6736408

TEE

17

79K6

O RING 10

18

HOSE NLA - 23'' (584mm) long - Order Ref. 19

19

6586251

HOSE Bulk - sold per foot

20

SHIELD NLA - 10'' (254mm) long - Order Ref. 22

21

59D6

NUT Was 85D6 - A

22

6705749

SHIELD bulk - sold per foot

23

6731496

HOSE

24

PUMP See Illustration HYDROSTATIC PUMP/ B26305 See Illustration HYDROSTATIC PUMP/ B26304

25

6718850

BRACKET

26

47K10

PLUG for the tank flushing hole

27

6592506

CLAMP

28

7100462

CLAMP

29

6736649

HOSE, HYD ASSY 33.50'' (850.9 mm) long

29

7113772

HOSE 29.50'' (749.3 mm) long

30

19J12

CLAMP

31

5HM42

HOSECLAMP

32

83D5

NUT 5

33

6731638

HOSE

34

7106279

BOLT Was 6706517 - B

35

42HL250

CLAMP

36

35C632

BOLT

37

6727354

INLET

38

36K5

CAP

39

7103952

TEE split flange - W/Hole for rear aux. pilot pressure

39

7106040

ELBOW split flange - W/O plug hole

40

17C620

BOLT

41

77F8

ELBOW

42

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378 - control

43

7101797

ELBOW

43

79K12

O RING 10
