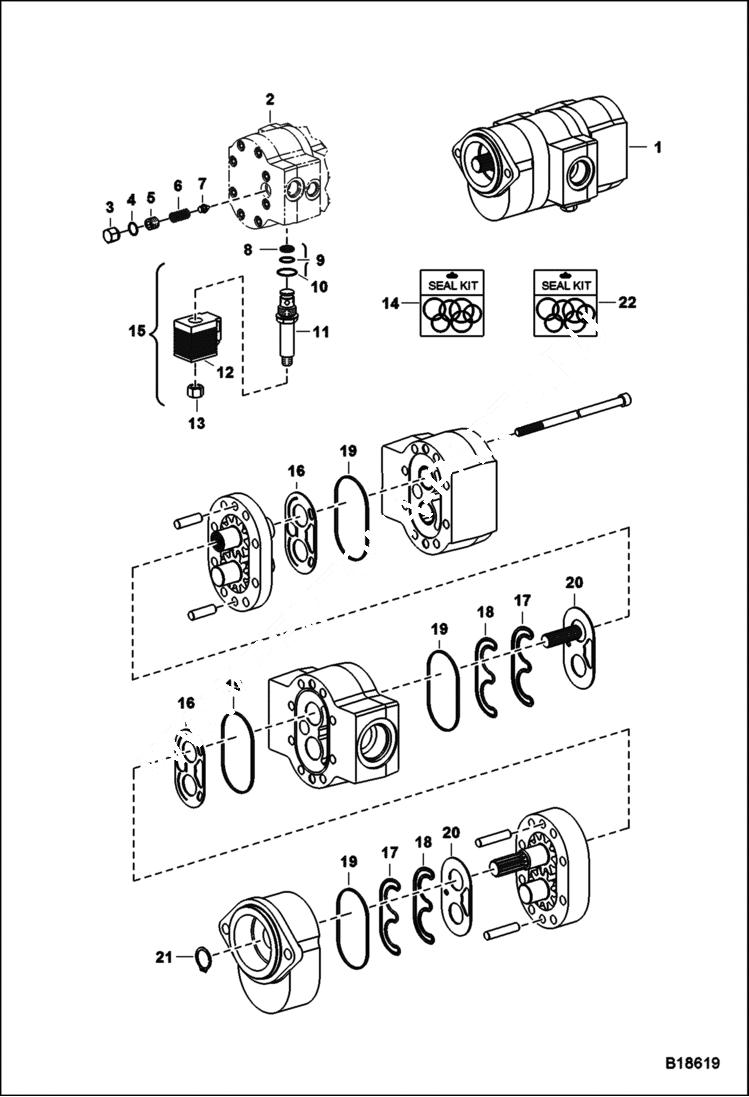

Запчасти Bobcat S-Series HIGH FLOW HYDRAULICS (Double Gear Pump) (S/N 521313912, 521411180, 521512099, 521611029 & Below) HIGH FLOW HYDRAULICS

1

PUMP NLA - 163D1275 - for 6679131 (4445119 ) pump - Order 6689106 pump - Was 6680295 - A

1

PUMP NLA - 163D1304 - for 6681937 (4445119 ) pump - Order 6689106 - Was 6681600 - A

1

6689106

PUMP, GEAR DOUBLE gear - model 163D71049

2

BODY NSS

3

6681486

CAP

4

GASKET NSS - Order 6683205 service kit

5

6681484

SET SCREW

6

SPRING NSS - Order 6683205 service kit

7

RELIEF VALVE NSS - Order 6683205 service kit

8

O-RING NSS - See Ref. 15

9

WASHER NSS - back-up - See Ref. 15

10

O-RING NSS - See Ref. 15

11

VALVE NSS - Order 6683207 valve kit

12

6681491

COIL

13

6681492

NUT

14

6688326

KIT, SEAL for pump - Was 6680407 - A

15

6683205

SEAL KIT Ref. 4, 6-10 & 13

15

6683206

SEAL KIT Ref. 8-10

15

6683207

KIT Ref. 8-11 & 13
