Запчасти Bobcat S-Series HIGH FLOW HYDRAULICS (40 GPM) (Manual Control/AHC/ACS) (S/N 526016700, 526112200, 525815600, 525912050-12067, 525912200 & Above) HIGH FLOW HYDRAULICS

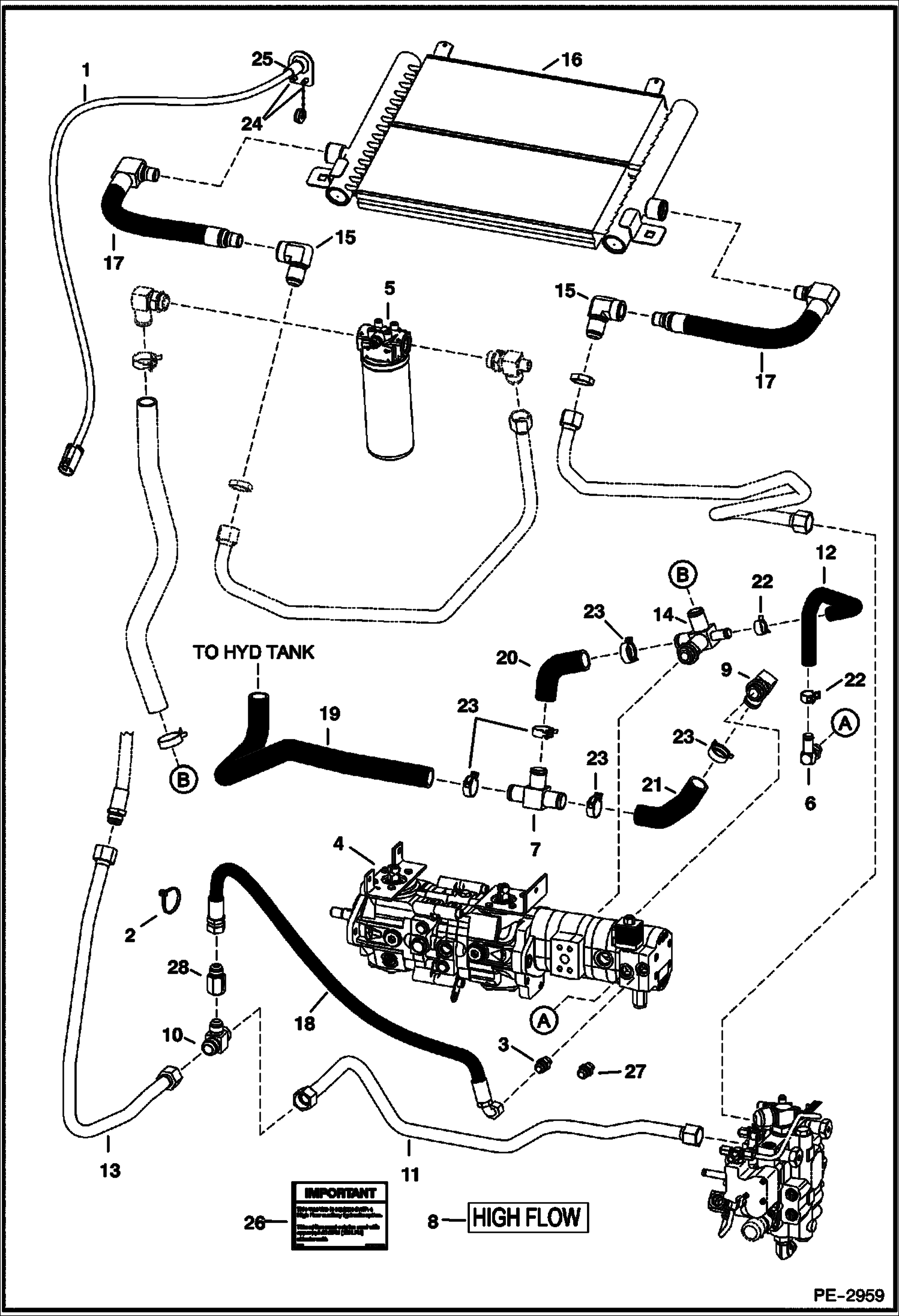

Схема запчастей Bobcat S-Series - HIGH FLOW HYDRAULICS (40 GPM) (Manual Control/AHC/ACS) (S/N 526016700, 526112200, 525815600, 525912050-12067, 525912200 & Above) HIGH FLOW HYDRAULICS

Артикул

Название

Примечание

Количество

1

6718426

HARNESS, LIFT ARM attachment control

2

6624289

STRAP, TIE

3

15KB1008

FITTING, HYD CONNECTOR

3

79K8

O RING 10

4

PUMP See Illustration HYDROSTATIC PUMP/ B22183 See Illustration HYDROSTATIC PUMP/ B22182

5

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

6

6717885

ELBOW

6

79K10

O RING 10

7

6727064

TEE

8

6727913

DECAL high flow

9

6729306

ELBOW

9

79K16

O RING 10

10

6730143

TEE

11

6732993

TUBELINE

12

6733164

HOSE

13

6733309

TUBELINE

14

7102399

TEE

14

79K16

O RING 10

15

7103749

ELBOW female - 16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

15

6690950

O-RING

15

6688523

SEAL KIT STC-16

16

7103750

EXCHANGER, OIL COOLER See BTI391 oil - female -16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

16

6688523

SEAL KIT STC-16

17

7103751

HOSE male -16 STC connector 1.06'' (26,9 mm) O.D.

17

6688523

SEAL KIT STC-16

18

7109144

HOSE

18

6688523

SEAL KIT STC-16

19

7110205

HOSE

20

7110286

HOSE

21

7110339

HOSE

22

5HM24

CLAMP

23

5HM35

HOSECLAMP

24

84G3112

BOLT 5

25

30H35

CLAMP 10

26

7113512

DECAL approved attachments only

27

VALVE NLA - male/male - Order Ref. 3 & 28 - Was 6679943 - A

28

7010242

VALVE, CHECK in-line - Was 7113552 - A

Выбрано товаров: 37
