Запчасти Bobcat S-Series HYDROSTATIC MOTOR & BRAKE (2-Speed) HYDROSTATIC SYSTEM

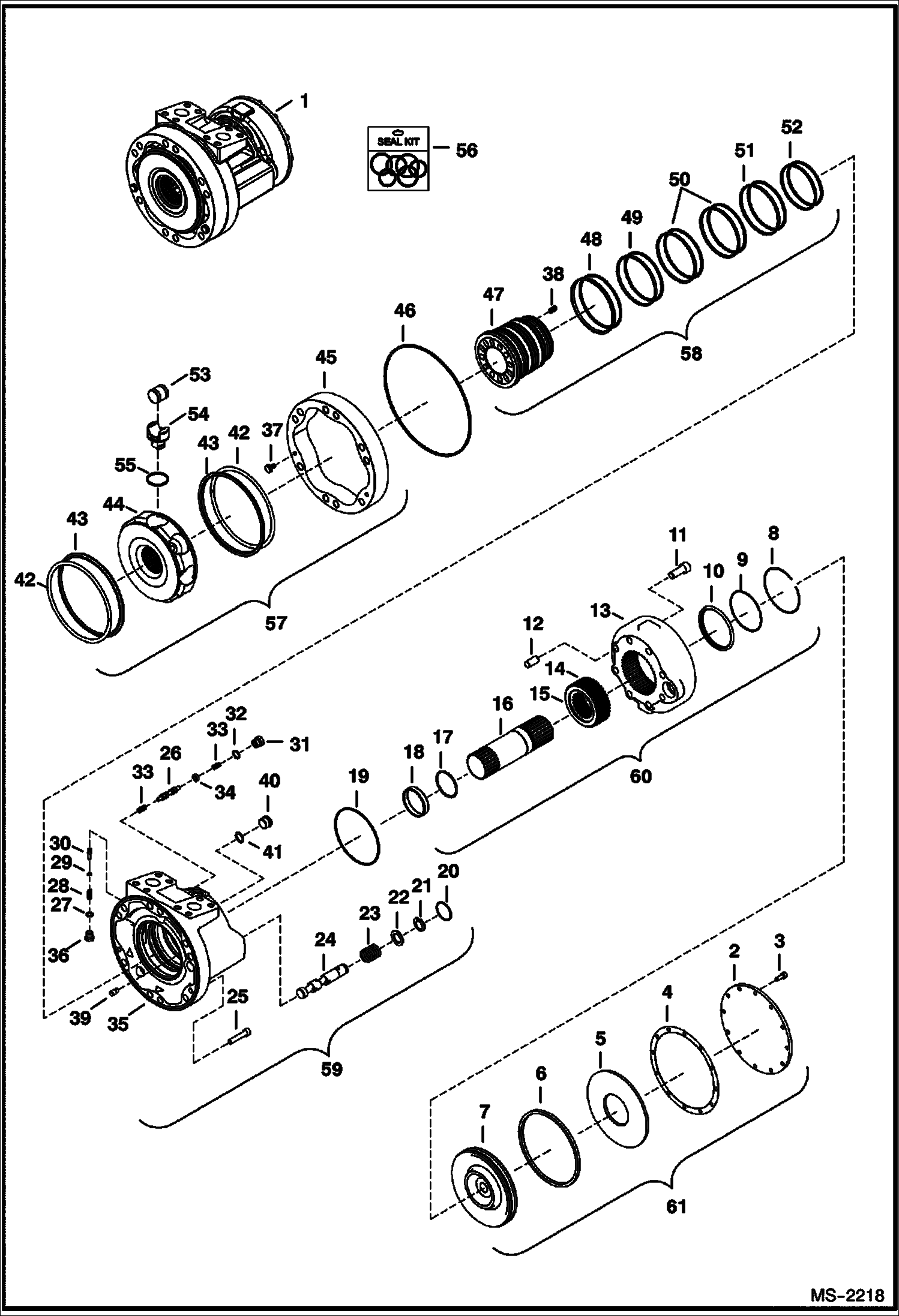

Схема запчастей Bobcat S-Series - HYDROSTATIC MOTOR & BRAKE (2-Speed) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6687826

MOTOR, DRIVE HYD 2-SPD Model R921810406 - Ref. 2-55

2

6675890

COVER

3

6690095

SCREW

4

6675892

GASKET

5

6675897

WASHER disk

6

6675893

O-RING

7

6675889

PISTON

8

6690094

CLAMP

9

6689089

O-RING Was 6690097 - D

10

6689088

QUAD RING

11

6690096

SCREW

12

6691100

PIN Was 6687193 - D

13

6690082

HOUSING

14

6674193

BRAKE DISC inner

14

6690089

SHIM 0,1 mm

14

6674191

SHIM 0,3 mm thick - Was 6690090 - A

15

6674192

BRAKE DISC outer outer - Was 6690087 - D

15

6690089

SHIM 0,1 mm

15

6674191

SHIM 0,3 mm thick - Was 6690090 - A

16

6690084

SHAFT

17

6690081

CLAMP

18

6675898

BUSHING

19

6675863

QUAD RING

20

6689090

O-RING Was 6690077 - D

21

6675885

SNAP RING

22

6690105

WASHER

23

6675883

KIT, WASHER

24

SPOOL NLA - Order Ref. 59

25

6690039

SCREW

26

6675866

SPOOL

27

6676038

O-RING

28

6674344

SPRING

29

6674343

SHIM

30

6675868

POPPET

31

6691227

PLUG Was 6688866 - A

32

6689133

O-RING

33

6674841

SPRING

34

6675867

WASHER

35

Connection NSS - Order Ref. 59

36

6674345

PLUG

37

6688449

LOCATING PIN

38

6674037

SPRING

39

6690068

PIN

40

6689129

PLUG

41

6690080

O-RING

42

6674035

SNAP RING

43

6674036

RING

44

BLOCK NLA

45

6690025

CAM

46

6675864

QUAD RING

47

6690067

RING

48

6675877

SEAL

49

6675878

SEAL

50

6675879

SEAL

51

6675880

SEAL

52

6675881

SEAL

53

6690022

ROLLER Roller

54

6689126

PISTON

55

6690048

RING

56

6690005

KIT, SEAL

57

ROTARY GROUP NSS- Order individual parts or Ref. 1

58

RING AND SEALS KIT NSS- Order individual parts or Ref. 1

59

REAR HOUSING ASSY. NSS- Order individual parts or Ref. 1

60

BRAKE HOUSING ASSY. NSS- Order individual parts or Ref. 1

61

BRAKE PISTON ASSY. NSS- Order individual parts or Ref. 1

Выбрано товаров: 65
