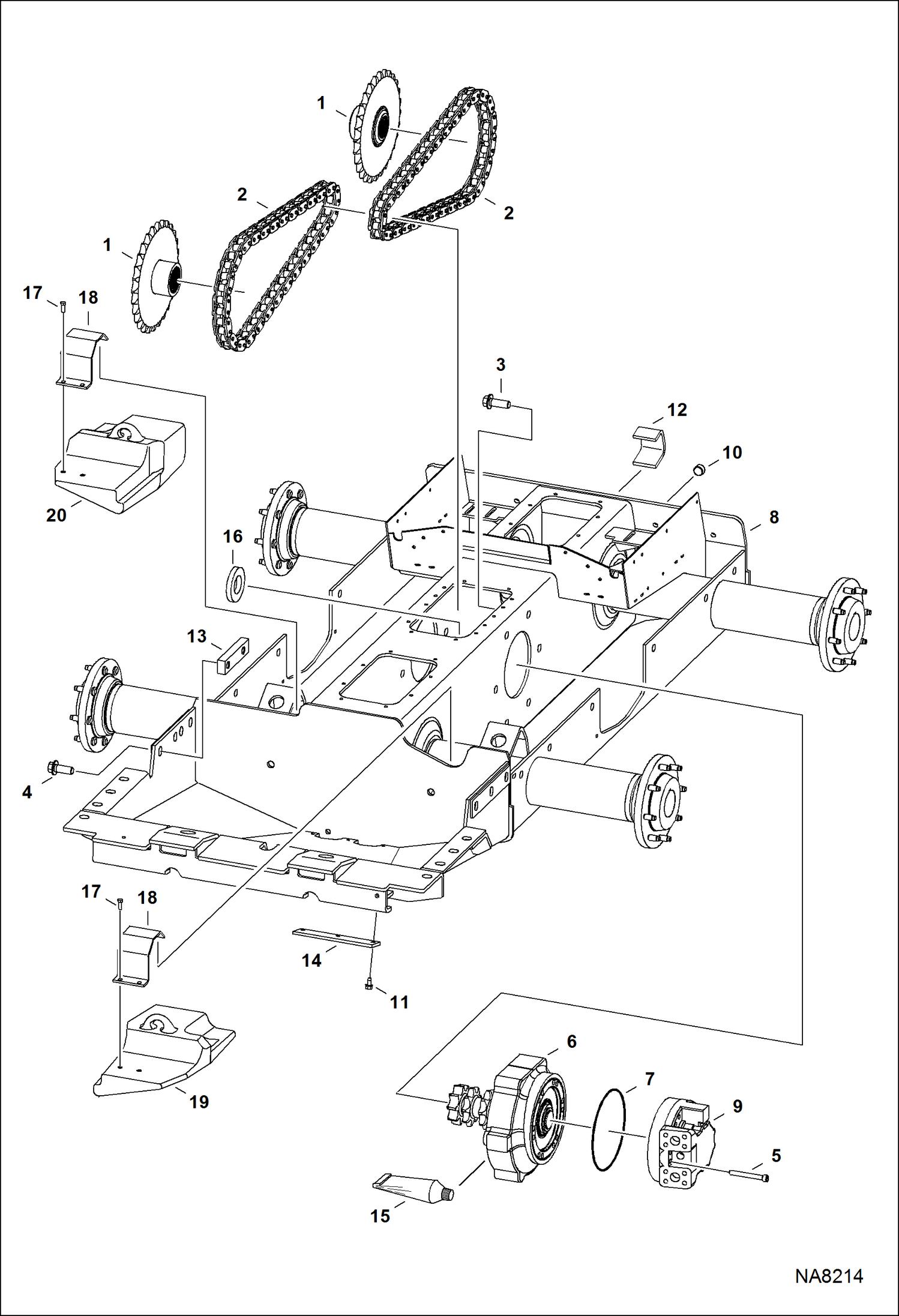

Запчасти Bobcat S-Series DRIVE TRAIN DRIVE TRAIN

1

7134153

SPROCKET See Illustration AXLE/ PE1544

2

7106862

CHAIN, DRIVE endless - 48 pitches

2

6690988

CHAIN, DRIVE service

2

6691078

LINK connecting

3

6678971

BOLT

4

31C1228

BOLT

5

6717806

BOLT

6

MOTOR CARRIER drive motor

7

25K30816

O-RING Was 25K30812 - B,D

8

CHAINCASE See Illustration ENGINE & ATTACHING PARTS/ PE3755 - NLA - frame only - Order 7112333 chaincase, (4) each of 7116850 spacer, 43C860 bolt & (8) each of 7116851 cup, 7161717 mount - Was 7112333

8

7112333

CHAINCASE frame only

9

MOTOR

10

6731121

PLUG chaincase fill

11

84G3712

BOLT 5

12

6706485

HOOK tie down - weld-on

13

7124840

BAR 2 hole threaded

14

6700182

COVER, DRAIN

15

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

16

6680055

MAGNET selectable joystick controls

17

45C616

BOLT

18

6733774

BRACKET

19

6733775

COUNTERWEIGHT

20

6733780

COUNTERWEIGHT
