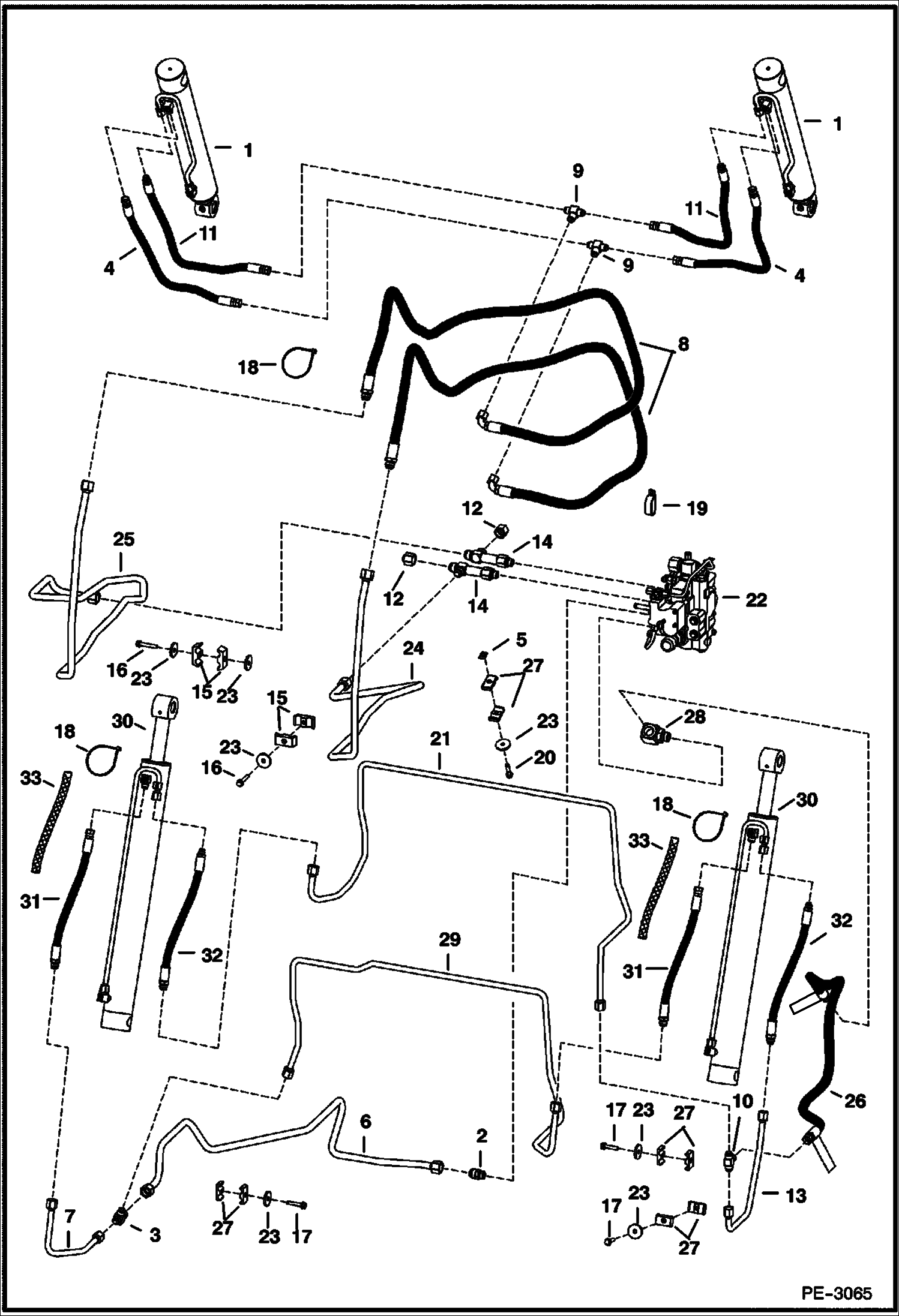

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (W/O Cooling Upgrade) (S/N 531111001 - 15050, 531211001 - 11660) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1520 - tilt

2

15KB1210

FITTING, HYD CONNECTOR

2

79K10

O RING 10

3

6729686

TEE

4

7102090

HOSE

5

6684033

NUT

6

7114812

TUBELINE

7

7114820

TUBELINE

8

6729721

HOSE

9

6716061

TEE

10

6729694

TEE

11

7102089

HOSE

12

36K8

CAP

13

6730858

TUBELINE

14

6730914

TEE

14

79K10

O RING 10

15

6592506

CLAMP

16

84G3740

BOLT

17

84G3732

BOLT

18

6624289

STRAP, TIE

19

31H49

CLAMP

20

84G3728

BOLT

21

7114821

TUBELINE

21

7114821

TUBELINE

22

VALVE

23

872229

WASHER

24

7114814

TUBELINE tilt

24

7126054

TUBELINE

25

7114815

TUBELINE tilt

25

26

6729604

HOSE available only as an assembly W/two danger decals installed

26

79K10

O RING 10

26

6809511

DECAL, DANGER

27

6701893

CLAMP

28

7109623

ELBOW Was 6817335 - A

28

79K10

O RING 10

29

7114813

TUBELINE

29

7114813

TUBELINE lift

30

CYLINDER lift

31

6691272

HOSE Was 7120055 - A

32

7120439

HOSE ASSEMBLY

33

7124301

GUARD cut to fit
