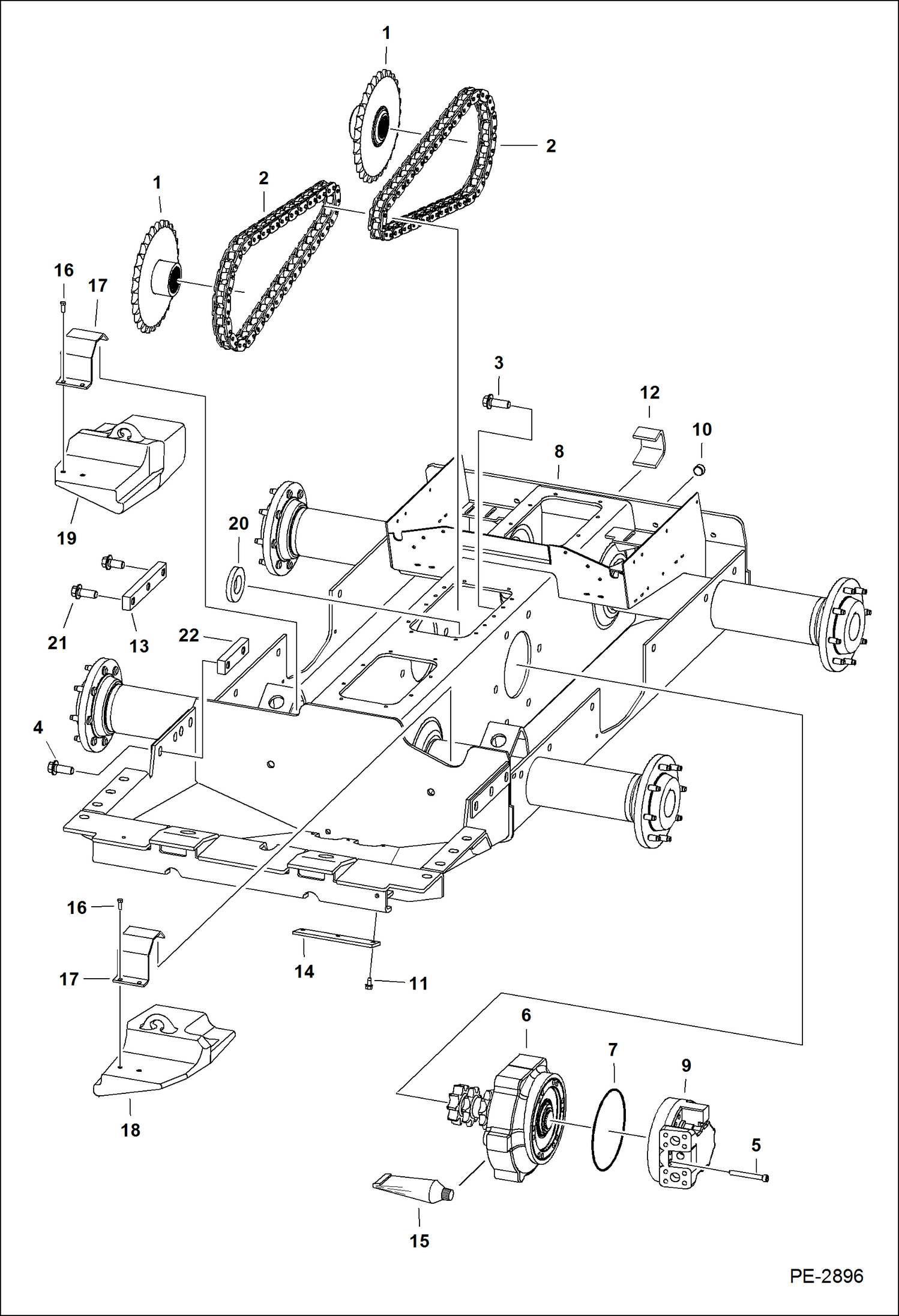

Запчасти Bobcat S-Series DRIVE TRAIN DRIVE TRAIN

1

7134153

SPROCKET See Illustration AXLE/ PE1544 - Was 7106737 - A

2

7106862

CHAIN, DRIVE endless - 48 pitches

2

6690988

CHAIN, DRIVE service

2

6691078

LINK connecting

3

6678971

BOLT

4

31C1228

BOLT

5

6717806

BOLT

6

MOTOR CARRIER See Illustration MOTOR CARRIER/ PE1543 See Illustration MOTOR CARRIER/ PE1395 - Drive Motor

7

25K30816

O-RING Was 25K30812 - B,D

8

7112333

CHAINCASE frame only

9

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2218 See Illustration HYDROSTATIC MOTOR/ MS2199

10

6731121

PLUG chaincase fill

11

84G3712

BOLT 5

12

6706485

HOOK tie down - weld-on

13

6706857

BLOCK 3 hole threaded

14

6700182

COVER, DRAIN

15

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

16

45C616

BOLT

17

6733774

BRACKET

18

6733775

COUNTERWEIGHT RH

19

6733780

COUNTERWEIGHT LH

20

6680055

MAGNET selectable joystick controls

21

31C1224

BOLT

22

7124840

BAR 2 hole threaded
