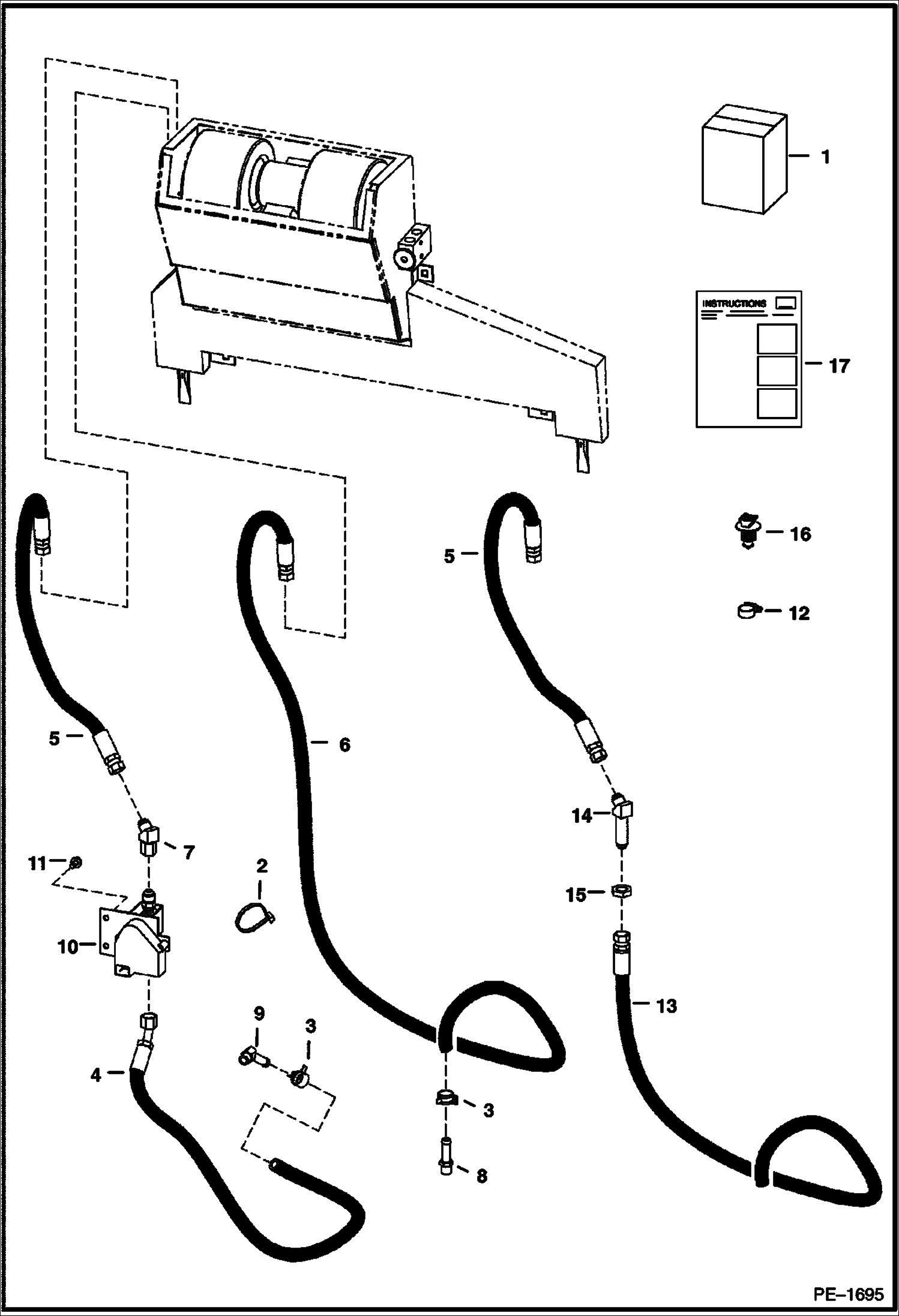

Запчасти Bobcat S-Series HEATER & A/C (Heater Plumbing Kit)(Threaded Hose Connections) ACCESSORIES & OPTIONS

1

KIT See Illustration HEATER & A/C/ PE1034 NLA - Ref. 2-9 - W/threaded hose connectors - Order components - Was 6733960 - A

2

6624289

STRAP, TIE

3

5HM20

CLAMP

4

6733432

HOSE

5

6732817

HOSE

5

6732817

HOSE not in kit

6

6733433

HOSE Use in place of Ref. 5 & 13-15

7

12K6

UNION Was 12KN00006B - A

8

6731084

ADAPTER

9

6731085

ELBOW

10

VALVE See Illustration HEATER & A/C/ PE1034 heater - not in kit

11

84G3110

SCREW not in kit

12

6669091

CLIP

13

6734519

HOSE not in kit

14

46K6

ELBOW 45 degrees - not in kit

15

86F6

NUT not in kit

16

6678666

MOUNT, STRAP TIE push in - Use W/tie strap

17

6902356

INSTRUCTIONS
