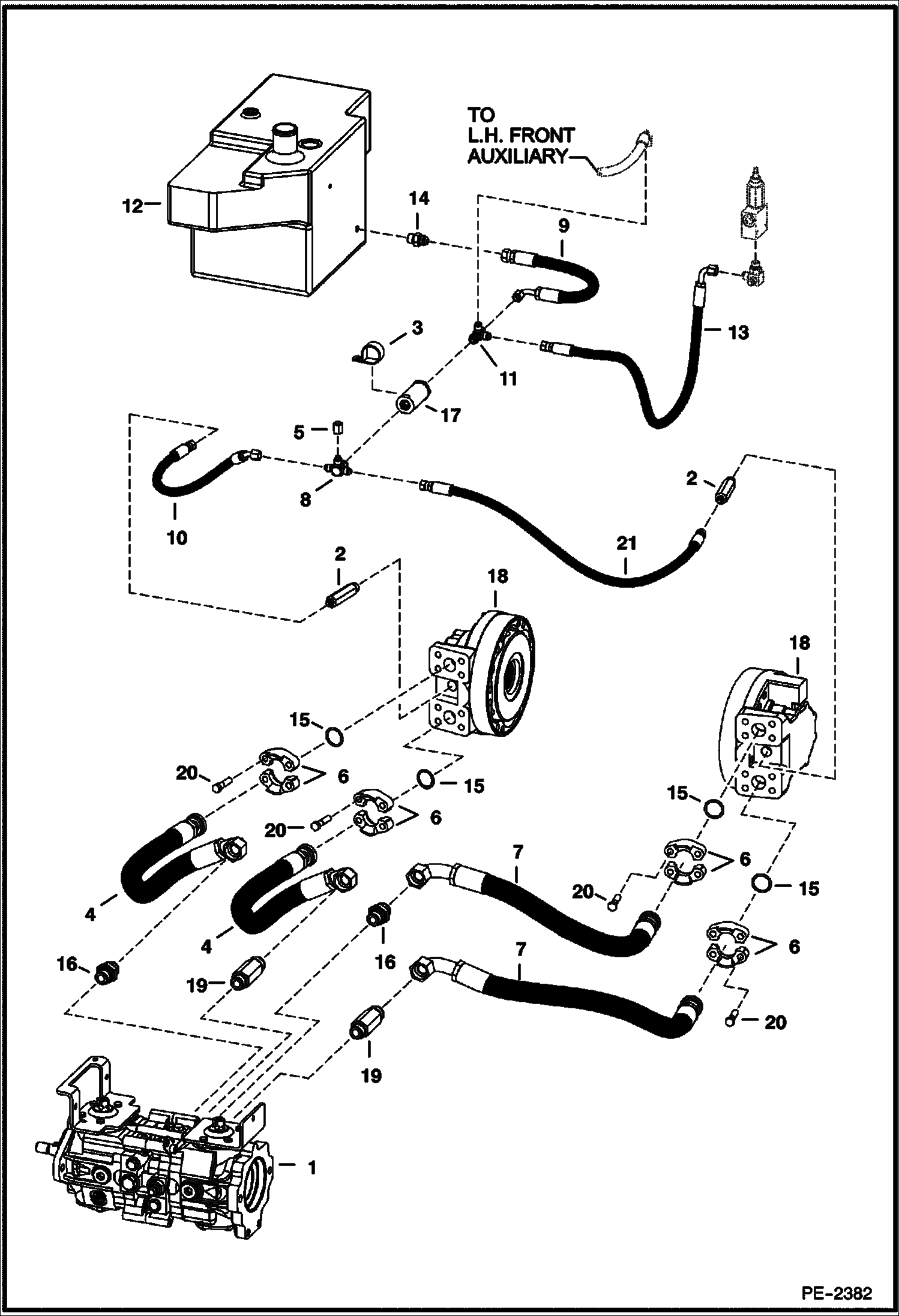

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Motors) (W/Manual Controls) (S/N 526016000, 526112000, 525815000, 525912000 & Above) HYDROSTATIC SYSTEM

1

PUMP See Illustration HYDROSTATIC PUMP/ B26304 See Illustration HYDROSTATIC PUMP/ B17765

2

6717306

ADAPTER

2

79K6

O RING 10

3

30H79

CLAMP

4

6673954

HOSE mega seal - standard control

5

36K5

CAP

6

20J16

FLANGE

7

6679141

HOSE 33'' (838,2 mm) long - mega seal - standard control

8

6725497

CROSS

8

79K6

O RING 10

9

6733219

HOSE

10

6732484

HOSE

11

6718031

TEE

11

79K6

O RING 10

12

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE2675 - hydraulic

13

6732483

HOSE

14

15KB0808

FITTING, HYD CONNECTOR

14

79K8

O RING 10

15

55K219

O'RING

16

15KB1612

FITTING, HYD CONNECTOR

16

79K12

O RING 10

17

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR/ B17125 - drive

19

6716243

ADAPTER

19

79K12

O RING 10

20

17C728

BOLT

21

7126010

HOSE Was 6732485 - A
