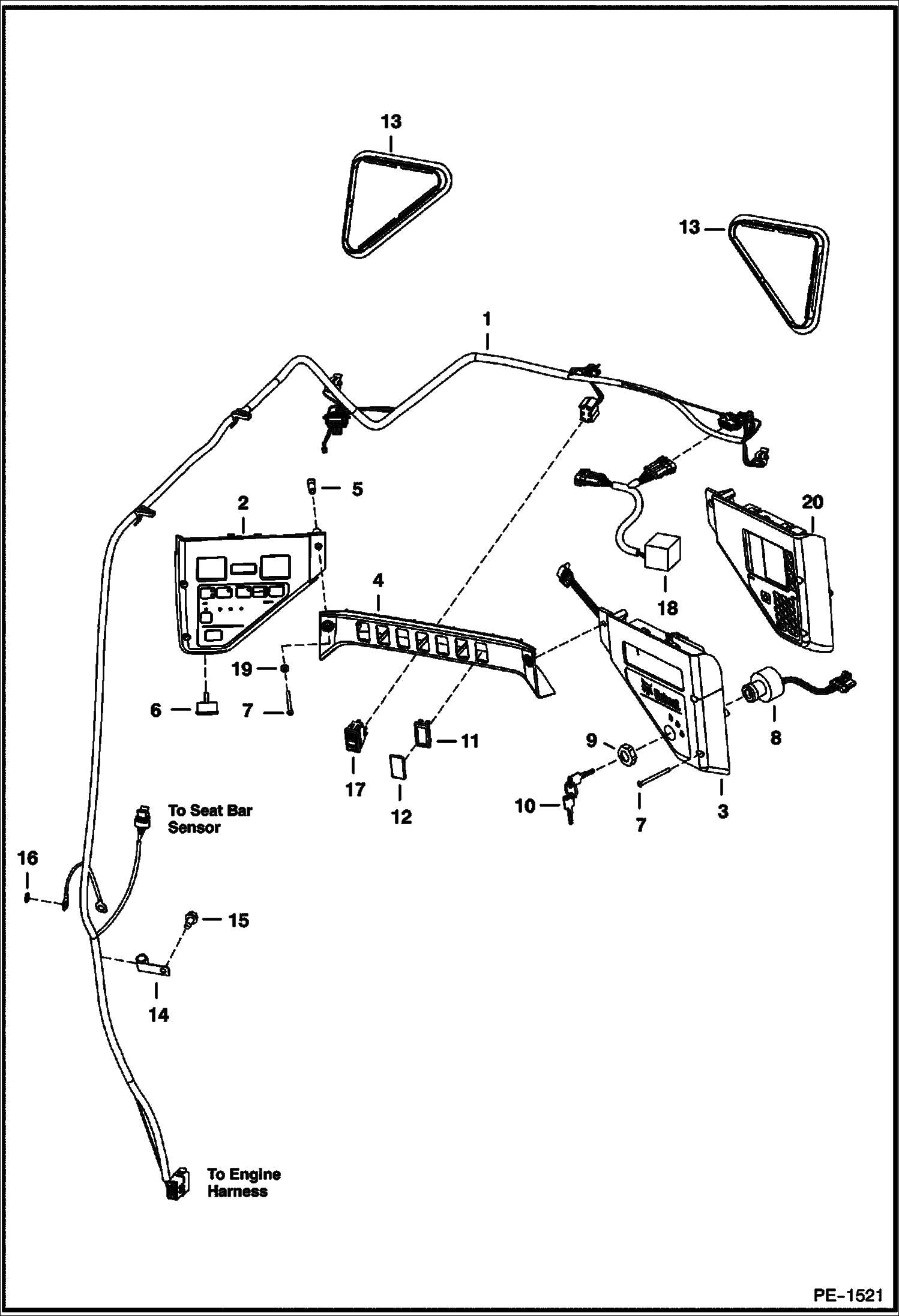

Запчасти Bobcat S-Series CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6727178

HARNESS

2

PANEL NLA - L.H. - W/Ref. 6 - gauges lit by bulbs - Order 6689754 panel - Was 6688405 - A

2

6675982

PLUG service part - covers the backlighting service hole

2

6679855

BULB

2

6689754

PANEL INSTRUMENT LH LH - W/Ref. 6 - lit guages

3

6688404

PANEL, KEY STANDARD RH - W/Ref. 8 & 9 - Was 6678681 - A

4

6679845

CROSSMEMBER

5

6675033

INSERT threaded

6

6679856

ALARM W/nut

7

7105983

BOLT Was 6719084 - A

8

SWITCH NLA - W/Ref. 9 & 10 - Order 6693245 switch, 6693241 key, 7000328 adapter & 6697965 harness - Was 6679842 - A

8

6693245

SWITCH, IGN W/Ref. (7119081 nut) - Also Order Ref. 10 (6693241 key)

8

7000328

ADAPTER, SWITCH IGN for 6693245 switch - Was 7000329 - A

8

6697965

HARNESS for 6693245 switch

9

6674202

NUT for NLA 6679842 switch

9

7009081

NUT for 6693245 switch

10

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 single key W/O ring - Use W/NLA 6679842 switch & 6693245 switch

11

6665314

PLUG

12

6665314

PLUG Was 6807730 - B

13

6674403

COVER

14

6675171

CLAMP

15

84G3712

BOLT 5

16

6E5

WASHER

17

6676536

SWITCH park brake

18

6683171

CONTROLLER boost - for Ref. 20 (6688403 Panel)

19

25E10

WASHER

20

6688403

PANEL deluxe - RH - keyless - Was 6686510 - A
