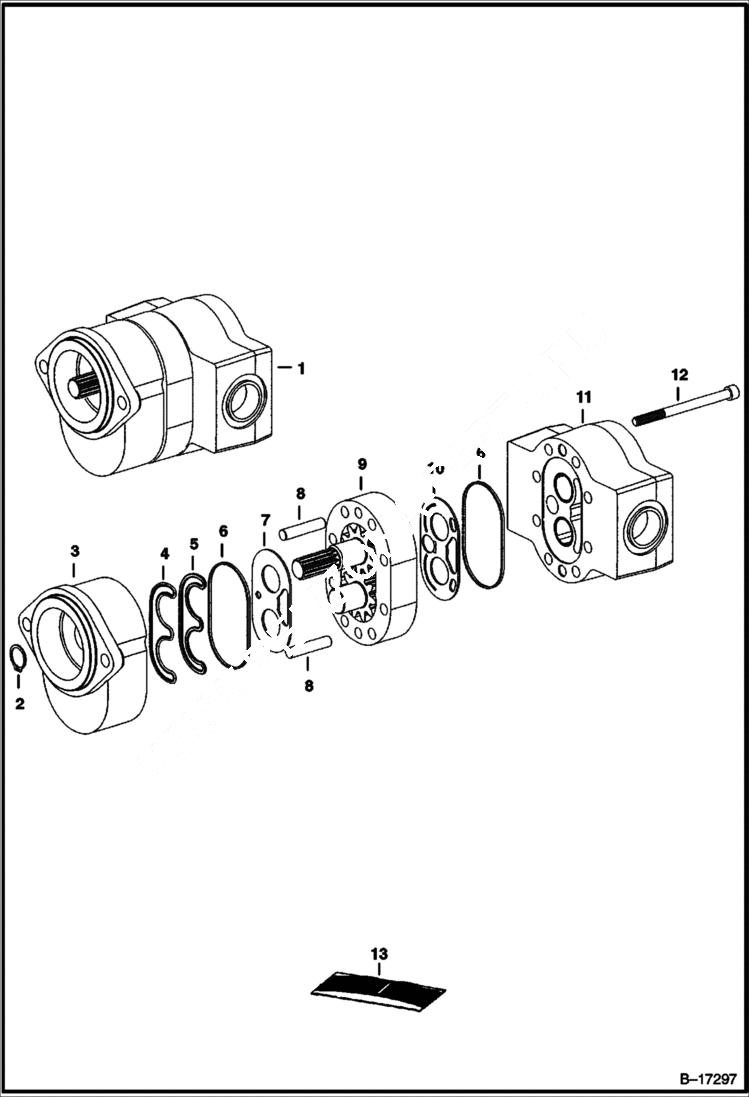

Запчасти Bobcat S-Series GEAR PUMP HYDROSTATIC SYSTEM

1

GEAR PUMP NLA - standard flow - Order 6681596 pump - model 163D1185 - Was 6678224 - A

1

GEAR PUMP NLA - model 163D1301 - Was 6681596 - A

1

6687867

PUMP, GEAR model 163D70003

2

COVER NSS

3

SNAP RING NSS

4

SEAL NSS - back-up

5

SEAL NSS - load

6

SEAL NSS

7

WEAR PLATE NSS

8

PIN NSS

9

SECTION NSS

10

WEAR PLATE NSS

11

BODY NSS

12

BOLT NSS

13

6678732

SEAL KIT Ref. 4-7 & 10

13

6688325

KIT, SEAL Ref. 4-7 & 10 - for 6687867
