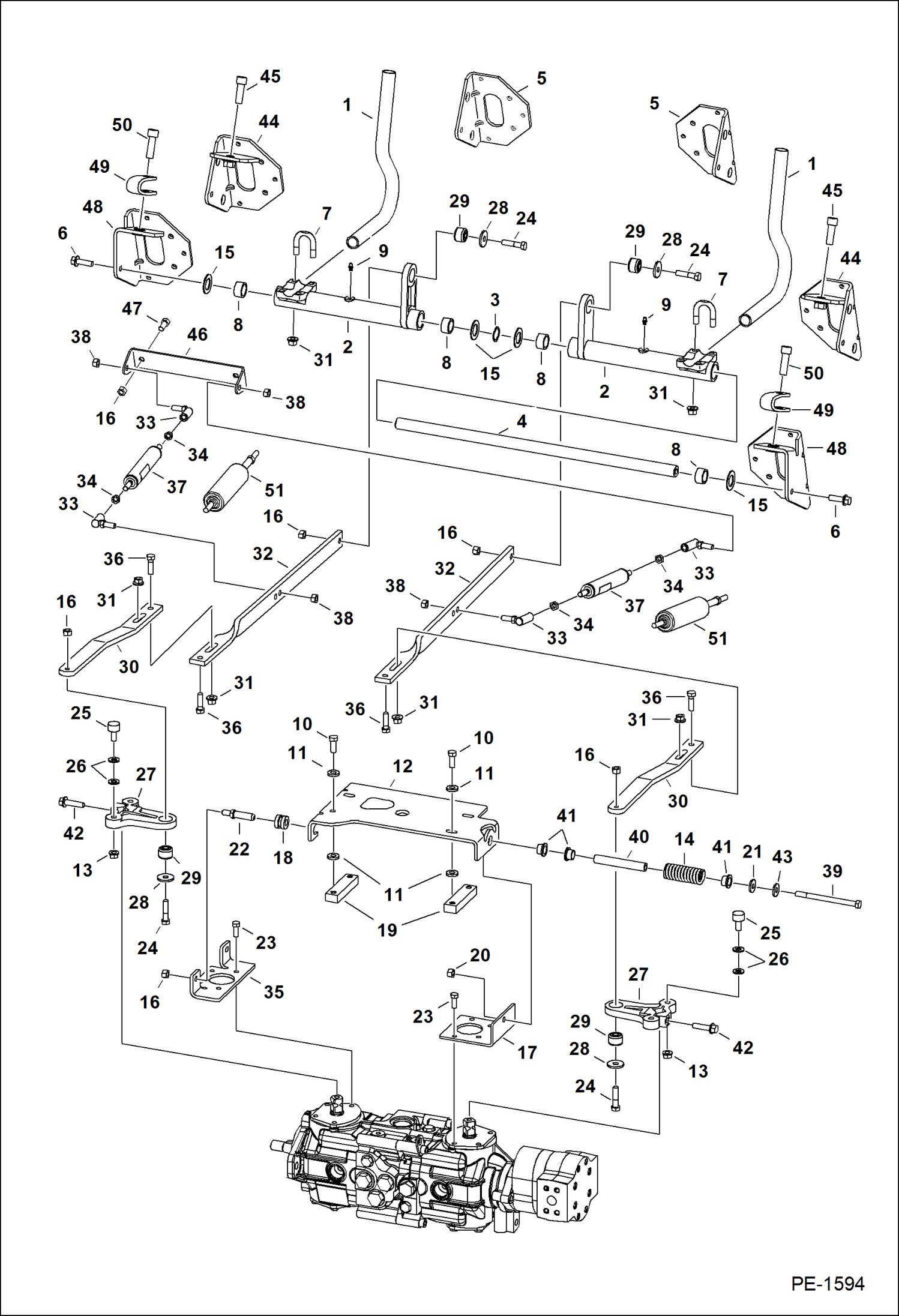

Запчасти Bobcat S-Series HAND CONTROLS HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - 1.0475'' (26,2 mm) I.D. hole for Ref. 29 (6678067 bushing) - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (6518200 grease zerk) - Order 7110571 bellcrank, Ref. 9 (10H35 grease zerk) & (2) o

2

BELLCRANK NLA - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (10H35 grease zerk) - Order 7110571 bellcrank & (2) of Ref. 8 (6703879 bushing) - Was 7110572 - A

2

7110571

BELLCRANK, STEERING W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk)

3

6599741

WASHER wave

4

6716545

ROD

5

6577230

BRACKET

6

45C620

BOLT

7

6732997

U-BOLT - Was 6700768 - A

8

6673710

BEARING, NEEDLE Use W/Ref. 2 (NLA/ 7101048 & NLA/ 7110572 bellcranks)

8

6703879

BUSHING, PLASTIC W/tab - Use W/Ref. 2 (7110571 bellcrank)

9

6518200

FITTNG, GREASE 10 press fit - Use W/Ref. 2 (NLA/ 7101048 bellcrank)

9

10H35

FITTING, GREASE 10 threaded - Use W/Ref. 2 (NLA/ 7110572 bellcrank & 7110571 bellcrank)

10

8C616

SCREW

11

6557831

WASHER

12

6716116

MOUNT - Was 6706095 - D

13

98D6

NUT

14

6701535

SPRING

15

6716916

WASHER

16

95D6

NUT

17

6576196

MOUNT

18

6706098

GUIDE

19

6702716

BLOCK

20

57D6

NUT 5

21

6563914

WASHER

22

6577058

PIN

23

1CM820

BOLT

24

17C626

BOLT

25

6673789

BEARING

26

25E17

WASHER 5

27

6729956

LEVER, PINTLE

28

619021

WASHER, 5

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6731253

LINK

31

83D6

NUT 5

32

6716117

LINK

33

6599744

BALL JOINT

34

8D6

NUT 5

35

6706096

MOUNT

36

17C620

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 51 - Was 6649551 - A

38

96D6

NUT

39

17C680

BOLT

40

6715164

SLEEVE, SPRING

41

6715163

BUSHING, PRESS FIT

42

35C624

BOLT

43

25E24

WASHER AHC

44

BRACKET NLA - R.H. - Order Ref. 48-50 - Was 6733022 - A

44

BRACKET NLA - L.H. - Order Ref. 48-50 - Was 6733024 - A

45

93G824

BOLT - Was 73G824 - A

46

6706106

MOUNT

47

17C616

BOLT 5

48

7128600

BRACKET RH

48

7128601

BRACKET LH

49

7121779

PAD

50

73G828

BOLT

51

7188108

GAS SPRING
