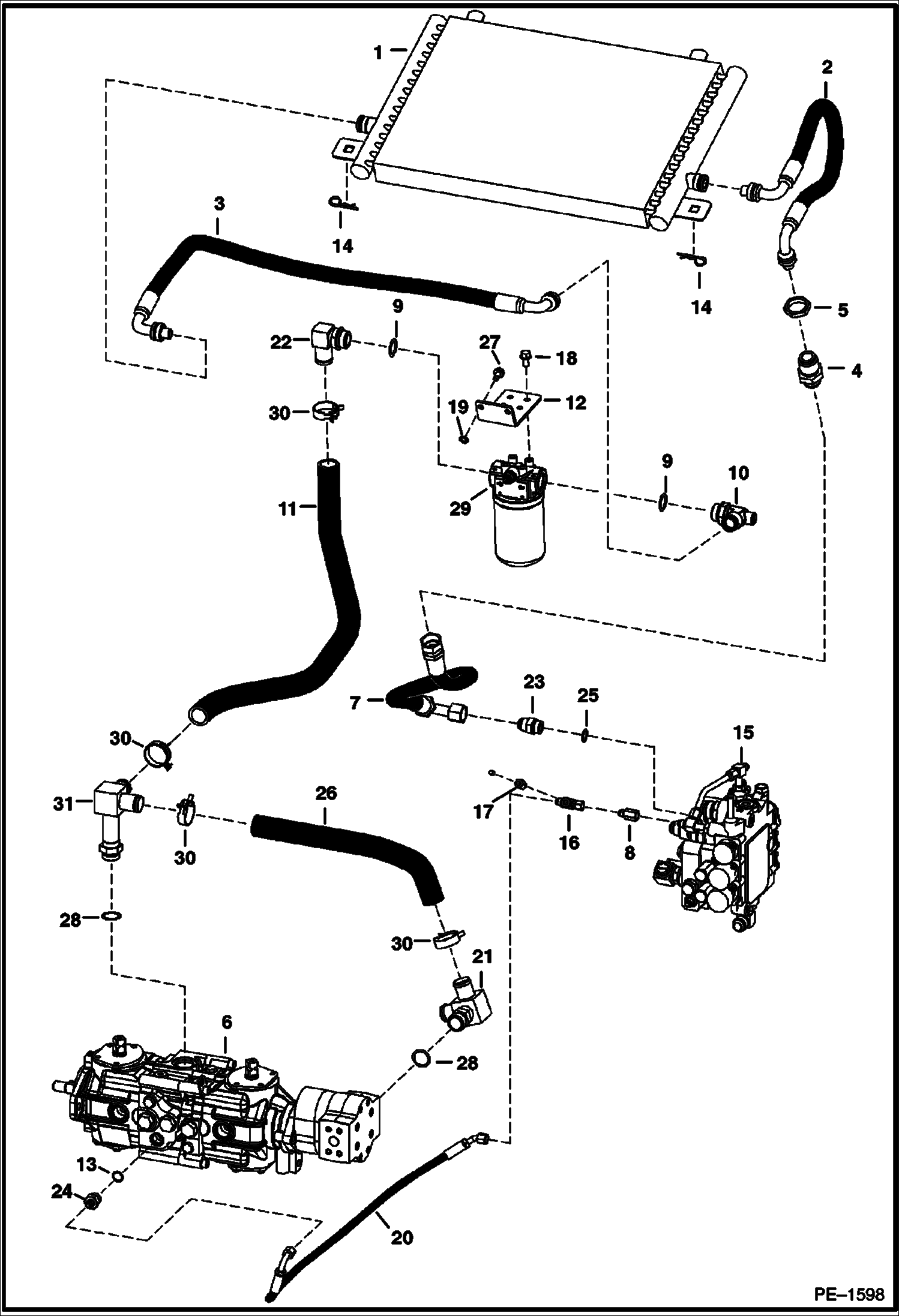

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Cooler) HYDROSTATIC SYSTEM

1

6678156

COOLER oil - female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

1

6681501

SEAL KIT Was 6674798 - A

2

6678773

HOSE

2

6681501

SEAL KIT Was 6674798 - A

3

6678772

HOSE

3

6681501

SEAL KIT Was 6674798 - A

4

6678832

ELBOW

4

6690950

O-RING

5

61E16

NUT

6

PUMP See Illustration HYDROSTATIC PUMP/ D2427 See Illustration HYDROSTATIC PUMP/ B17765

7

6731145

HOSE

8

6672766

CHECK VALVE

9

99K12

O RING

10

6678771

TEE W/Ref. 9

10

6690949

O-RING

10

6674798

REPAIR KIT includes internal retaining ring (1), backup ring (1), & O-ring (1)

11

6729307

HOSE

12

6719446

MOUNT

13

99K10

O'RING tapered boss face

13

79K10

O RING 10 flat boss face

14

1318565

COTTER PIN

15

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1738

16

6718660

TEE

17

6563922

SNUBBER

18

35C612

BOLT

19

6E6

WASHER

20

6725090

HOSE

21

6730126

TEE W/Ref. 28

21

97K6

O RING flared end

22

6697791

ELBOW W/Ref. 9 - Was 6729306 - B

23

15KB1612

FITTING, HYD CONNECTOR W/Ref. 25 - Was 6715878 - A

24

ADAPTER NLA - W/Ref. 13 - tapered boss face - Was 6717173 - A

24

97K6

O RING flared end

24

15KB0610

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

25

79K12

O RING 10

26

6729484

HOSE

27

84G3710

SCREW

28

99K16

O-RING

29

6678155

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

30

5HM42

HOSECLAMP

31

6729305

CROSS W/Ref. 28
