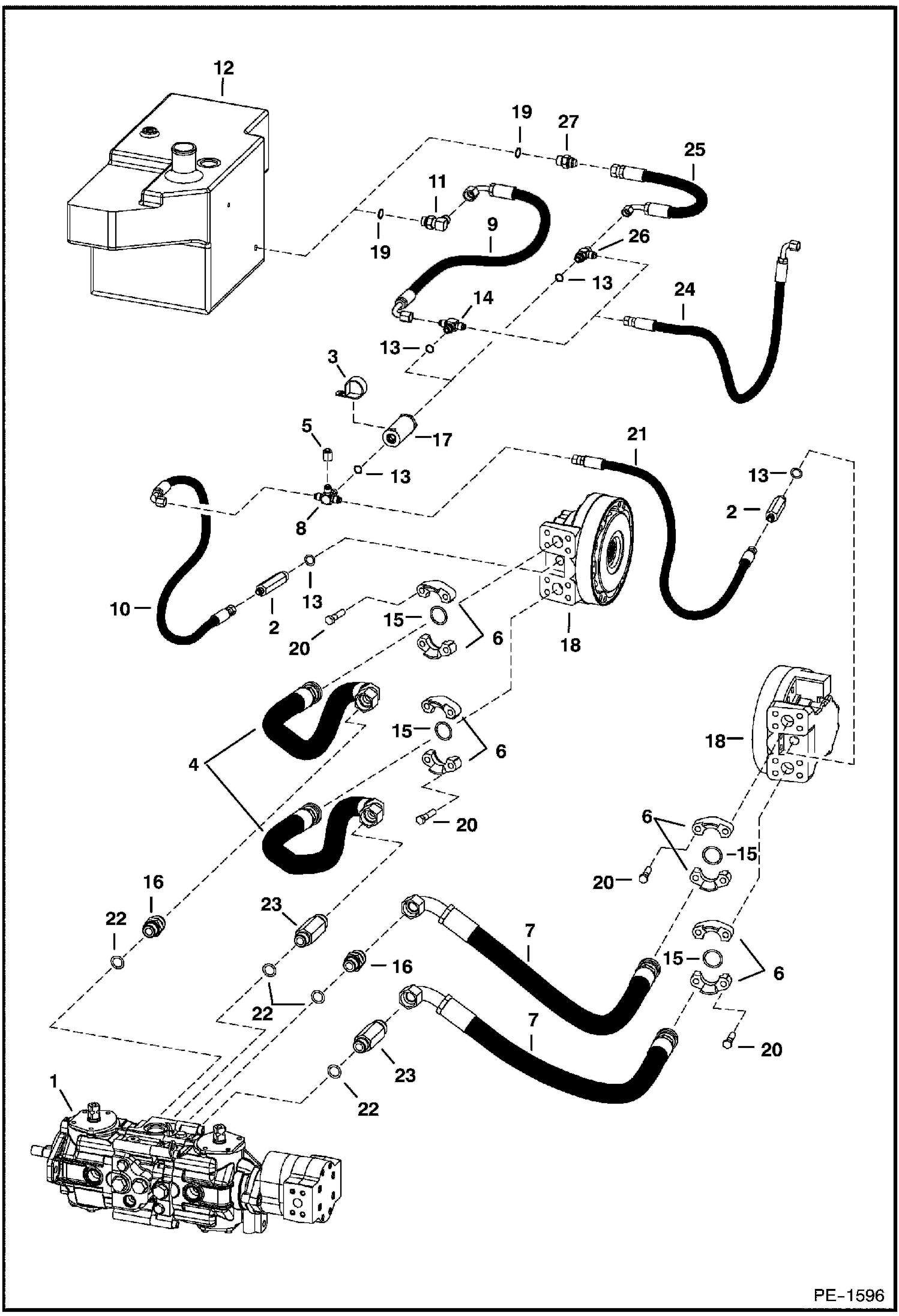

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Motors) HYDROSTATIC SYSTEM

1

PUMP See Illustration HYDROSTATIC PUMP/ D2427 See Illustration HYDROSTATIC PUMP/ B17765

2

6717306

ADAPTER W/Ref. 13 - tapered boss face

2

97K6

O RING flared end

3

30H79

CLAMP Was 30H000060B - B

4

6673954

HOSE mega seal - SEE NOTE

5

36K5

CAP

6

20J16

FLANGE

7

6679141

HOSE 33'' (838,2 mm) long - mega seal - SEE NOTE

8

6725497

CROSS W/Ref. 13 - tapered boss face

8

97K6

O RING flared end

9

6731162

HOSE

10

6732484

HOSE

11

17KB0808

FITTING, HYD ELBOW W/Ref. 19 - tapered boss face - Was 17KN00006B - A

11

97K8

O-RING flared end

12

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE1597 HYDRAULIC

13

99K6

O RING tapered boss face

14

19KB0606

TEE W/Ref. 13 - Was 19KV00005B - A

14

97K6

O RING flared end

15

55K219

O'RING

16

ADAPTER NLA - W/Ref. 22 - 2.16''(55mm) long - Was 6715878 - A

16

15KB1612

FITTING, HYD CONNECTOR W/Ref. 22 - 2.38''(60mm) long

17

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR/ B17125

19

99K8

O-RING

20

17C728

BOLT

21

7126010

HOSE Was 6732485 - A

22

79K12

O RING 10 For 15KB-1612 connector

22

75K12

O'RING 10 For 6715878 connector

23

6716243

ADAPTER W/Ref. 22

24

6732483

HOSE

25

6733219

HOSE (Better if you BPV)

26

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 13 - (Better if you BPV)

27

15KB0808

FITTING, HYD CONNECTOR W/Ref. 19 - (Better if you BPV)
