Запчасти Bobcat S-Series CONTROL PEDALS HYDRAULIC SYSTEM

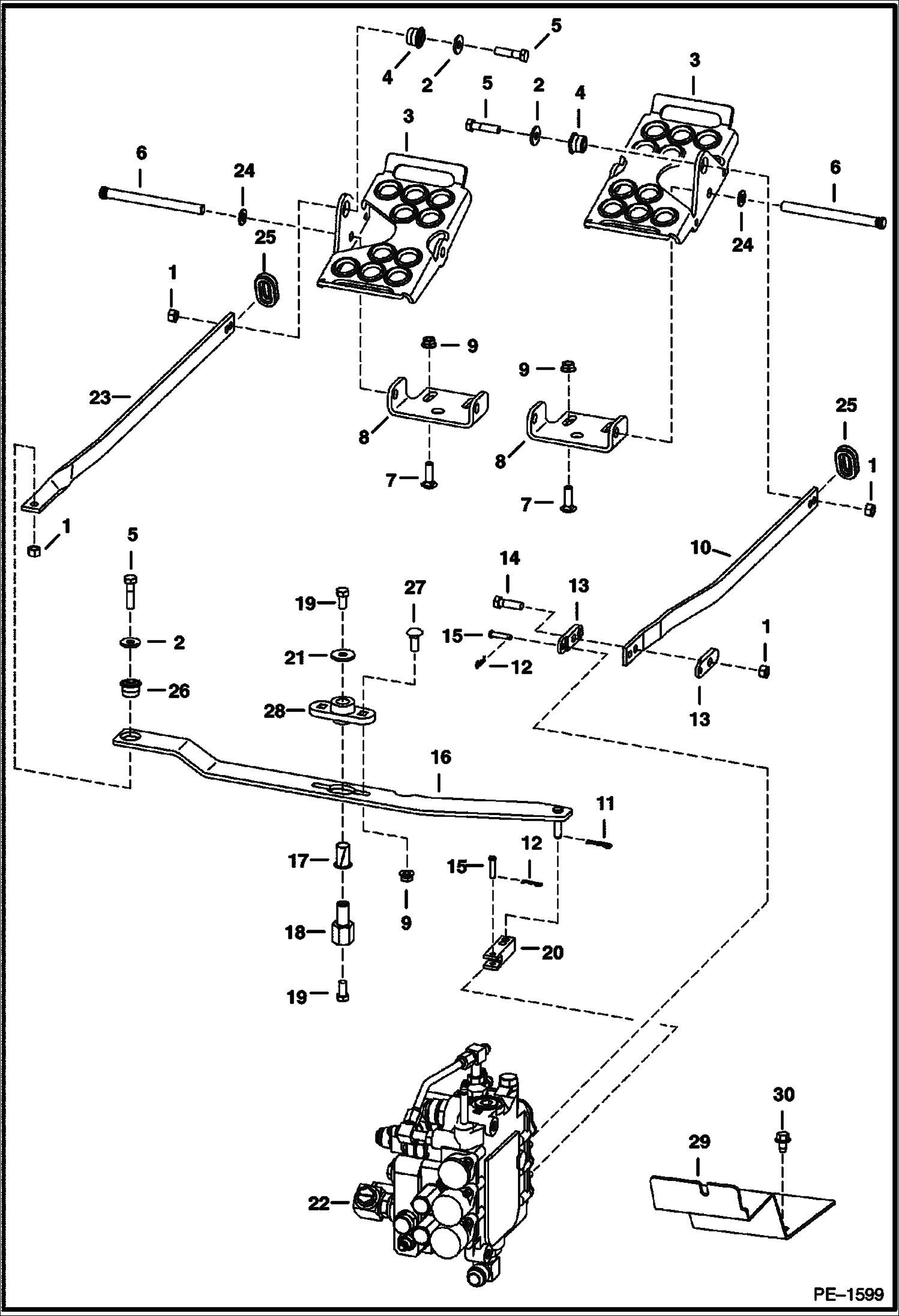

Схема запчастей Bobcat S-Series - CONTROL PEDALS HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

95D6

NUT

2

6563914

WASHER

3

PEDAL NLA - Order 7115219 - Was 6726680 - A

4

6665701

BUSHING, PRESS FIT

5

17C624

BOLT 5

6

6564657

PIN

7

37C620

BOLT

8

6726679

MOUNT

9

57D6

NUT 5

10

6731251

BAR

11

1306637

CLIP

12

6513495

COTTER PIN

13

6708009

LINK

14

17C620

BOLT

15

6564654

PIN

16

6718285

LEVER

17

6512026

BUSHING

18

6718283

RETAINING NUT

19

17C612

BOLT 5

20

6706105

YOKE

21

619021

WASHER, 5

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1745 See Illustration HYDRAULIC CONTROL VALVE/ MS1738 CONTROL

23

6731252

BAR

24

25E000021B

WASHER Use if serrations on pins are too long

25

6577961

GROMMET

26

6685060

BUSHING, TORSION Was 6678067 - A

27

37C616

BOLT

28

6708043

BUSHING

29

6737095

STEP RH

29

6737120

STEP LH

30

84G3710

SCREW

Выбрано товаров: 31
