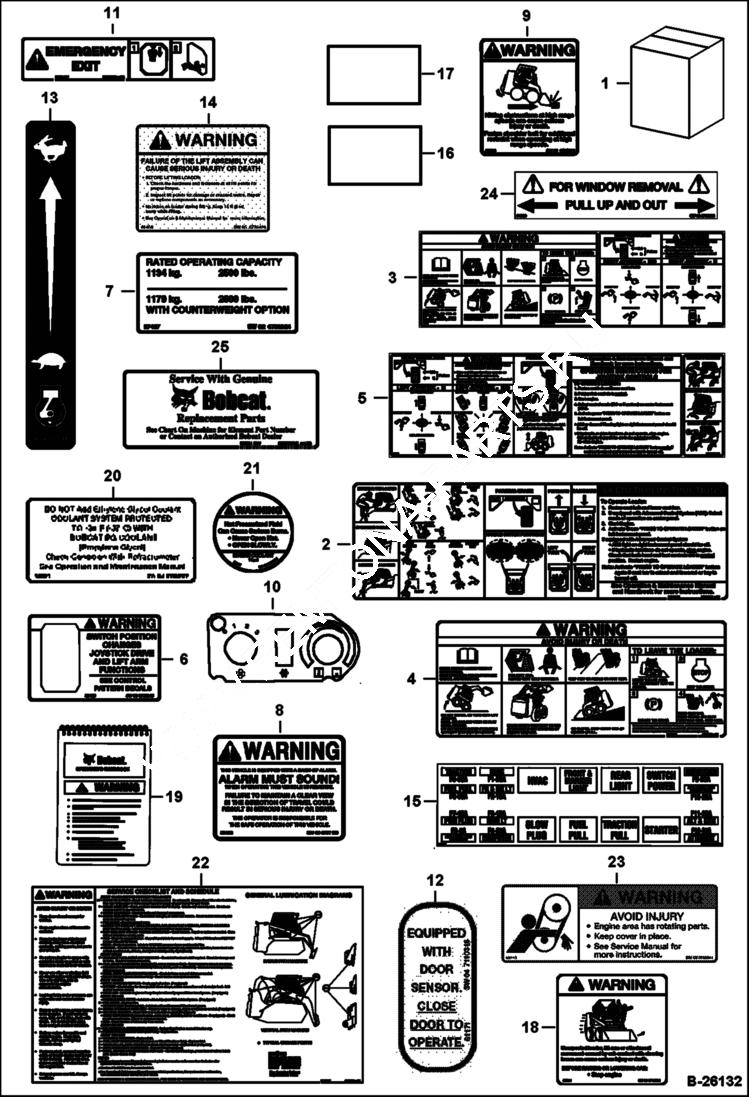

Запчасти Bobcat S-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6904765

DECAL KIT Except where noted, includes decals from this ILL. & ILL. B26133

1

7120290AR

KIT, TRANSLATION S250 SPANISH Argentina

1

7120290BR

KIT, TRANSLATION S250 PORTUGUESE Brazil

1

7120291AR

KIT, DECAL Argentina

1

7120291BR

KIT, DECAL Brazil

1

7120291JP

KIT, DECAL Japan

2

6727926

DECAL, OPERATION hand & foot controls - not in kit

3

6734646

DECAL, WARNING selectable joystick controls - not in kit

4

6728539

DECAL

5

6734647

DECAL, OPERATION selectable joystick controls - not in kit

6

6737248

DECAL, WARNING selectable joystick control

7

7177808

DECAL, ROC 1134 kg (2500 lbs) - Was 6733924 - A

8

6737189

DECAL, WARNING backup alarm

9

6725370

DECAL 3-pt seat belt - Not In Kit

10

6718579

DECAL heater control - Not In Kit

11

6707852

DECAL, EXIT emergency

12

DECAL, SAFETY NLA - door sensor - Was 7110316 - A

13

6735140

DECAL, THROTTLE

14

6726423

DECAL, WARNING check before lifting

15

7117407

DECAL, FUSE inside fuse cover - 51 x 178 mm (2 x 7'')

16

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

17

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

18

6718706

DECAL, WARNING raising cab

19

6902600

HANDBOOK, OPERATOR'S W/wire rope - not in kit - Was 6718719 - B,D

19

6558309

WIRE ROPE bulk - sold per foot

19

6558310

SLEEVE wire rope

19

84G3112

BOLT 5

20

6708929

DECAL, COOLANT propylene glycol

21

6733996

DECAL, WARNING engine coolant - 14 psi

22

6734534

DECAL, SERVICE service checklist & schedule - Was 7124877 - A

23

6708941

DECAL, WARNING rotating parts

24

6726303

DECAL, OPERATION removeable rear window

25

6565200

DECAL, FILTER
