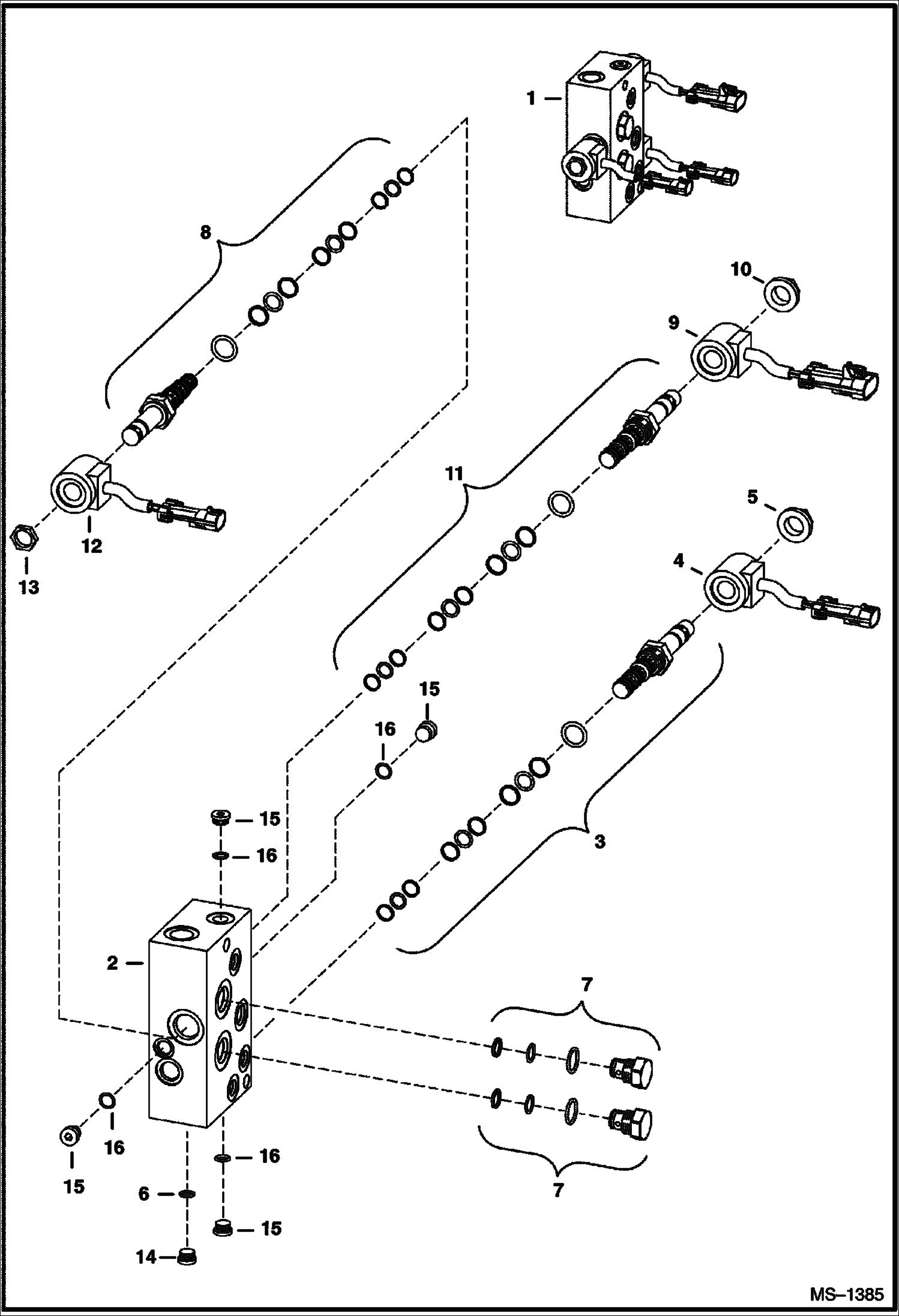

Запчасти Bobcat S-Series 2-SPEED VALVE HYDROSTATIC SYSTEM

1

6679102

VALVE assy.

2

BLOCK NSS - Order Ref. 1

3

6677982

CARTRIDGE make up valve - W/Ref. 5

3

6672756

KIT, SEAL

4

6676243

COIL

5

6668820

NUT

6

75K4

ORING

7

6675265

CHECK VALVE

7

6669087

SEAL KIT

8

6676239

SOLENOID VALVE two speed valve - W/Ref. 10

8

6673188

SEAL KIT

9

6676242

COIL

10

6677980

NUT

11

6680120

CARTRIDGE brake valve - W/Ref. 13

11

6676205

SEAL KIT

12

6676244

COIL

13

6676247

NUT

14

6672762

PLUG W/Ref. 6

15

6677177

PLUG W/Ref. 16

16

O-RING
