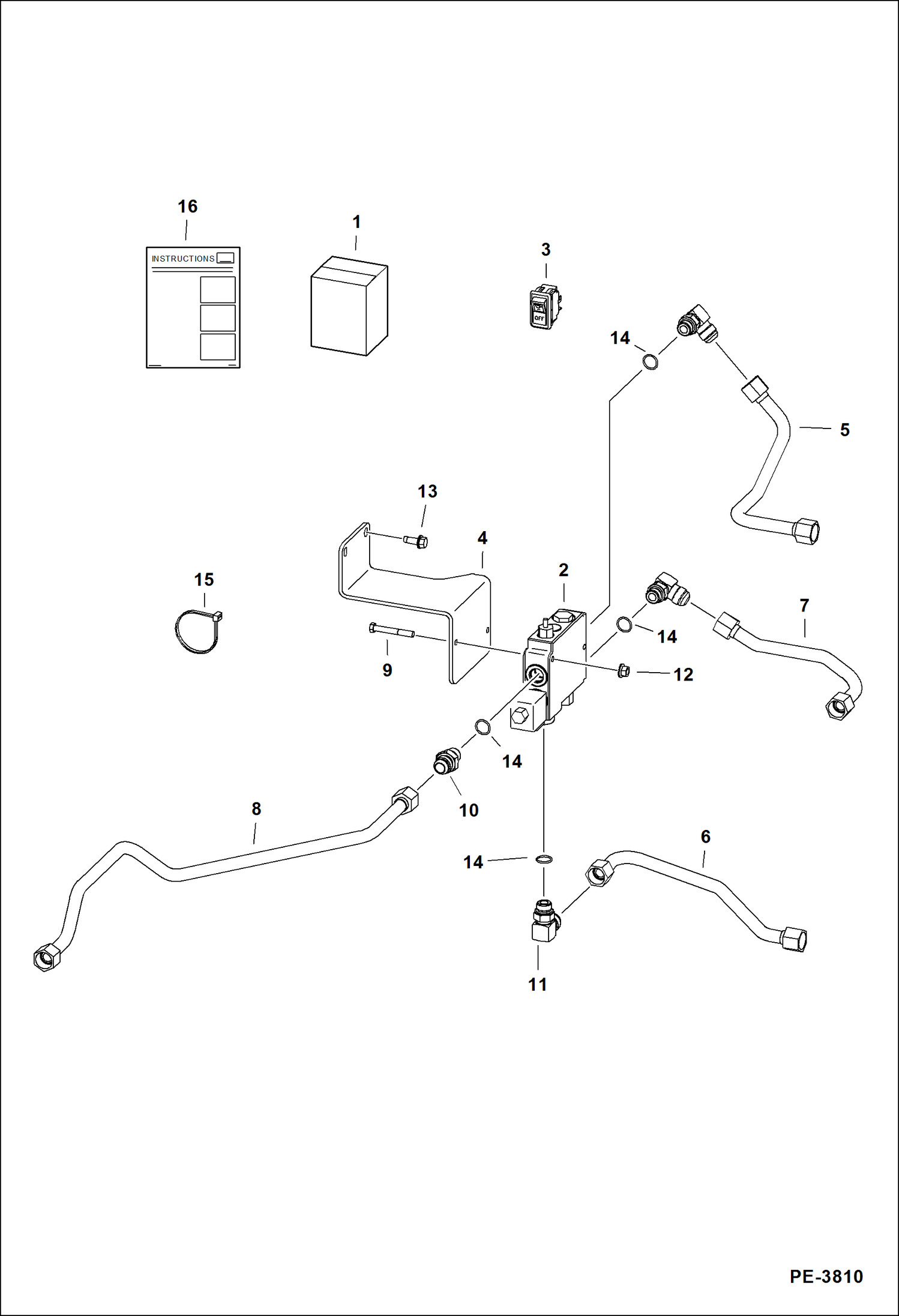

Запчасти Bobcat S-Series BUCKET POSITIONING KIT (S/N 526016000 & Above 526112000 & Above, 525815000 & Above, 525912000 & Above ACCESSORIES & OPTIONS

1

7104829

KIT Ref. 2-16

2

6675669

VALVE, BPV See Illustration BUCKET POSITIONING VALVE/ MS1943

3

6690947

SWITCH, BPV

4

6730898

MOUNT

5

6732991

TUBELINE

6

6732992

TUBELINE

7

7108458

TUBELINE

8

7114823

TUBELINE

9

17C540

BOLT

10

15KB1210

FITTING, HYD CONNECTOR W/Ref. 14

11

17KB1210

FITTING, HYD ELBOW W/Ref. 14

12

83D5

NUT 5

13

84G3716

SCREW 5

14

79K10

O RING 10

15

6624289

STRAP, TIE

16

6903132

INSTRUCTIONS
