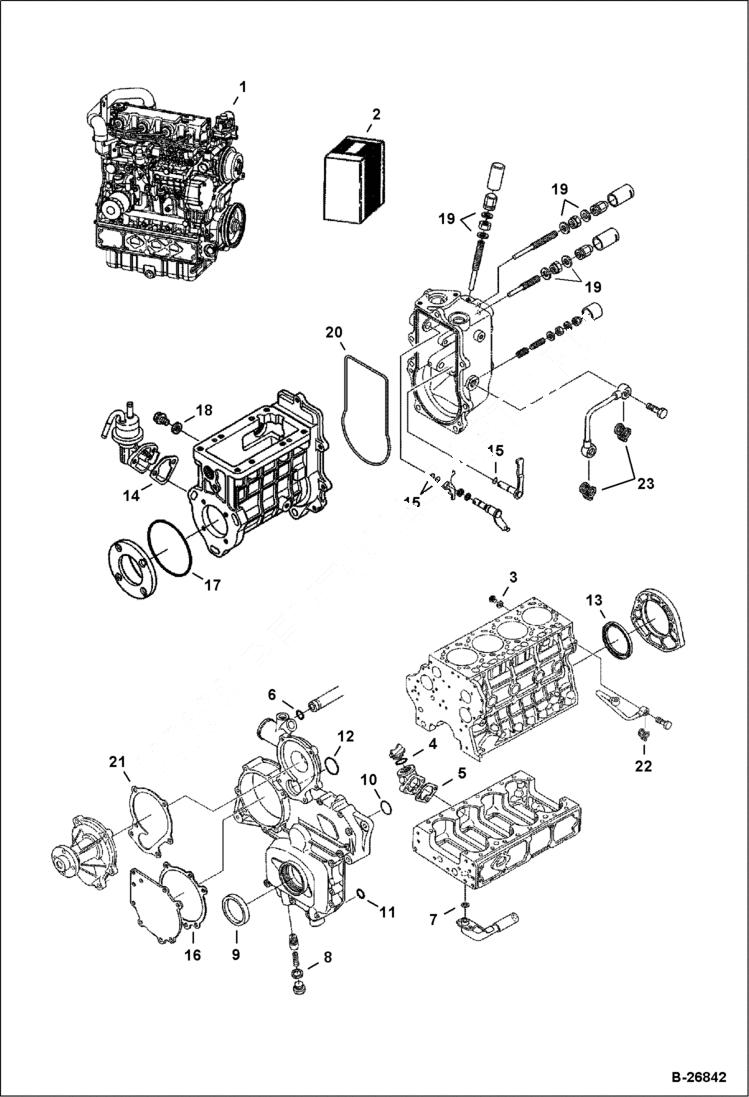

Запчасти Bobcat S-Series ENGINE & LOWER GASKET KIT (S/N 5260, 5261, 5258 & 5259) (V3300 DI T Kubota) (Tier II) POWER UNIT

1

6684576

ENGINE, V3300-DI-T-E2CB-BOB2 74.9 HP - IG-578-00000 - complete - includes turbocharger, fuel injection pump, intake & exhaust manifolds

1

6684576REM

ENG, KUBOTA V3300T DI-E2CB-BOB2 TIER 2 74.9 HP - does not include turbo

1

6684577

ENGINE, V3300-DI-T-E2CB-BOB1 80.8 HP - IG-577-00000 - complete - includes turbocharger, fuel injection pump, intake & exhaust manifolds

1

6684577REM

ENG, KUBOTA V3300T DI-E2CB-BOB1 TIER 2 80.8 HP - does not include turbo

2

6689755

KIT, GASKET ENG LOWER lower gasket- Ref 3-23

3

6652751

GASKET See Illustration PISTON & CRANKSHAFT/ B22922

4

6684782

O-RING See Illustration OIL PAN/ NA6302 - oil fill plug - Was 3966602 - A

5

6685923

GASKET See Illustration OIL PAN/ NA6302 - oil filler flange

6

6685971

O-RING See Illustration OIL PAN/ NA6302

7

6680661

O-RING See Illustration OIL PAN/ NA6302

8

6670347

GASKET See Illustration FRONT COVER/ B22924

9

6680680

SEAL See Illustration FRONT COVER/ B22924 - front crankshaft

10

6680681

O-RING See Illustration FRONT COVER/ B22924

11

6680682

O-RING See Illustration FRONT COVER/ B22924

12

6680855

O-RING See Illustration FRONT COVER/ B22924

13

6680705

SEAL See Illustration FRONT COVER/ B22924 - rear crankshaft

14

6670782

GASKET See Illustration FUEL INJECTION SYSTEM/ B26805 - fuel pump

15

6683023

O-RING See Illustration GOVERNOR/ B26807

16

6685948

GASKET See Illustration FUEL INJECTION SYSTEM/ B26805 - front cover

17

6680816

O-RING See Illustration FUEL INJECTION SYSTEM/ B26805

18

3974095

MET-GASK See Illustration FUEL INJECTION SYSTEM/ B26805 - copper

19

3974972

GASKET See Illustration GOVERNOR/ B26806

20

6680829

GASKET See Illustration FUEL INJECTION SYSTEM/ B26805 - governor housing

21

6680853

GASKET See Illustration WATER PUMP/ B22926 - water pump

22

6689331

GASKET See Illustration TURBOCHARGER/ MS1475 - one piece aluminum

23

7000642

WASHER, SEALING COPPER See Illustration GOVERNOR/ B26806 - oil pipe - Was 6685962 - B
