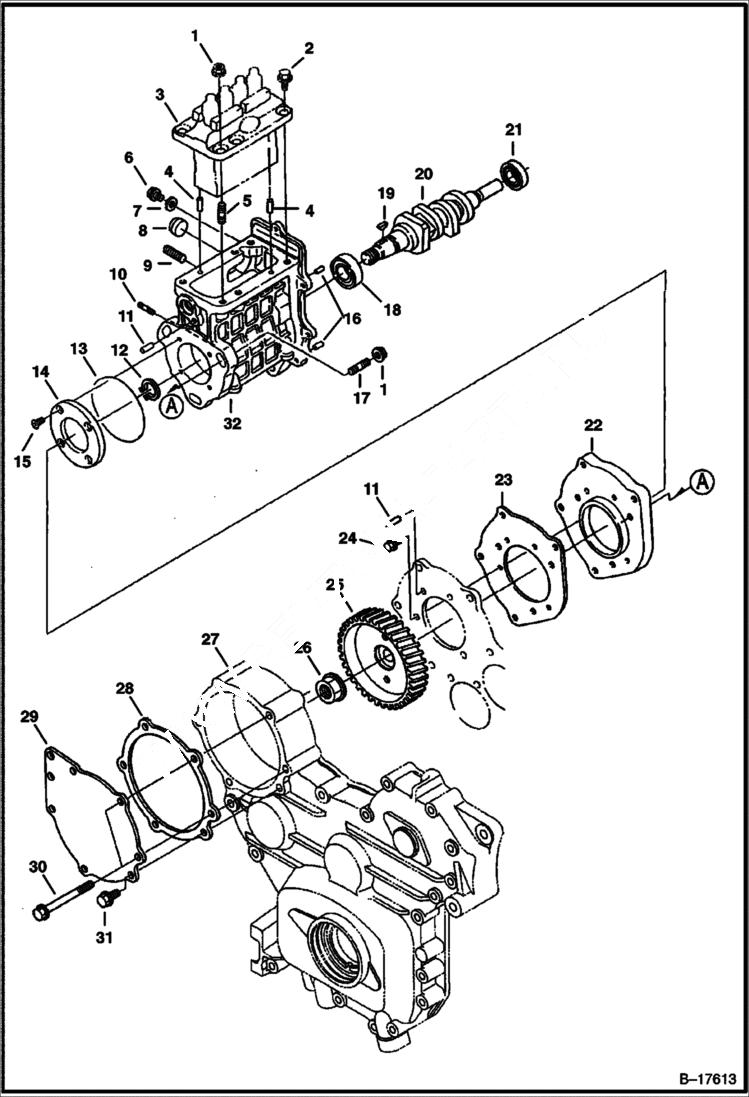

Запчасти Bobcat S-Series FUEL INJECTION SYSTEM (S/N 5213, 5214, 5215, 5216) (V3300 DI T Kubota) (Tier I) POWER UNIT

1

6680663

NUT

2

6680755

BOLT

3

INJECTION PUMP See Illustration FUEL INJECTION PUMP/ B17614

4

3974394

PIN

5

6680807

STUD

6

6680662

BOLT

7

3974095

MET-GASK copper - Was 6680792 - A

8

6680808

PLUG

9

6680815

SET SCREW

10

3974503

STUD

11

21JM614

PIN

12

5JM20

CIRCLIP, EXTERNAL

13

6680816

O-RING

14

6680814

FLANGE

15

6680678

SCREW

16

6680809

PIN

17

6680799

STUD

18

6680811

BEARING

19

6680813

KEY woodruff

20

6680810

CAMSHAFT fuel

21

6680812

BEARING

22

6680798

COVER

23

6680800

GASKET

24

6680803

BOLT

25

6680817

GEAR

26

6680818

NUT

27

FRONT COVER See Illustration FRONT COVER/ B17609

28

6680805

GASKET

29

6680804

COVER

30

6680802

BOLT

31

6680801

BOLT

32

6680806

HOUSING W/Ref. 4, 5, 8, 10 & 16
