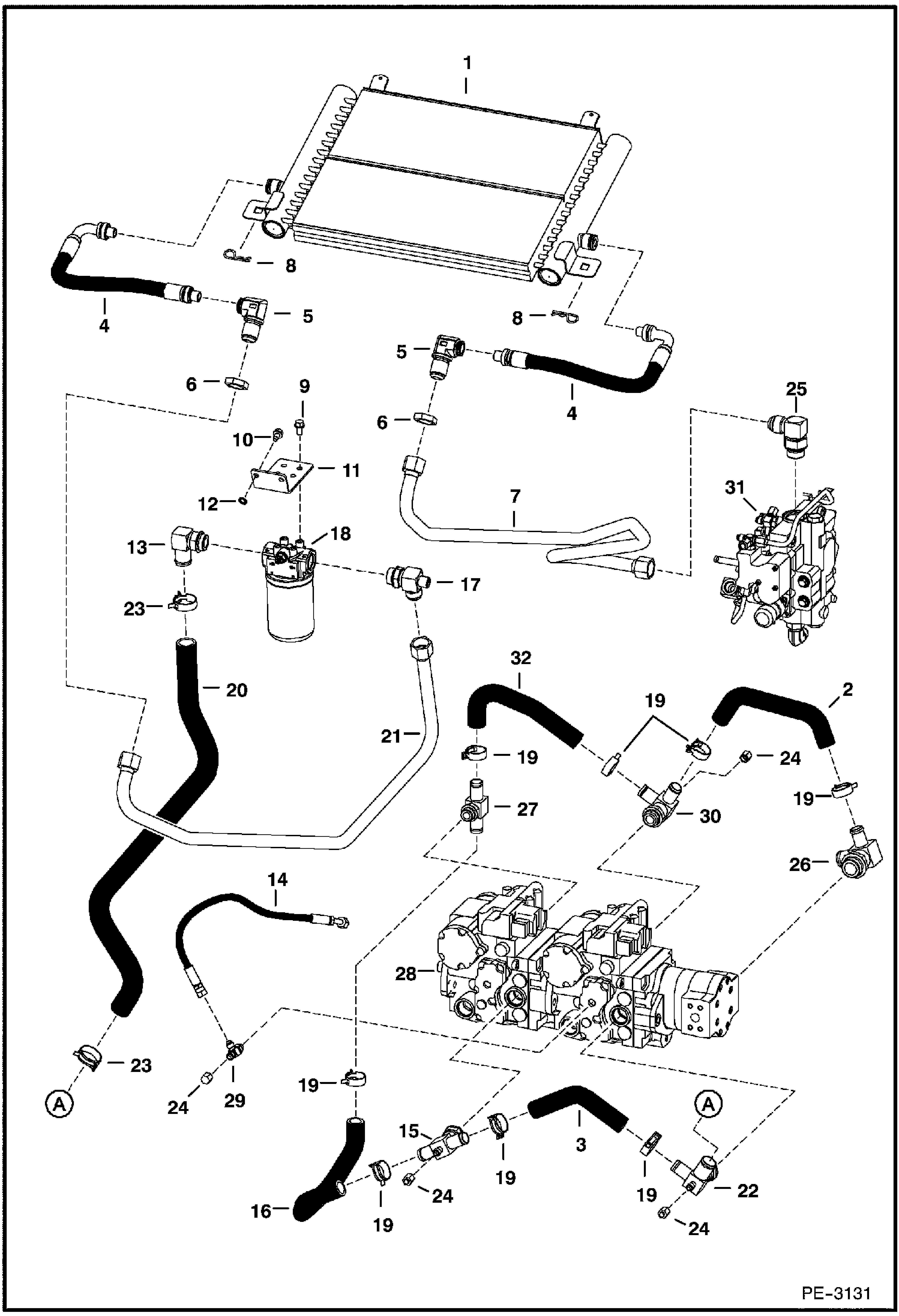

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Cooler) (W/SJC) (S/N 526016000, 526112000, 525815000, 525912000 & Above) HYDROSTATIC SYSTEM

1

6684921

COOLER oil - female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

1

6681501

SEAL KIT

1

7103750

EXCHANGER, OIL COOLER See BTI391 oil - female -16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

1

6688523

SEAL KIT STC-16

2

6736417

HOSE

3

6729478

HOSE

4

6683276

HOSE -12 STC connector .82'' (20,8 mm) O.D.

4

6681501

SEAL KIT

4

7103751

HOSE male -16 STC connector 1.06'' (26,9 mm) O.D.

4

6688523

SEAL KIT STC-16

5

6678970

ELBOW female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

5

6690950

O-RING

5

6681501

SEAL KIT

5

7103749

ELBOW female - 16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

5

6690950

O-RING

5

6688523

SEAL KIT STC-16

6

86F10

NUT

7

6735861

TUBELINE

8

1318565

COTTER PIN

9

35C612

BOLT

10

84G3710

SCREW

11

7103903

MOUNT

12

6E6

WASHER

13

6697791

ELBOW Was 6729306 - B

13

79K16

O RING 10

14

6717921

HOSE

15

6736405

TEE

15

79K16

O RING 10

16

6736415

HOSE

17

6731527

TEE

17

79K16

O RING 10

18

6678155

FILTER ASSY

18

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

19

5HM35

HOSECLAMP

20

6736414

HOSE

21

7103170

TUBELINE

22

6736406

TEE

22

79K16

O RING 10

23

5HM42

HOSECLAMP

24

36K5

CAP

25

6813964

ELBOW

25

79K16

O RING 10

25

58K022

O-RING 10

26

6736408

TEE

26

79K20

O RING 10

27

6736407

TEE

27

79K16

O RING 10

28

PUMP See Illustration HYDROSTATIC PUMP/ B26305 See Illustration HYDROSTATIC PUMP/ B26304

29

21KB0606

FTG HYD STRAIGHT TEE

29

79K6

O RING 10

30

6726992

TEE

30

79K16

O RING 10

31

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378

32

6736416

HOSE
