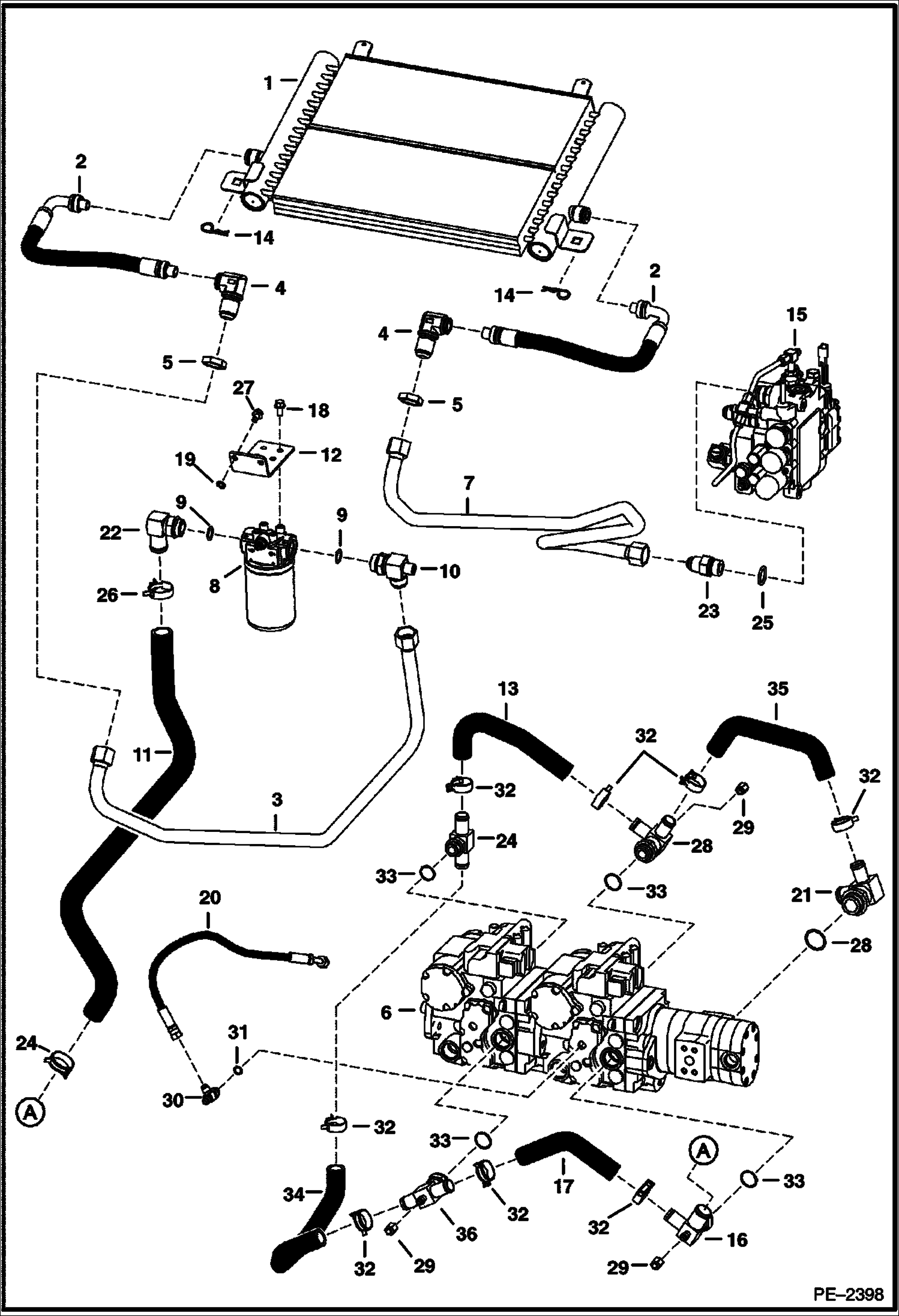

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Cooler)(W/SJC)(S/N 521313913, 521411181, 521512100, 521611030 & Abv) (S/N 526011001-15999, 526111001-11999, 525811001-14999, 525911001-11999) HYDROSTATIC SYSTEM

1

6684921

COOLER oil - female -12 STC connector

1

6681501

SEAL KIT

1

7103750

EXCHANGER, OIL COOLER See BTI391 oil - female -16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

1

6688523

SEAL KIT STC-16

2

6684457

HOSE, HYD ASSY STC male -12 STC connector .82'' (20,8 mm) O.D.

2

6681501

SEAL KIT

2

7103751

HOSE male -16 STC connector 1.06'' (26,9 mm) O.D.

2

6688523

SEAL KIT STC-16

3

6731111

TUBELINE

3

6681501

SEAL KIT

4

6678970

ELBOW female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

4

6690950

O-RING

4

6681501

SEAL KIT

4

7103749

ELBOW female - 16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

4

6690950

O-RING

4

6688523

SEAL KIT STC-16

5

86F10

NUT

6

PUMP See Illustration HYDROSTATIC PUMP/ D2427 See Illustration HYDROSTATIC PUMP/ B17765

7

6731110

TUBELINE

8

6678155

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

8

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

9

79K12

O RING 10

10

6731527

TEE W/Ref. 9

10

6674798

REPAIR KIT internal retaining ring (1), back-up washer (1) & O-ring (1)

11

6736414

HOSE

12

6719446

MOUNT

13

6736416

HOSE

14

1318565

COTTER PIN

15

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1600

16

6736406

TEE W/Ref. 33

17

6729478

HOSE

18

35C612

BOLT

19

6E6

WASHER

20

6717921

HOSE

21

6736408

TEE W/Ref. 33

22

6697791

ELBOW W/Ref. 9 - Was 6729306 - B

23

15KB1612

FITTING, HYD CONNECTOR W/Ref. 25 - Was 6715878 - A

24

6736407

TEE W/Ref. 33

25

79K12

O RING 10

26

5HM42

HOSECLAMP

27

84G3710

SCREW

28

6726992

TEE W/Ref. 33

29

36K5

CAP

30

17KB0606

FITTING W/Ref. 31

31

79K6

O RING 10

32

5HM35

HOSECLAMP

33

79K16

O RING 10

34

6736415

HOSE

35

6736417

HOSE

36

6736405

TEE W/Ref. 33
