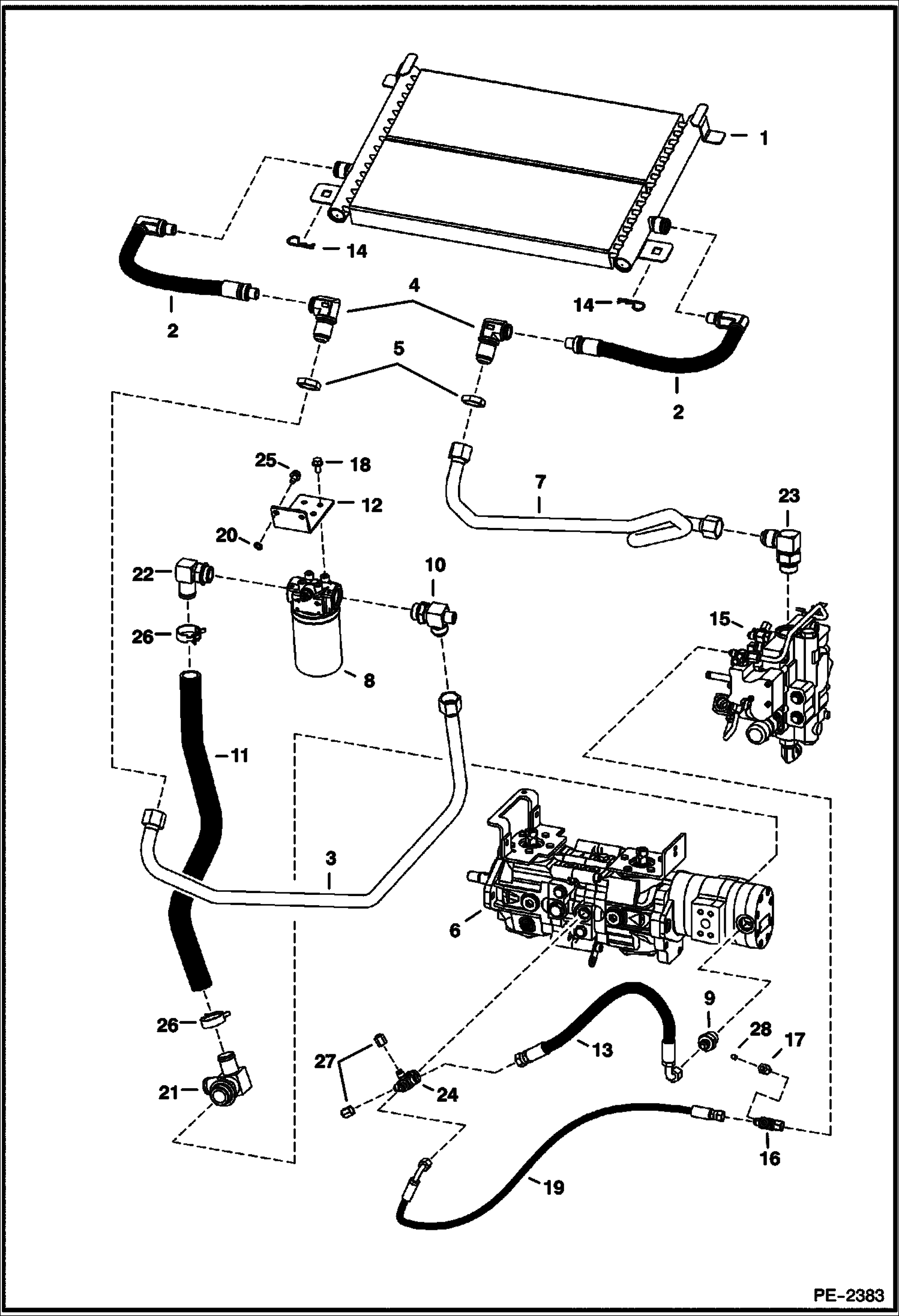

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Cooler) (Manual Controls) (S/N 526016000, 526112000, 525815000, 525912000 & Above) HYDROSTATIC SYSTEM

1

6678156

COOLER See BTI391 oil - female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

1

6681501

SEAL KIT

1

7103750

EXCHANGER, OIL COOLER See BTI391 oil - female -16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

1

6688523

SEAL KIT STC-16

2

6684457

HOSE, HYD ASSY STC male -12 STC connector .82'' (20,8 mm) O.D.

2

6681501

SEAL KIT

2

7103751

HOSE male -16 STC connector 1.06'' (26,9 mm) O.D.

2

6688523

SEAL KIT STC-16

3

7103170

TUBELINE

4

6678970

ELBOW female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

4

6690950

O-RING

4

6681501

SEAL KIT

4

7103749

ELBOW female - 16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

4

6690950

O-RING

4

6688523

SEAL KIT STC-16

5

86F10

NUT

6

PUMP

7

6735861

TUBELINE

8

6678155

FILTER ASSY

8

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

9

15KB0812

FITTING, HYD CONNECTOR

9

79K12

O RING 10

10

6731527

TEE

10

79K12

O RING 10

10

6674798

REPAIR KIT internal retaining ring (1), back-up washer (1) & O-ring (1)

11

6731923

HOSE

12

7103903

MOUNT filter

13

6731935

HOSE

14

1318565

COTTER PIN

15

VALVE control

16

6736258

TEE

17

6718948

SNUBBER W/Ref. 28

18

35C612

BOLT

19

6628810

HOSE

20

6E6

WASHER

21

6732586

TEE

21

79K20

O RING 10

22

6697791

ELBOW Was 6729306 - B

22

79K12

O RING 10

23

6813964

ELBOW 90 degree

23

79K16

O RING 10

23

58K022

O-RING 10

24

6731925

TEE

24

79K10

O RING 10

25

84G3710

SCREW

26

5HM42

HOSECLAMP

27

36K5

CAP

28

6675278

FILTER
