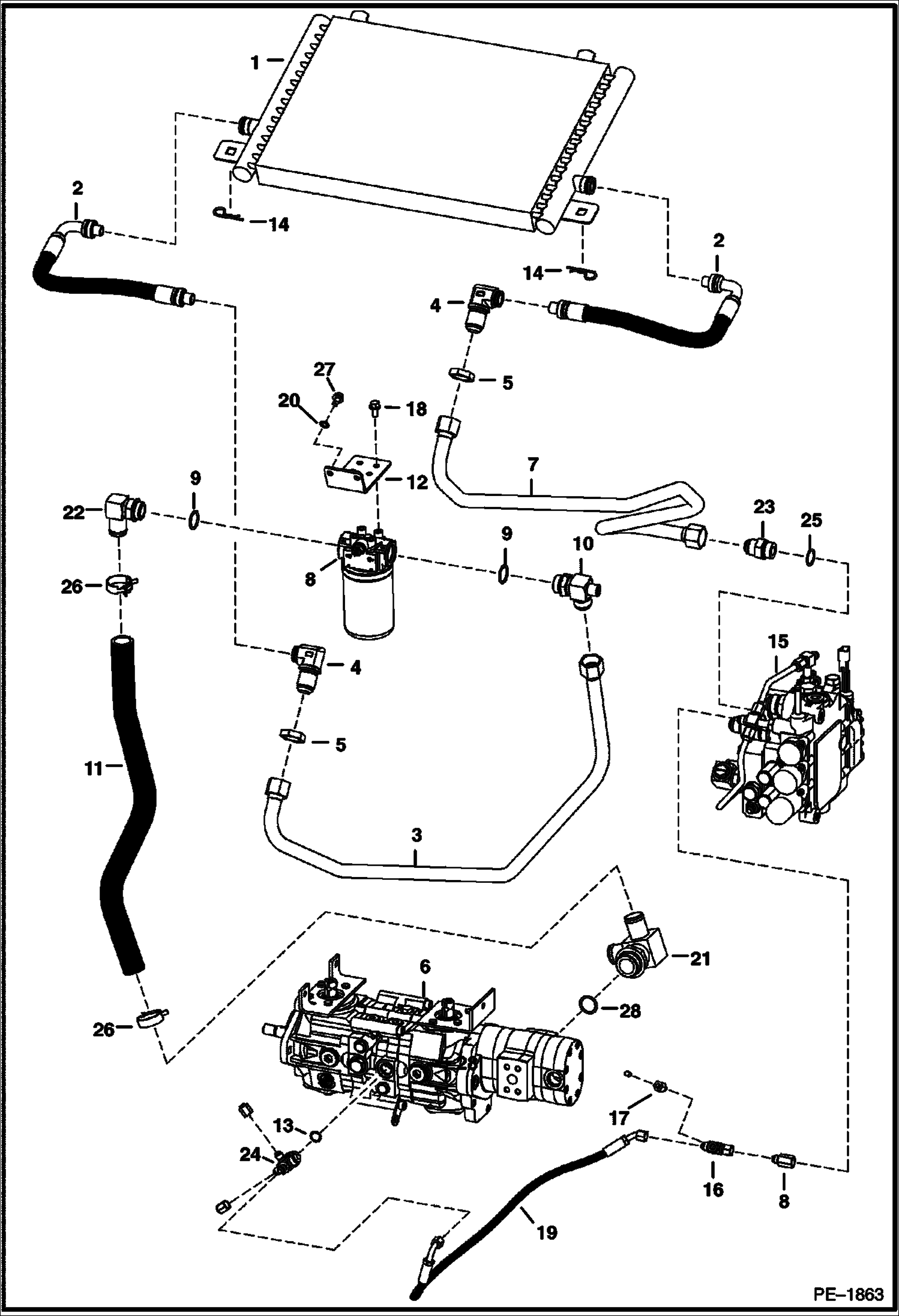

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Cooler)(Manual Controls)(521313913, 521411181, 521512100, 521611030 & Abv)(S/N 526011001-15999,526111001-11999, 525811001-14999, 525911001-11999) HYDROSTATIC SYSTEM

1

6678156

COOLER See BTI391 oil - female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

1

6681501

SEAL KIT

1

7103750

EXCHANGER, OIL COOLER See BTI391 oil - female -16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

1

6688523

SEAL KIT STC-16

2

6684457

HOSE, HYD ASSY STC male -12 STC connector .82'' (20,8 mm) O.D. - Was 6678969 - A

2

6681501

SEAL KIT

2

7103751

HOSE male -16 STC connector 1.06'' (26,9 mm) O.D.

2

6688523

SEAL KIT STC-16

3

6731111

TUBELINE

3

6681501

SEAL KIT

4

6678970

ELBOW female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

4

6690950

O-RING

4

6681501

SEAL KIT

4

7103749

ELBOW female - 16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

4

6690950

O-RING

4

6688523

SEAL KIT STC-16

5

86F10

NUT

6

PUMP See Illustration HYDROSTATIC PUMP/ D2427 See Illustration HYDROSTATIC PUMP/ B17765

7

6731110

TUBELINE

8

6678155

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

8

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

9

79K12

O RING 10

10

6731527

TEE W/Ref. 9

10

6674798

REPAIR KIT internal retaining ring (1), back-up washer (1) & O-ring (1)

11

6731923

HOSE

12

6719446

MOUNT

13

79K10

O RING 10

14

1318565

COTTER PIN

15

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1935

16

6718660

TEE

16

6736258

TEE

17

6563922

SNUBBER 1/8'' pipe thread

17

6718948

SNUBBER 3/8'' UNF thread

18

35C612

BOLT

19

6725090

HOSE

19

6628810

HOSE

20

6E6

WASHER

21

6732586

TEE W/Ref. 28 - Was 6733846 - B

22

6697791

ELBOW W/Ref. 9 - Was 6729306 - B

23

15KB1612

FITTING, HYD CONNECTOR W/Ref. 25 - Was 6715878 - A

24

6731925

TEE W/Ref. 13

25

79K12

O RING 10

26

5HM42

HOSECLAMP

27

84G3710

SCREW

28

79K20

O RING 10 Was 79K000016B - B
