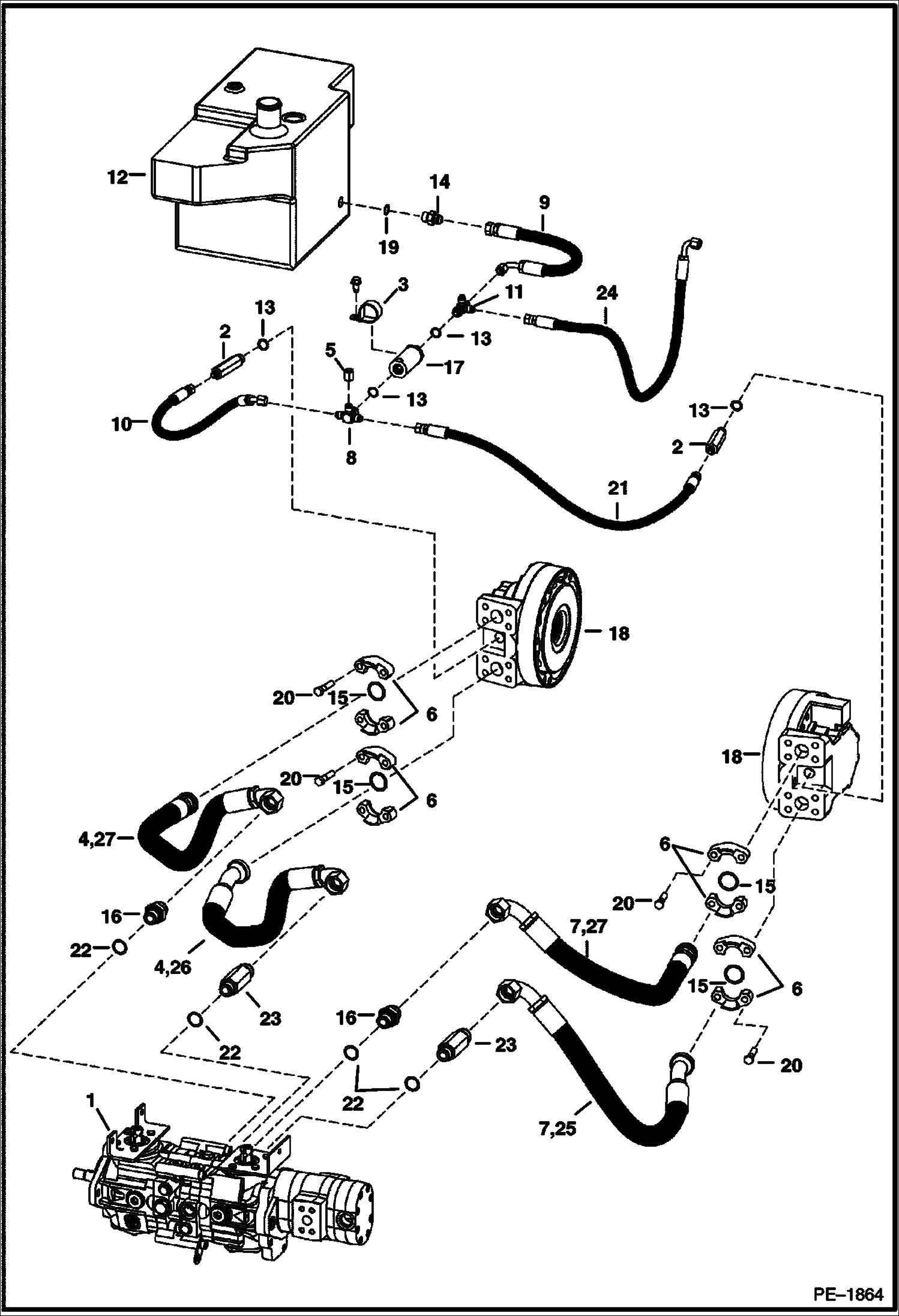

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Motors) (S/N 521313913, 521411181, 521512100, 521611030 & Above) (526011001-15999, 526111001-11999, 525811001-14999, 525911001-11999) HYDROSTATIC SYSTEM

1

PUMP See Illustration HYDROSTATIC PUMP/ D2427 See Illustration HYDROSTATIC PUMP/ B17765

2

6717306

ADAPTER W/Ref. 13

3

30H79

CLAMP Was 30H000060B - B

4

6673954

HOSE mega seal - manual controls

5

36K5

CAP

6

20J16

FLANGE

7

6679141

HOSE 33'' (838,2 mm) long - mega seal - manual controls - Was 6680014 - A

8

6725497

CROSS W/Ref. 13

9

6733219

HOSE

10

6732484

HOSE

11

6718031

TEE W/Ref. 13

12

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE2675 hydraulic

13

79K6

O RING 10

14

15KB0808

FITTING, HYD CONNECTOR W/Ref. 19

15

55K219

O'RING

16

15KB1612

FITTING, HYD CONNECTOR W/Ref. 22

17

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR/ B17125

19

79K8

O RING 10

20

17C728

BOLT

21

7126010

HOSE Was 6732485 - A

22

79K12

O RING 10

23

6716243

ADAPTER W/Ref. 22

24

6732483

HOSE

25

6679138

HOSE AHC/ACS/SJC

26

6679139

HOSE AHC/ACS/SJC

27

6679140

HOSE AHC/ACS/SJC
