Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Tank) (W/Manual Controls) (S/N 521313856-13912, 521411180, 521512066-12099 & 521611029) HYDROSTATIC SYSTEM

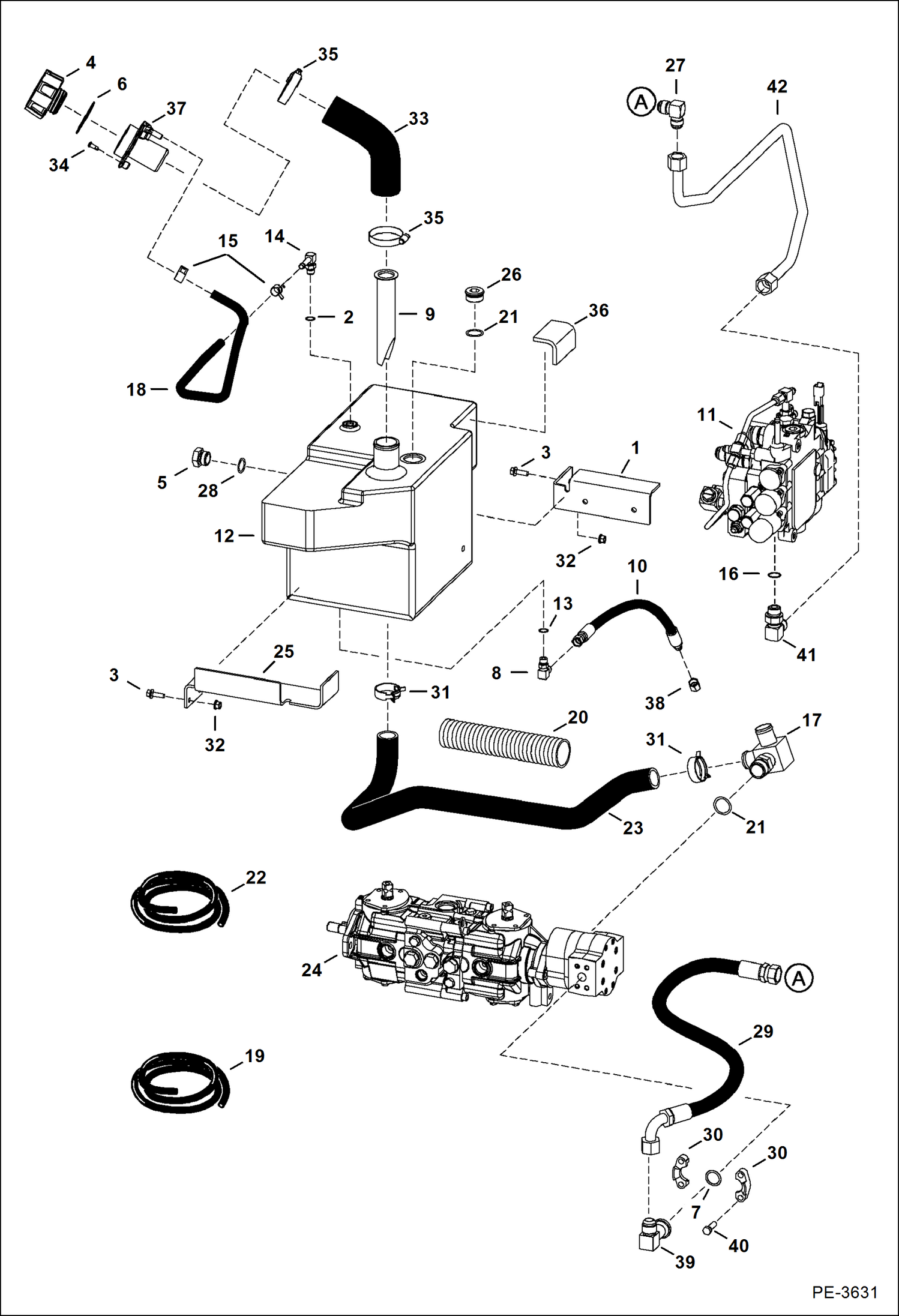

Схема запчастей Bobcat S-Series - HYDROSTATIC CIRCUITRY (W/Tank) (W/Manual Controls) (S/N 521313856-13912, 521411180, 521512066-12099 & 521611029) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6718851

BRACKET

2

79K6

O RING 10

3

35C516

BOLT 10

4

6727475

CAP, OIL HYD breather & fill - Also Order Ref. 6

5

6665915

GAUGE sight - W/Ref. 28

5

6734563

WASHER KIT washer & o-ring

5

6734561

WASHER

5

25K30118

O RING 10

6

6700631

GASKET

7

55K214

O-RING

8

17KB0606

FITTING tapered boss face - W/Ref. 13 - Was 17KV00005B - A

8

97K6

O RING flared end

9

7120881

SCREEN, FILLER Was 6569219 - A

10

7106212

HOSE Was 6537040 - A

11

VALVE

12

6731209

TANK hydraulic

13

99K6

O RING tapered boss face

14

6727313

ELBOW

15

5HM15

CLAMP

16

79K12

O RING 10

17

6730126

TEE W/Ref. 21 - tapered boss face - W/ nipple for Aux. case drain

17

97K6

O RING flared end

17

6733846

TEE W/Ref. 21 - flat boss face - W/O nipple

18

HOSE NLA - 23'' (584mm) long - Order Ref. 19

19

6586251

HOSE Bulk - sold per foot

20

SHIELD NLA - 10'' (254mm) long - Order Ref. 22

21

99K16

O-RING tapered boss face

21

79K16

O RING 10 flat boss face

22

6705749

SHIELD bulk - sold per foot

23

6731496

HOSE

24

PUMP

25

6718850

BRACKET

26

47K10

PLUG W/Ref. 21 - for the tank flushing hole

27

77F8

ELBOW

28

99K6

O RING flat boss face

29

6736649

HOSE, HYD ASSY 33.50'' (850.9 mm) long - Was 6729160 - A

30

19J12

CLAMP

31

5HM42

HOSECLAMP

32

83D5

NUT 5

33

6731638

HOSE

34

6706517

SCREW

35

42HL250

CLAMP

36

6578278

PAD

37

6727354

INLET

38

36K5

CAP

39

7103952

TEE split flange - W/hole for rear aux. pilot pressure - Was 6734048 - A

39

90KV5

PLUG W/Ref. 2 - tapered boss face

39

24K5

PLUG W/Ref. 2 - flat boss face

40

17C620

BOLT

41

17KB1212

FITTING, HYD ELBOW W/Ref. 16

42

6735295

TUBELINE

Выбрано товаров: 51
